Yorkville NX10C-2 500W 10-Inch Active Loudspeaker Outlet Marketable

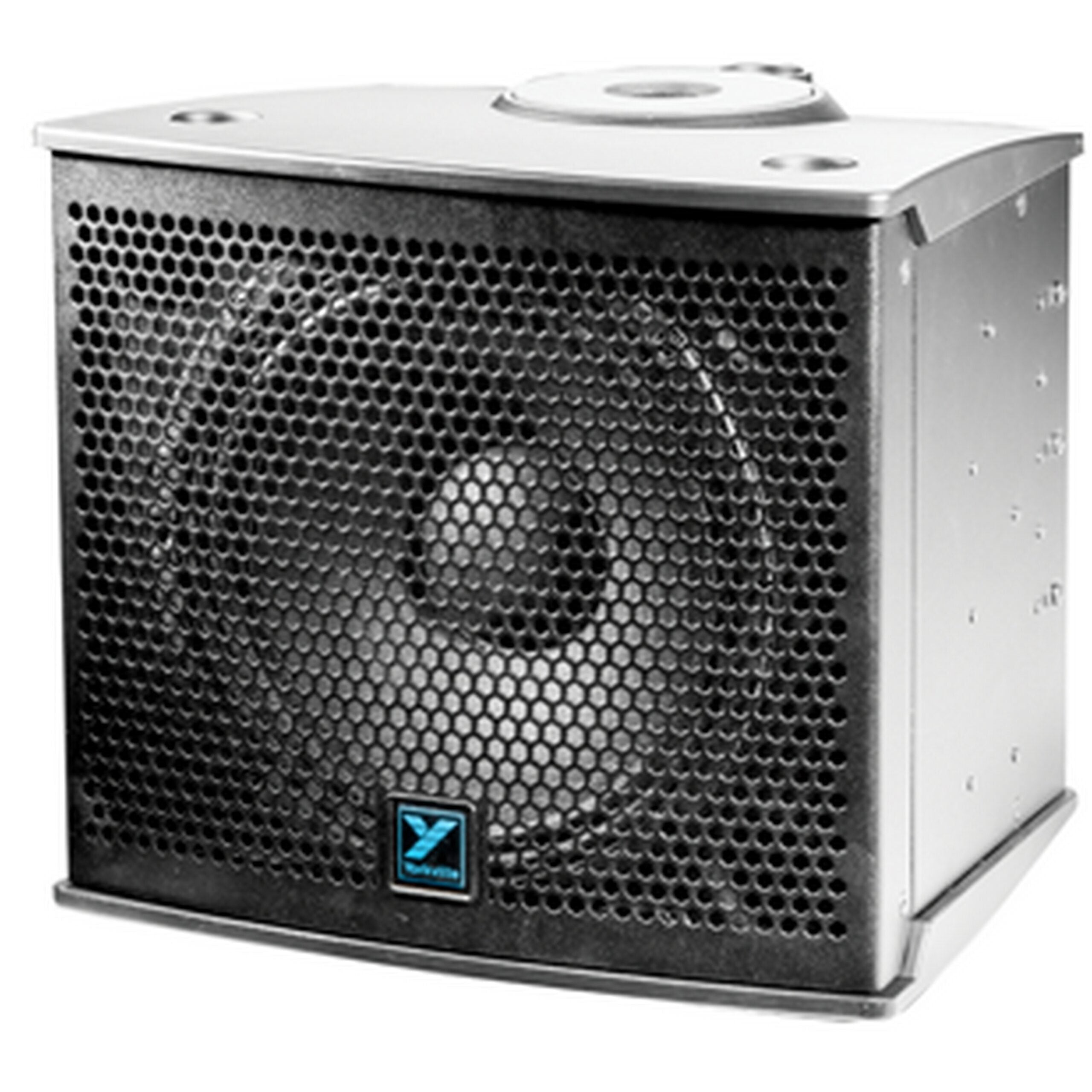

Yorkville NX10C-2 500W 10-Inch Active Loudspeaker

No need to bring separate stands for stage lighting and speakers when NX10C-2’s can be mounted under the light bars, saving valuable stage space.

For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet.

Versatile inputs for mic or line level sources as well as a 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source.

Key Features

• No need to bring separate stands for stage lighting and speakers when NX10C-2’s can be mounted under the light bars, saving valuable stage space.
• For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.
• The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet.
• Versatile inputs for mic or line level sources as well as a 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source.
• Made in Canada

Technical Specifications

Active or Passive
Active
Power Rating (Watts)
500 Watts (1200 Watts Peak)
Biampable
Self-Powered
Max SPL (dB)
127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB)
80Hz – 20kHz
Crossover Frequency (Hz)
2500Hz
Driver Configuration
Coaxial 10-inch/1-inch
HF Driver(s)
1-inch Throat, Ceramic Magnet, 1.4-inch PETP Film
HF Dispersion (Degrees H x Degrees V)
60 x 60
LF Driver(s)
10-inch Ceramic Magnet with a 2.5” voice coil
HF Amplifier Type
Class A/B
LF Amplifier Type
3 Tier Class- H
Power Cable
Yes
Power Switch
Yes
Power Consumption (typ/max)
120 / 310 VA
Inputs
3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4” inputs are parallel
Input Sensitivity (Vrms Sine)
1.23 Vrms, +4dBu
Mixer Controls
EQ (Playback/Bright)
Level Controls
Line/Mic
Limiter
Yes
LED Indicators
Power, Clip
Feet
Yes
Pole Mount Adapter (1 3/8”-3.5cm)
Pole Through
Enclosure Materials
Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Grille
Perforated Steel
Dimensions (DWH xbackW, inches)
13 X 13.5 X 12
Dimensions (DWH xbackW, cm)
33 x 34.3 x 30.5
Weight (lbs/kg)
25 / 11.3
