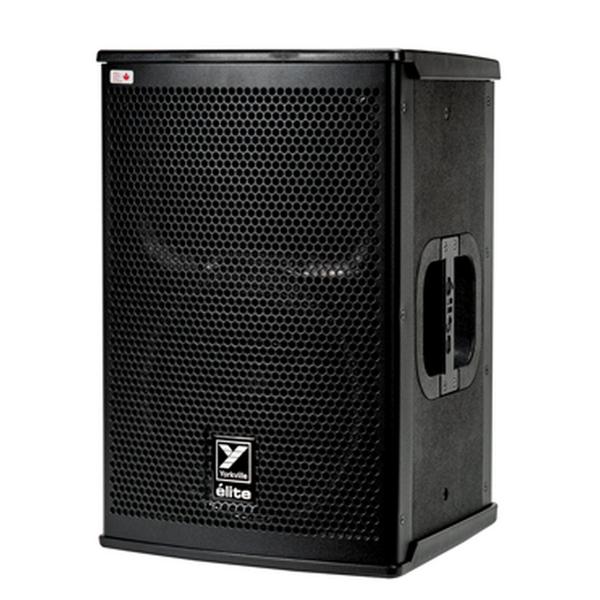

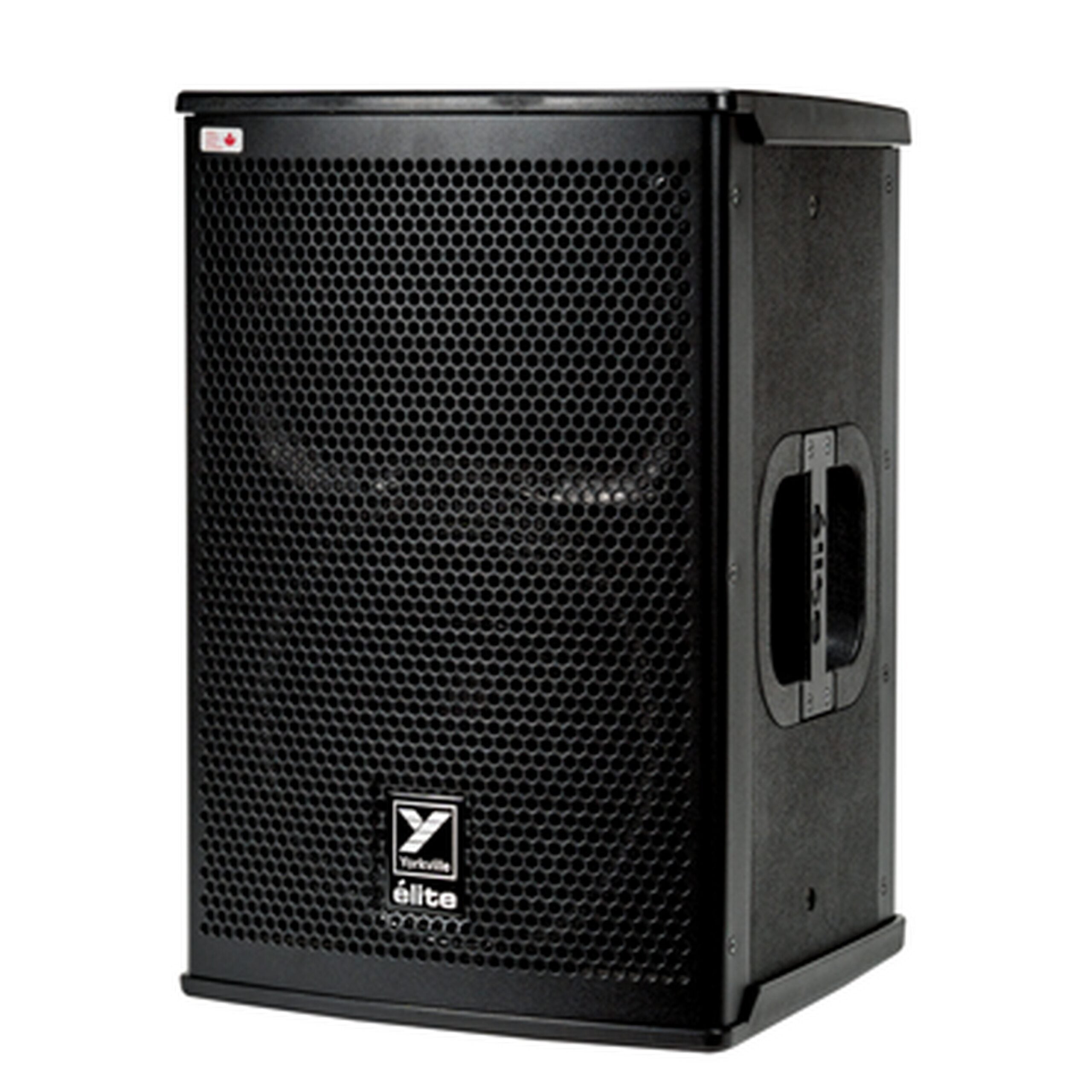

Yorkville EF10P 600-Watts 10-Inch Powered Full Range Loudspeaker

In the 1980’s, Yorkville Sound changed the face of high-powered portable speakers with the launch of the lite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.

Key Features

• Completely Redesigned Next Generation lite 600-watt Front of House Box
• ABS Coated Birch Plywood Cabinet Construction
• Multiband DSP Limiting with 4 Playback Performance Modes
• 1.5-inch Titanium Diaphragm Compression Driver
• 10-inch Neodymium Woofer with 2.5-inch Voice Coil
• iOS and Android App for Added Cabinet Control
• Made in Canada

Technical Specifications

System Type
2-Way
Active or Passive
Active
Program Power (Watts)
600 Watts (1200 Watts Peak)
Max SPL (dB)
129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB)
48 – 20k (Hz +/- 3dB)
Crossover Frequency (Hz)
1400
Driver Configuration
LF – 10-inch, HF – 1.5-inch Diaphragm
HF Driver(s)
1.5 Inch Voicecoil (Titanium Diaphragm)
HF Dispersion (deg. H x deg. V)
90×30
LF Driver(s)
10-inch neo magnet w/2.5-inch Voice coil
HF Power Amplifier (Watts)
100
HF Amplifier Type
2-Tier High Headroom
LF Power Amplifier (Watts)
500
LF Amplifier Type
Class-D
Power Cable
25 ft (7.6m) Heavy Gauge Detachable IEC
In / Out Connections
1 x XLR & 1/4-inch Combi-jack, 1/8″ Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput
Input Impedance (Bal/UnBal)
95KOhms / 90kOhms
Input Sensitivity (Vrms Sine)
+4dBv / 1.23V
Controls
Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level
Bar Handles
1 x Side / 1 x Top
Flypoints
8 x 1/4-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)
Pole Mount Adapter (1 3/8″-3.5cm)
1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials
ABS Coated Baltic Birch Plywood
Dimensions (DWH xbackW, inches)
13 x 13.7 x 20 x (Back Width) 11.1
Dimensions (DWH xbackW, cm)
33 x 34.8 x 50.8 x (Back Width) 28.2
Weight (lbs/kg)
43 / 19.5
