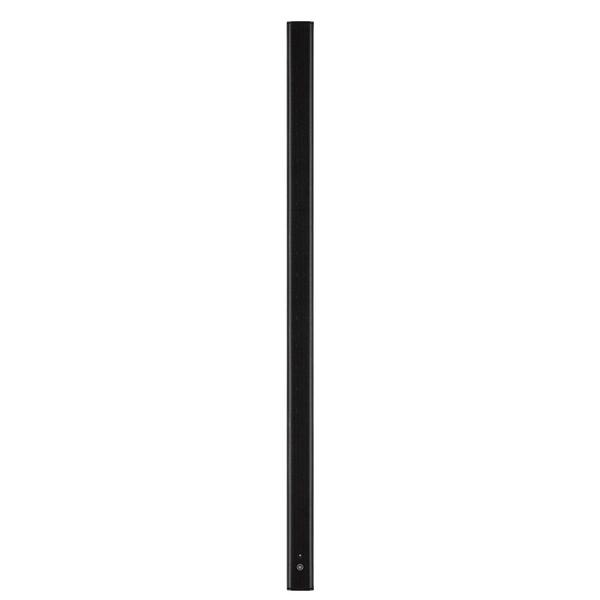

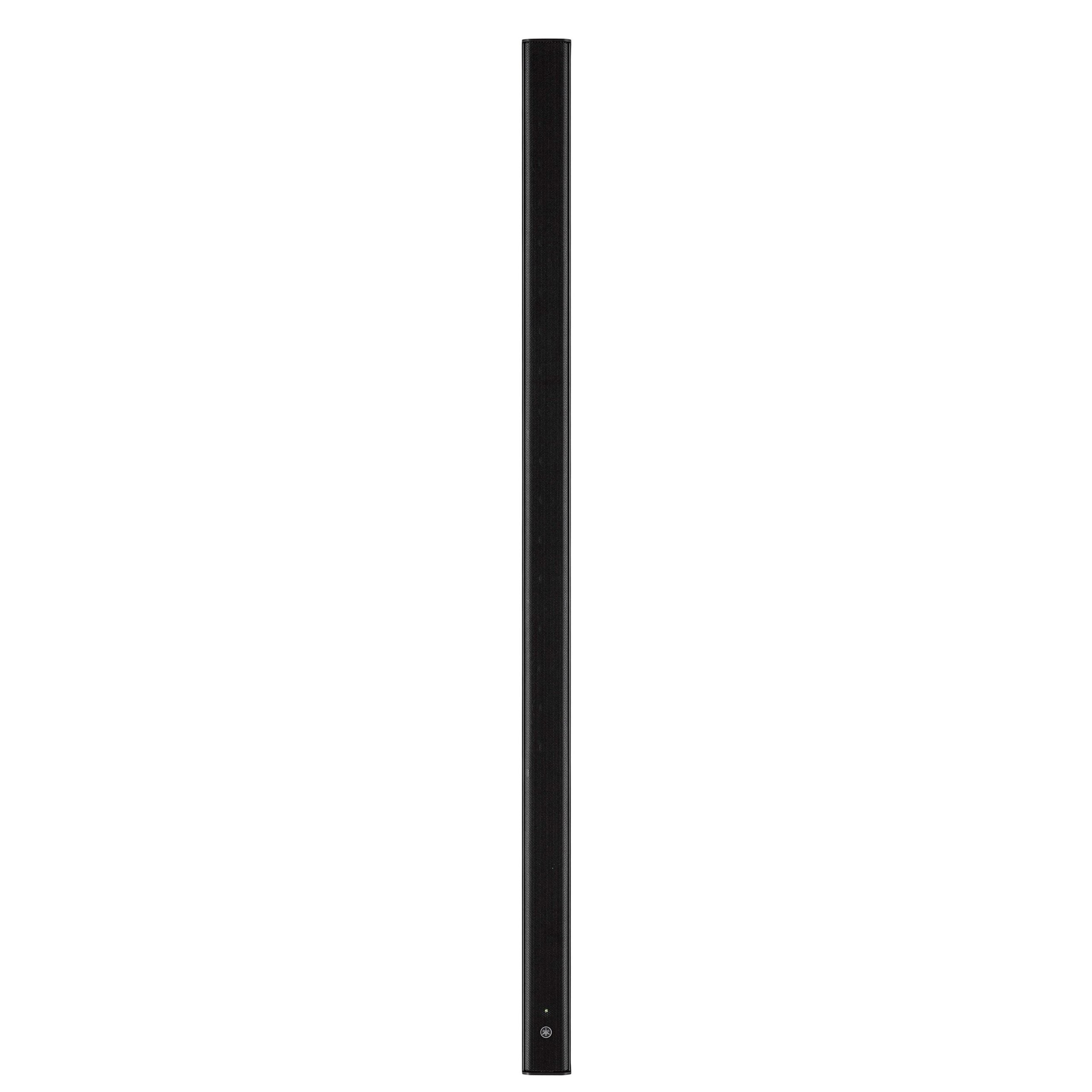

Yamaha VXL1B-16P 16 Full-Range 1.5-Inch Driver Dante PoE Powered Speaker

Dante PoE powered speaker with 16 x 1.5″ drivers

Key Features

• 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
• Slim design complements any interior decor
• Available in black or white
• Enclosures can be painted to match surroundings
• Wall mount bracket supplied
• Optional hardware for a wide range of installation needs

Technical Specifications

Speaker type
Full-range, powered speaker, bass reflex
Frequency range (-10dB)
80Hz – 20kHz *1
Nominal coverage
H 170/ V 25 (+12.5 – -12.5)
Effective coverage (-10dB)
H 180 / V 30 (+15 – -15)
LF-HF
1.5″(3.75cm) Cone x 16
Maximum output level (1m; on axis)
102 dB SPL (when using PoE+(IEEE 802.3at)) *2
Dynamic
15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
Continuous
15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
I/O connectors
RJ-45 (Dante) x 1
Speaker processing
Clip limiting, Integral power protection
Amplifier protection
Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
Power supply protection
Over load protection, Over voltage protection, Under voltage lock out
Cooling
Natural convection
Power requirements
PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
Power consumption
Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
Finish
VXL1B-16P: Black painting (approximate value: Munsell N3.0), VXL1W-16P: White painting (approximate value: Munsell N9.0)
Magnetic shielding
No
Dust and water resistant
No
Accessories
Mounting bracket x2, Bracket base x2, Safety wire x1, Machine screws (M5x10) x2, Template x1, Owner’s manual
Options
WMB-L1B (W), HCB-L1B, PA-L1B
Packaging
Packaged in 1 pc
Dimensions (W x H x D)
W54 x H1120 x D104 mm (Speaker only)
Weight
5.0kg (Speaker only)
