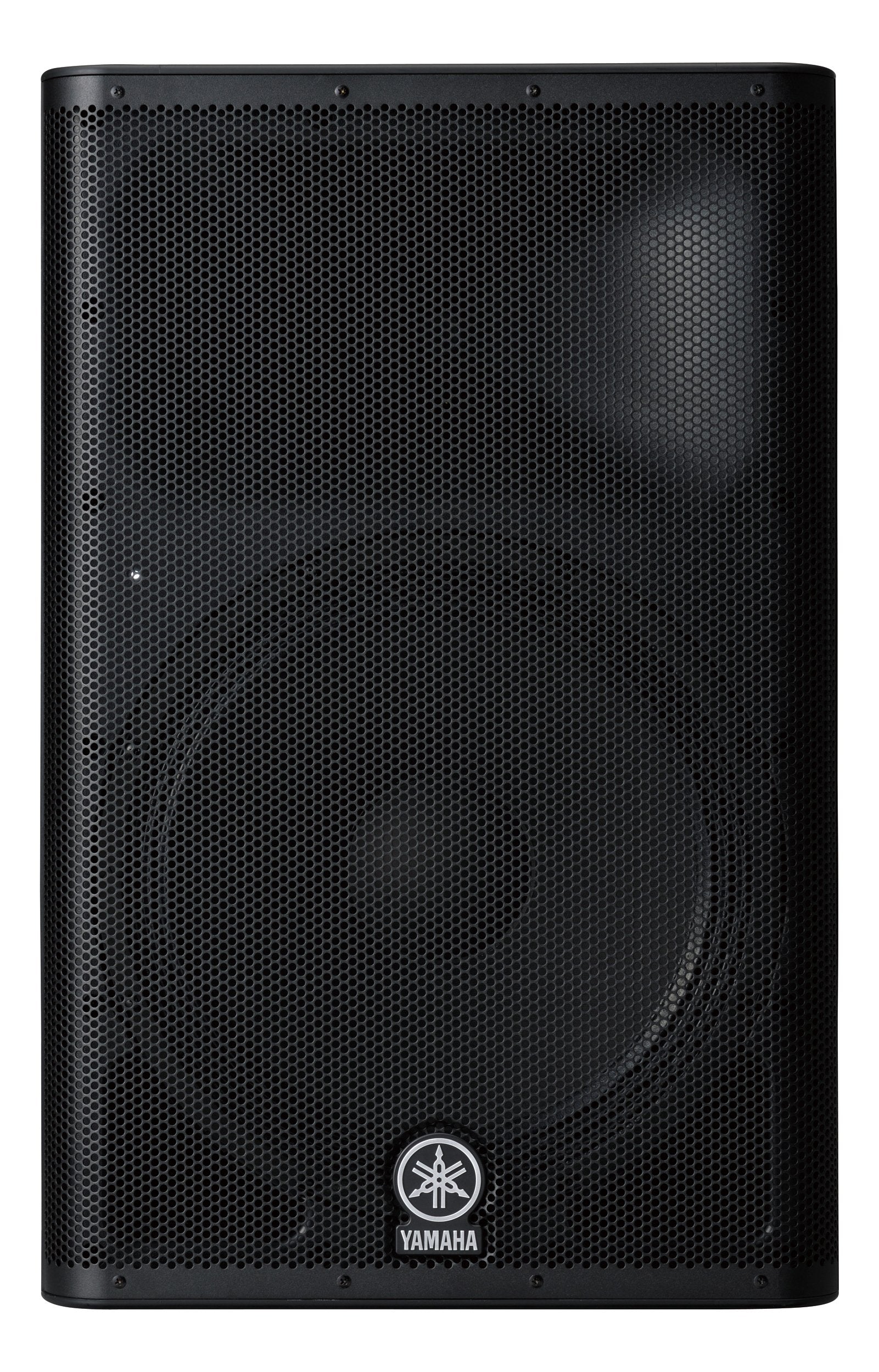

Yamaha DXR15 15inch 2way Bi Amp Powered Speaker

The DXR15 achieves class-leading SPLs and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha’s cutting edge technologies. Throw in some D-Contour and you’ll feel like you’re using a subwoofer.

Key Features

• High-Efficiency 1100W Class-D Amplifiers
• Custom Designed Transducers
• Durable, Compact ABS Enclosures
• Intelligent Onboard 3-Channel Mixer
• Smart Enclosure Design for Floor Monitoring
• Dual-Angle Pole Mount Socket
• Rigging Points for Standard Eye-bolts and Optional U-Brackets

Technical Specifications

Speaker type : 15″ 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) : 49Hz – 20kHz
Nominal coverage : H 90°, V 60°
Components
LF Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite
HF Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover : FIR-X tuning™ (linear phase FIR filter)
Output power : Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis) : 133dB SPL
I/O connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors : D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements : 100V – 240V, 50Hz/60Hz
Power consumption : 110W
Flying and mounting hardware : Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket : 35mm with 2-way features (0 or 7 degrees)
Dimensions
W 445mm (17 1/2″)
H 700mm (27 1/2″)
D 380mm (15″)
Net weight 22.5kg (49.6lbs)
Accessories UB-DXR15
Others Material: ABS (Matte Finish, Black)
