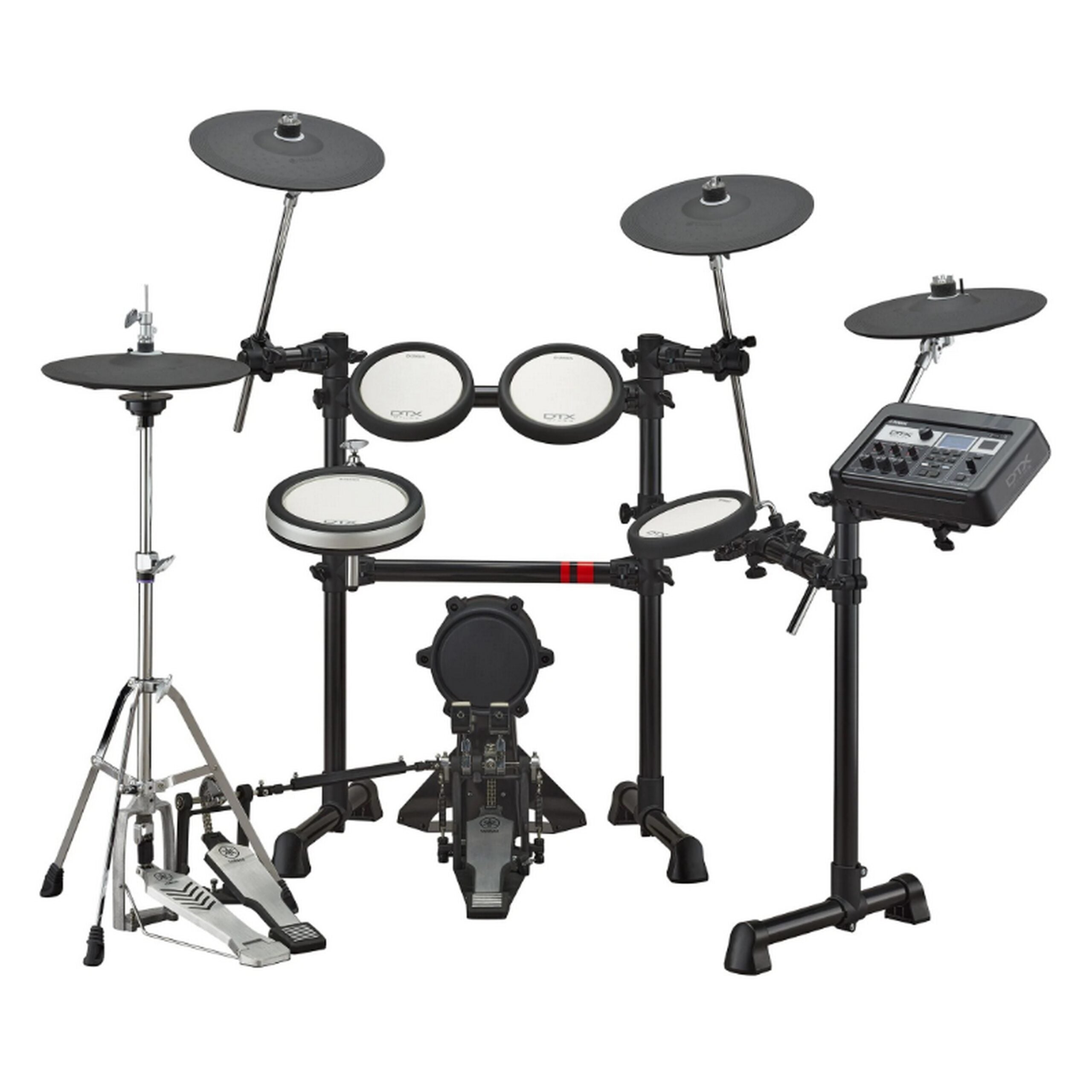

Yamaha DTX6K3-X Electronic Drum Set

The DTX6 Series features the innovative KIT MODIFIER, which sparks creativity and delivers superb performance in a compact configuration.

The original Yamaha TCS (Textured Cellular Silicone) head used in the flagship models combines with real sound and ambience recorded in a world-renowned studio to provide an authentic playing experience.

The DTX6 Series is recommended for all drummers who want to have fun, play like a pro and hope to easily transfer their skills to acoustic drums.

Real sounds that drive the drummer
No compromises have been made in recording the sound of the instruments themselves – the key to any drum sound along with the ambience of the place where they are played. The DTX-PRO has been fine-tuned to follow the drummer’s performance and allow for maximum expression.

Intuitive functionality that stirs creativity
The KIT MODIFIER featured on the DTX-PRO offers drummers limitless possibilities.

Kit Modifier condenses the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonal possibilities are availablefrom the natural sound of acoustic drums through to live performance sounds carefully crafted by engineers.

The AMBIENCE knob controls the reverberation of the drum sound; for an acoustic drum kit, up to 50% of the memory features the real ambience components of the recording studio, while 51-100% is high-quality digital reverb.

The COMP and EFFECT knobs utilize the “1 knob” control technology featured in Yamaha PA products.

COMP controls the compression effect and brings them to the front, while EFFECT controls effects that have been optimized for preset kits.

A playing experience in a class of its own
The DTX6 Series is equipped with TCS (Textured Cellular Silicone) heads providing unparalleled levels of feel and quietness.

Yamaha’s original TCS head uses a foamed silicone material that contains innumerable air bubbles. With the perfect level of firmness and rebound that allows players to hit hard, TCS offers a natural, pleasant feel that inspires you to want to keep playing, and because the surface never loosens, every strike feels perfect.

In addition, a unique floating structure without any direct contact with the head and body parts prevents vibration from being transmitted elsewhere, while also improving sensitivity, and the air bubbles in the TCS head serve as a cushion to soften the stick sound.

Key Features

• Create your own unique sounds with AMBIENCE, COMP and EFFECT kit modifier knobs
• TCS heads help to achieve a pleasing, natural feel and rebound that makes you want to keep playing
• 3-Zone pads for the snare and ride cymbals that can be choked and muted
• Ride cymbal equipped with hit point detection function
• Includes hi-hat stand and snare clamp that utilizes Yamaha system hardware

Technical Specifications

Snare
(8-inch TCS pad with 3 zones)
Tom Pad
(7-inch TCS pad)
Floor Tom Pad
(7-inch TCS pad)
Kick Pad
(7.5-inch rubber pad with multi-layer cushion)
Hi-Hat Pad
(13-inch pad with 2 zones)
Crash cymbal 1
(13-inch pad with 3 zones)
Crash cymbal 2
(13-inch pad with 3 zones)
Ride cymbal
(13-inch pad with 3 zones)
Hi-hat Stand
HS650A
Footprint (average)
1,100 mm x 1,400 mm
Weight
36.6 kg

Dimensions
Width: 303 mm (11-15/16 in)
Height: 196 mm (7-11/16 in)
Depth: 66 mm (2-5/8 in)
Weight
1.5 kg (3 lb 5 oz)
Maximum Polyphony
256 notes
Effects
For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum Kits
Preset: 40 Kits, User: 200 Kits
Voices
712
Click Sets
30
Tempo
30 to 300 BPM, Tap tempo supported
Time Signatures
1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subnavisions
Accents, quarter notes, eighth notes, sixteenth notes and eight-note triplets
Others
Innavidual click volume control, wav import, timer
Training Types
10
Songs
Preset: 37 songs, User: 1 song
Audio Files
Import Limit: 1,000 files
Maximum Loadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
Sample Format
WAV
Internal Memory
Maximum of 90 seconds
USB Flash Drive
Maximum of 90 minutes per file
Format
Record/playback: WAV (44.1 kHz, 16 bit, stereo)
Connectors
DC IN: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack x 1)
AUX IN: AUX IN (stereo mini jack x 1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT
Trigger Input
Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
Display
Full Dot LCD (128-64 dot)
Accessories
AC adapter (PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information (*2 May not be included depending on your area. Check with your local Yamaha dealer)
