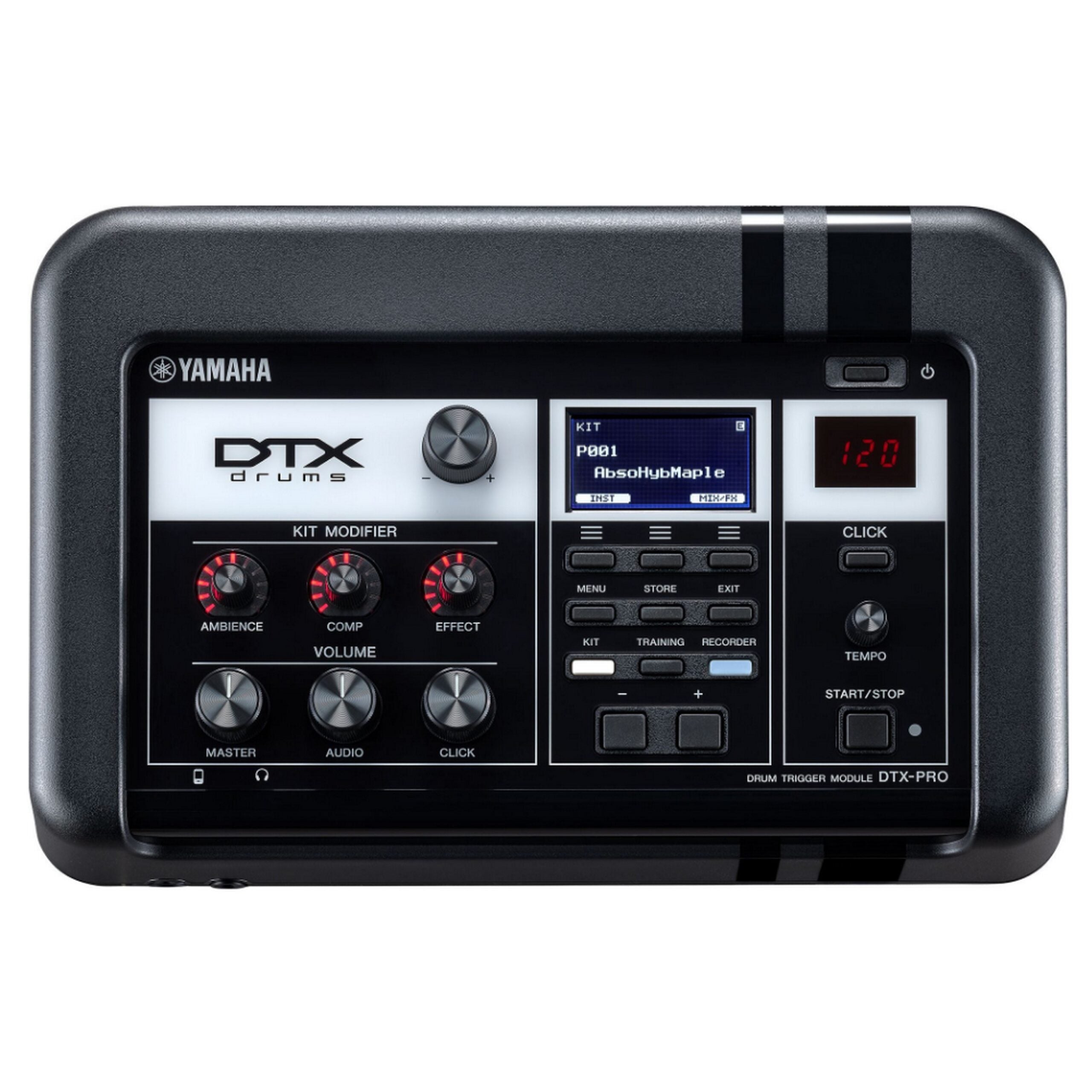

Yamaha DTX-PRO Drum Trigger Module for DTX6K Series

Drum Trigger Module Used in the DTX6K Series Electronic Drum Sets with Kit Modifier Feature

Technical Specifications

Dimensions
Width: 303 mm (11-15/16 in)
Height: 196 mm (7-11/16 in)
Depth: 66 mm (2-5/8 in)
Weight
1.5 kg (3 lb 5 oz)
Maximum Polyphony
256 notes
Effects
For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
Drum Kits
Preset: 40 Kits, User: 200 Kits
Voices
712
Click Sets
30
Tempo
30 to 300 BPM, Tap tempo supported
Time Signatures
1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Subnavisions
Accents, quarter notes, eighth notes, sixteenth notes and eight-note triplets
Others
Innavidual click volume control, wav import, timer
Training Types
10
Songs
Preset: 37 songs, User: 1 song
Audio Files
Import Limit: 1,000 files
Maximum Loadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
Sample Format
WAV
Internal Memory
Maximum of 90 seconds
USB Flash Drive
Maximum of 90 minutes per file
Format
Record/playback: WAV (44.1 kHz, 16 bit, stereo)
Connectors
DC IN: DC IN (+12V)
Headphones: Headphones (standard stereo phone jack x 1)
AUX IN: AUX IN (stereo mini jack x 1)
Output: OUTPUT L/MONO, R (standard phone jack, one for each)
USB: USB TO DEVICE, USB TO HOST
MIDI: MIDI OUT
Trigger Input
Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
Display
Full Dot LCD (128-64 dot)
Accessories
AC adapter (PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information (*2 May not be included depending on your area. Check with your local Yamaha dealer)
