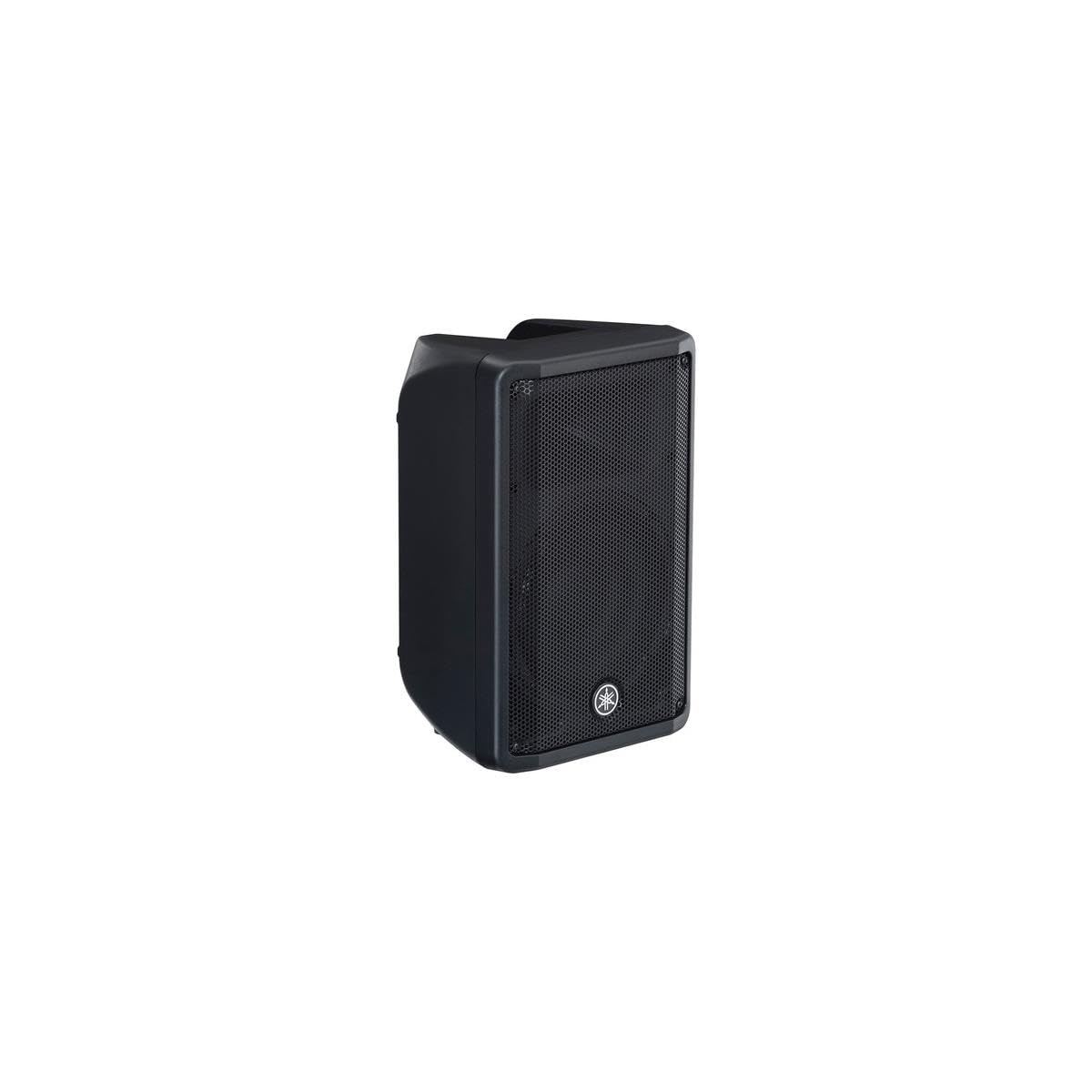

Yamaha DBR10 10inch 2 Way Powered Loudspeaker

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Key Features

• The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics
• The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1 inch precision compression driver produces accurate mid-range and high frequencies
  DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers
• Smart enclosure design for floor monitoring
• Easy-to-use onboard 2 channel mixer

Technical Specifications

Speaker Type
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency Range (-10dB)
55Hz 20kHz
Nominal Coverage
H: 90 degree
V: 60 degree
Components
LF: Diameter: 10 inch cone, Voice Coil: 2 inch, Magnet: Ferrite
HF: Diaphragm: 1 inch, Type: 1 inch throat compression driver, Magnet: Ferrite
Crossover
2.1kHz: FIR-X tuning (linear phase FIR filter)
Output Power
Dynamic: 700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum Output Level (1m; on axis)
129dB SPL
I/O Connectors
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat Dissipation
Fan cooling, 4 speeds
Power Requirements
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power Consumption
60W(1/8 Power Consumption), 18W(Idle)
Cabinet Material
Plastic
Finish
Black
Handle
Top x 1
Flying and Mounting Hardware
Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole Socket
35mm (Bottom x 1)
Dimensions
W: 308mm (12.1 inch)
H: 493mm (19.4 inch)
D: 289mm (11.4 inch)
Net Weight
10.5 kg (23.2 lbs)
Accessories
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
