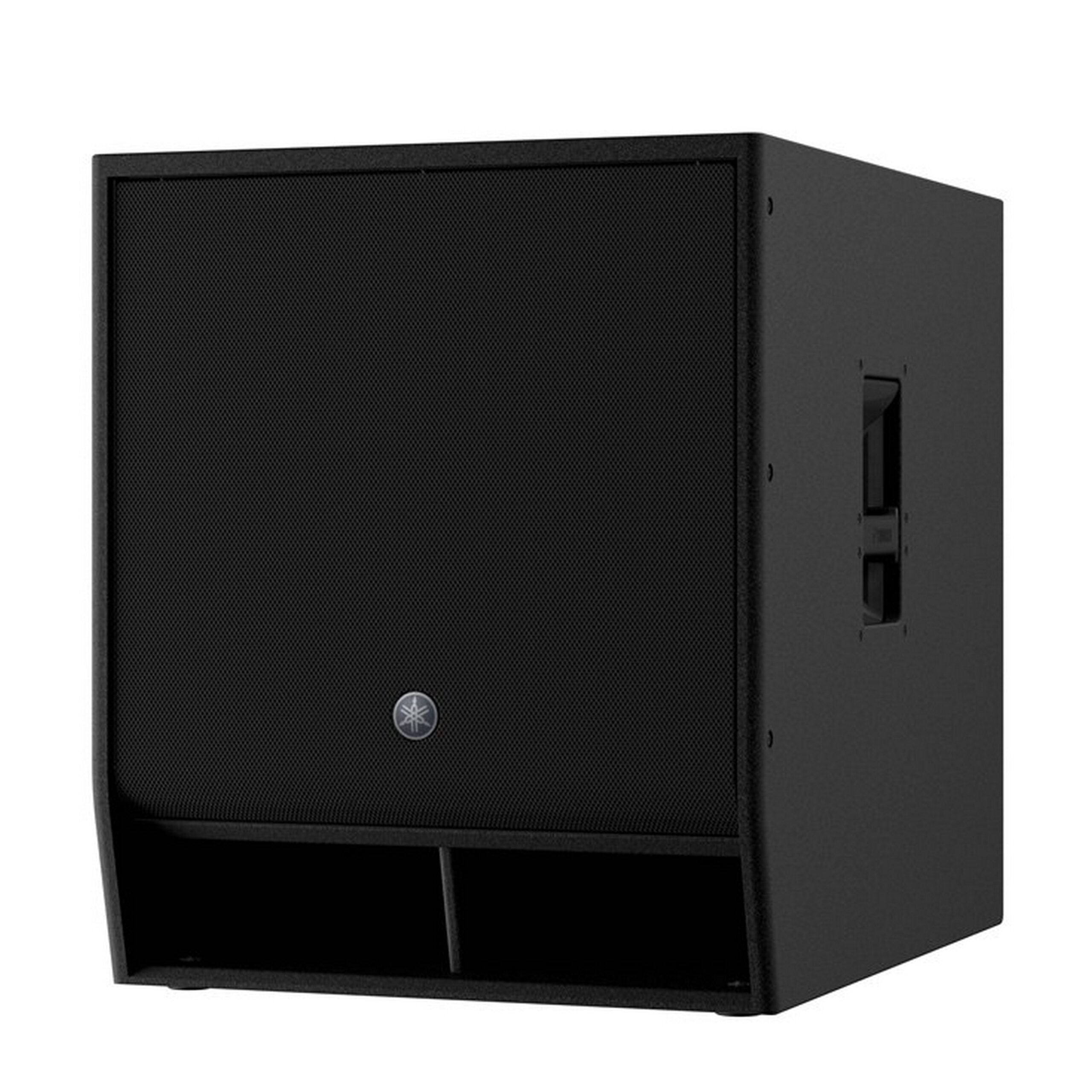

Yamaha CXS18XLF 18-Inch 1000W Subwoofer

Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 133dB SPL performance.

Key Features

• 18” subwoofer with 4” Voice Coil
• High power 1000W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Technical Specifications

Speaker type
Subwoofer, Bass-reflex
Frequency range (-10dB)
Passive: 32 Hz – 3kHz, Normal (*1): 32 Hz – 150 Hz, Extend (*1): 29 Hz – 150 Hz
Components
LF: 18″ Cone, 4″ Voice Coil, Ferrite magnet
Power rating
NOISE: 500 W (EIA 426-A)
PGM: 1000 W (EIA 426-A)
PEAK: 2000 W (EIA 426-A)
Nominal impedance
8 OHM
SPL
Sensitivity (1W; 1m on axis): 100dB *2
Peak (Calculated): 133 dB *2
I/O connectors
SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle
Aluminium die-cast, Side x2
Pole socket
35 mm (depth 80mm), M20 Threaded (depth 25mm)
Dimensions
W: 550 mm (21.6″)
H: 657 mm (25.9″) (with rubber feet)
D: 720 mm (28.4″)
Net weight
43.6kg (96.1 lbs)
Options
Cover: SPCVR-DXS18X, Caster: SPW-1
Others
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
