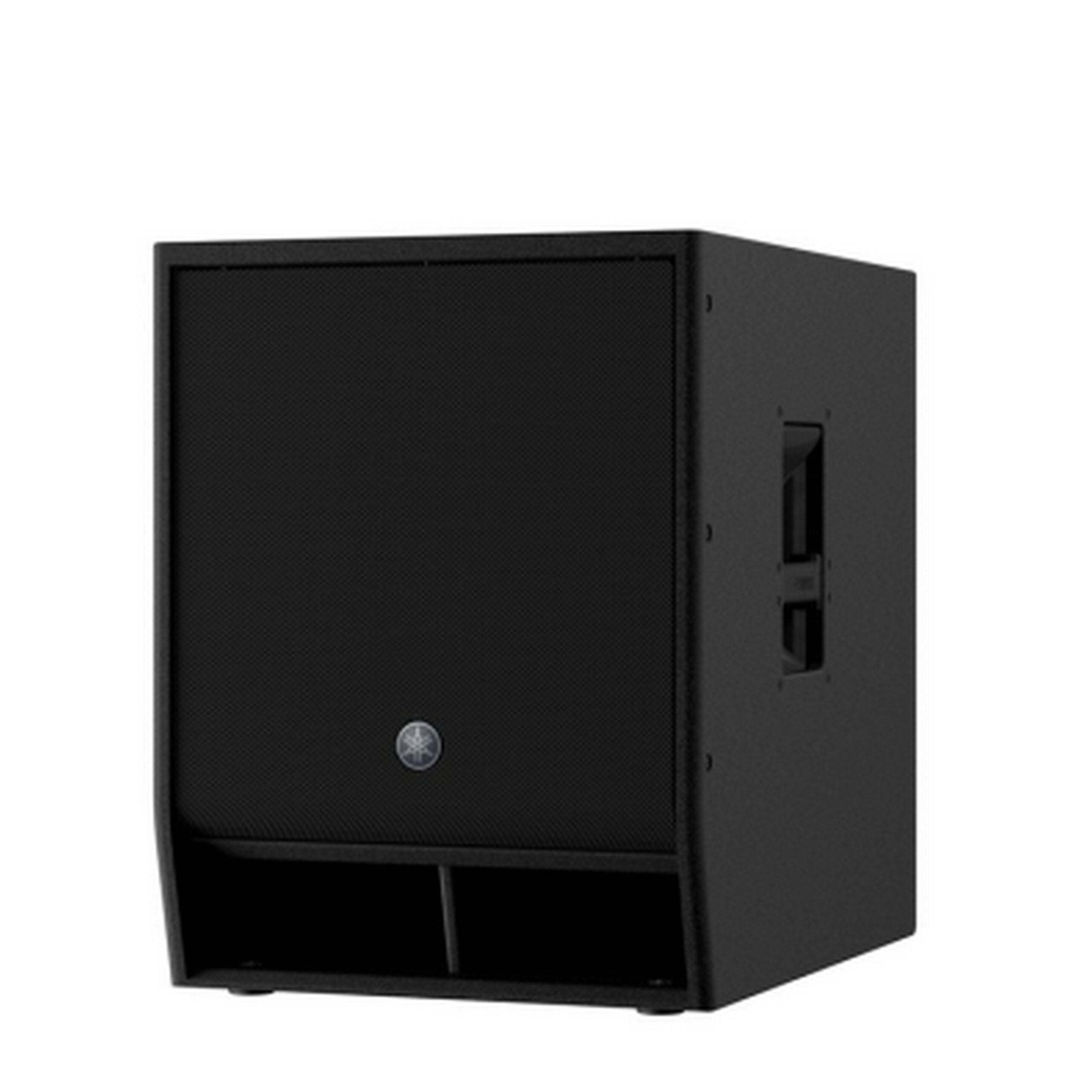

Yamaha CXS15XLF 15-Inch 800W Subwoofer

Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.

Key Features

• 15” subwoofer with 4” Voice Coil
• High power 800W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Technical Specifications

Speaker type
Subwoofer, Bass-reflex
Frequency range (-10dB)
Passive: 33 Hz – 3.5kHz, Normal (*1): 35 Hz – 150 Hz, Extend (*1): 33 Hz – 150 Hz
Components
LF: 15″ Cone, 4″ Voice Coil, Ferrite magnet
Power rating
NOISE: 400 W (EIA 426-A)
PGM: 800 W (EIA 426-A)
PEAK: 1600 W (EIA 426-A)
Nominal impedance
8 OHM
SPL
Sensitivity (1W; 1m on axis): 98dB *2
Peak (Calculated): 130 dB *2
I/O connectors
SpeakON NL4MP x 3 (Parallel x2, Output x1)
Handle
Aluminium die-cast, Side x2
Pole socket
35 mm (depth 80mm), M20 Threaded (depth 25mm)
Dimensions
W: 450 mm (17.7″)
H: 587 mm (23.1″) (with rubber feet)
D: 600 mm (23.6″)
Net weight
35.6kg (78.5 lbs)
Options
Cover: SPCVR-DXS15X, Caster: SPW-1
Others
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black
