VigilLink 2-Channel Dante Line Output Adapter Free Shipping

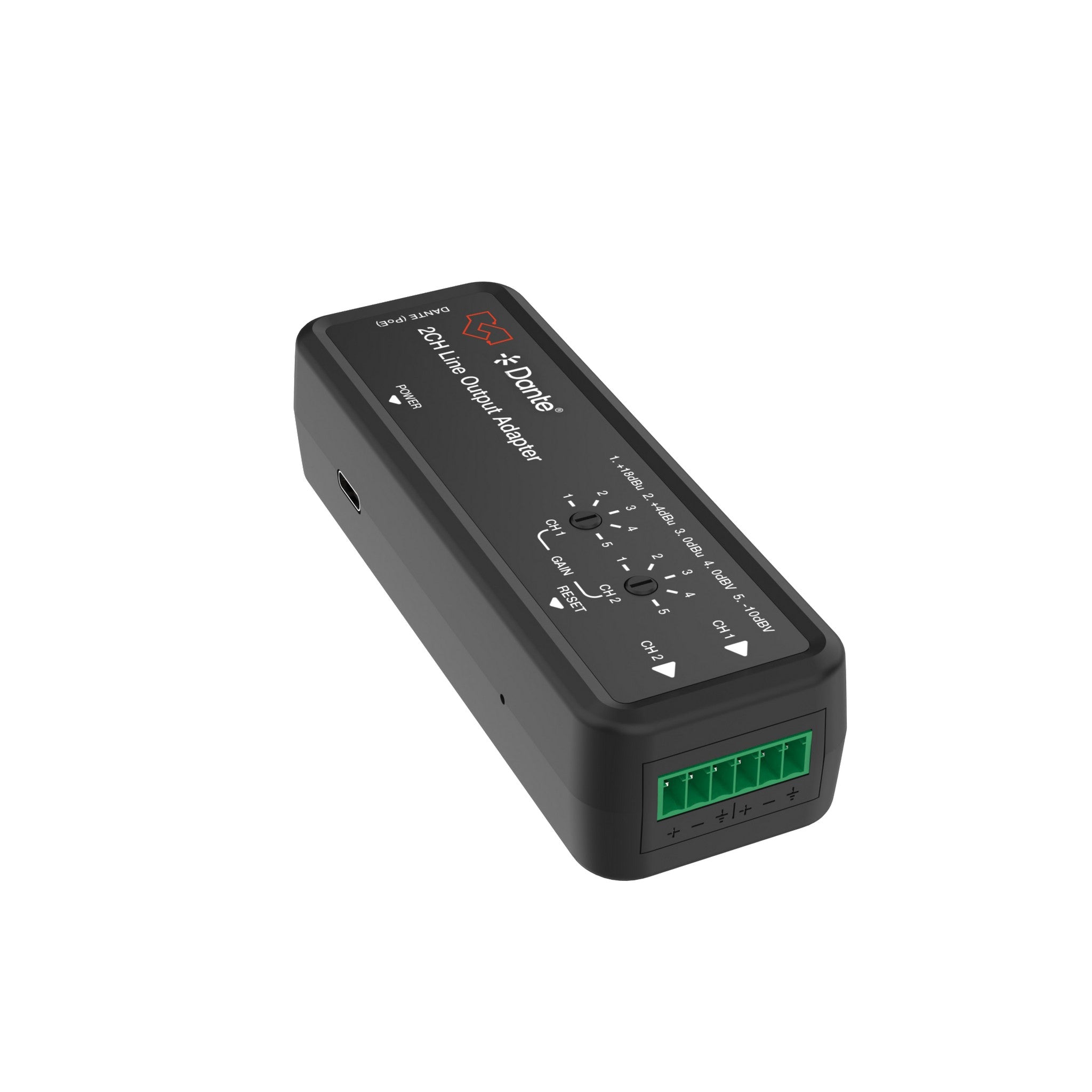

VLDT-DT2LA 2CH Dante Line Output Adapter

The VLDT-DT2LA Dante Audio Interface offers professional-grade audio performance with advanced features that ensure superior sound quality in any audio setup. Ideal for a wide range of audio applications, including live sound, studio recording, and broadcast, this device supports LPCM 2.0 audio formats and boasts an impressive frequency response from 20Hz to 20kHz with a distortion rate of less than 0.01%. With its ability to handle both low-latency audio transmission and high-dynamic-range audio, it is the perfect solution for demanding audio environments where precision and clarity are paramount.

Engineered to meet the highest standards of audio performance, the VLDT-DT2LA provides an audio signal-to-noise ratio greater than 130dB, ensuring that every detail of your sound is captured with pristine clarity. The device supports Dante® audio networking, offering flexibility and scalability for any networked audio system. With configurable latency options from 1 to 5 milliseconds, users can tailor the device to fit the specific needs of their system, whether for real-time audio streaming or studio recording. The low audio output sync delay of less than 10ms ensures that the device remains highly responsive, making it an excellent choice for real-time performance and mixing applications.

Compact and durable, the VLDT-DT2LA features a plastic enclosure with a sleek black finish. The unit includes multiple input, output, and control ports, including a USB-C power port for easy firmware updates. Designed with ease of use in mind, it includes gain knobs and a reset button for quick adjustments and troubleshooting. The device also features robust protection against electrostatic discharge (ESD) to ensure long-lasting performance even in challenging environments. Operating within a temperature range from 32°F to 104°F, this device is suitable for both indoor and outdoor installations, offering flexibility in a variety of setups.

Key Features:

• Supports LPCM 2.0 audio formats for high-quality audio transmission.
• Frequency response from 20Hz to 20kHz, delivering pristine audio clarity.
• Dynamic range greater than 130dB, ensuring accurate audio reproduction.
• Configurable latency options (1ms, 2ms, or 5ms) for low-latency audio performance.
• Audio S/N ratio greater than 130dB, providing exceptional signal clarity.
• Audio THD+N of < 0.01% at +4dBu, ensuring minimal distortion.
• Compact and durable plastic enclosure with a sleek black finish.
• Compliant with IEC 61000-4-2 ESD protection standards for reliable performance.

Technical Specifications:

Audio Formats: LPCM 2.0
Frequency Response: 20Hz to 20kHz (-/+0dB)
Dynamic Range: >130dB, 1kHz A-weighted
Audio S/N Ratio: >130dB, 1kHz A-weighted
Audio THD+N: < 0.01% at +4dBu, 1KHz
Audio Output Sync Delay: < 10ms
Audio Latency: Configurable Dante® device latency (Supports 1ms, 2ms, or 5ms configurable using Dante® Controller)

Connection:
Input Ports:
1x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector]Output Ports:
1x DANTE [RJ45 connector, Digital audio in/out, PoE]Control Ports:
1x POWER [USB-C power and firmware update port, 12-pin female]1x RESET button [System reboot button]1x USB-C LED [Green color, USB 5V indicator]2x GAIN knob [5-level dip switch]

Mechanical:
Housing: Plastic Enclosure
Color: Black
Dimensions: 4.53″ (L) x 1.57″ (W) x 1.10″ (H)
Weight: 0.20 lbs

Power Supply:
Voltage: 5V
Current Draw: 1.2W

Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20% – 80% RH (Non-condensing)

What’s Included:
1 x VLDT-DT2LA Dante Audio Interface
