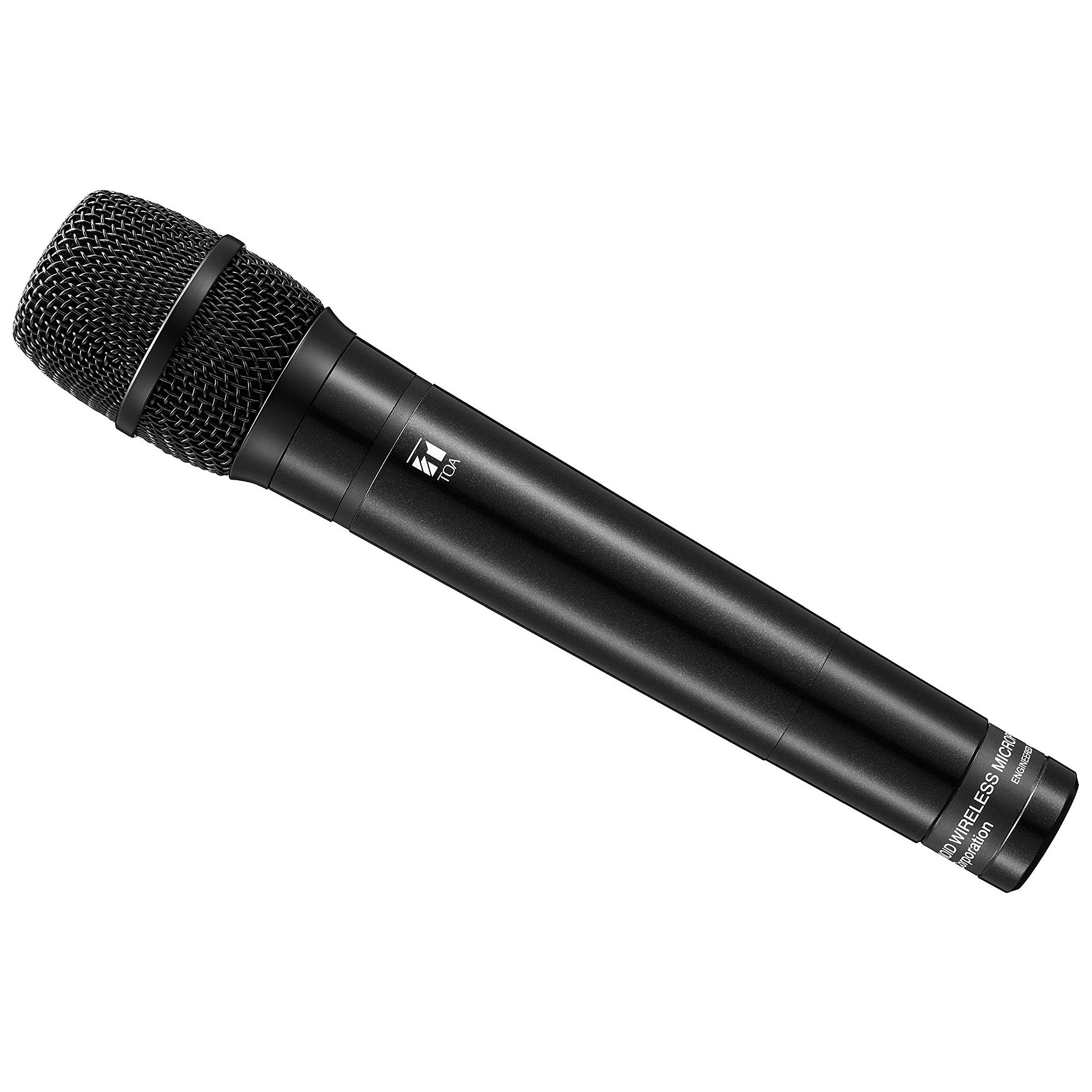

TOA Electronics WM-5270 Handheld Wireless Dynamic Microphone

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handing capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (per each of 4 banks) are made available. High output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.

Technical Specifications

Microphone Element
Dynamic microphone unit: Unidirectional
Modulation
Frequency modulation
Frequency Range
M1:506 – 538 MHz, H01:576 – 606 MHz, UHF
Channel Selectable
64 channels (the number of channels may differ from country to country)
RF Carrier Power
50 mW or less
Tone Frequency
32.768 kHz
Oscillator
PLL synthesized
Maximum Input Level
142 dB SPL
Maximum Deviation
±40 kHz
Audio Frequency Response
80 Hz – 15 kHz
Dynamic Range (AF Circuit)
95 dB or more (with WT-5800)
Battery
AA alkaline dry cell battery
Battery Life
Approx. 10 h (when the alkaline battery is used)
Indicator
Power/Battery lamps
Antenna
Built-in type
Operating Temperature
-10 to +50 (14 DegreesF to 122 DegreesF) (except battery)
Operating Humidity
30 % to 85 %RH
Finish
Dark gray
Dimensions
48 × 244 mm (?1.89″ × 9.61″)
Weight
340 g (0.75 lb) (with battery)
