TOA Electronics RM-200MPS Remote Microphone for VM-3000 Series Outlet Official

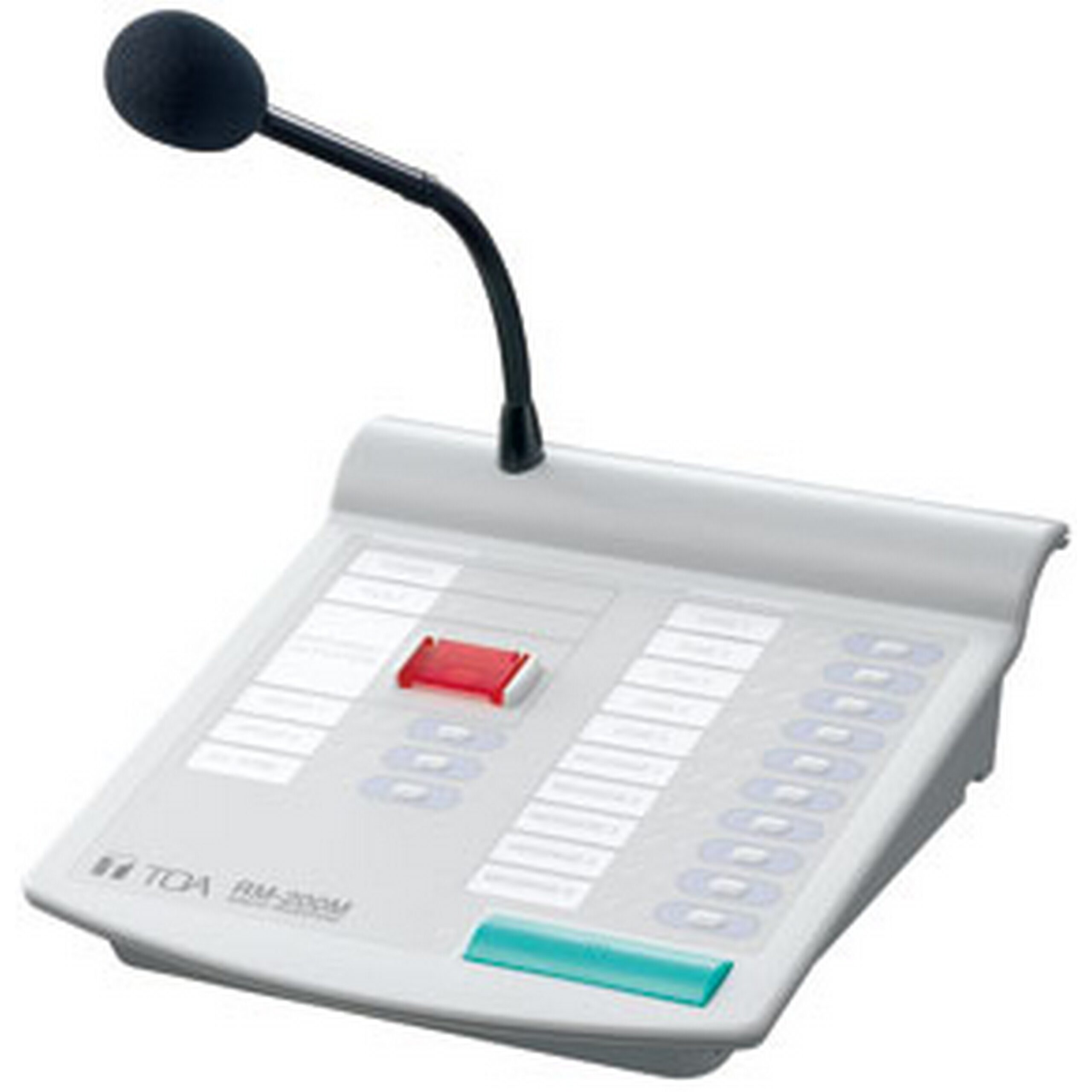

TOA Electronics RM-200MPS Remote Microphone for VM-3000 Series

Up to four remote microphones can be connected to the RM-200M Remote Microphone but the maximum connection length for all cables is approximately 800 meters. An external microphone input terminal is provided to allow using a headset microphone, along with built-in internal compressor circuitry to ensure broadcasts are always clear and distortion-free. The TALK button may be a PTT or lock-type, which also provides an “AUTO MIC Off” capability to automatically switch off the microphone if the TALK switch is inadvertently left on. The emergency activation button is equipped with a cover in case of accidental selection.

The VM-3000 Series UL 2572 and UL 864 listed, is ideal for small and medium-sized applications. It incorporates such emergency functions as continuous speaker line monitoring and a built-in voice alarm. This easy-to-install system also offers PA broadcasting, paging and BGM functions that ensure consistently high intelligibility. The VM-3000 Series is digitally audio processed and controlled, and may be set up and operated directly by using the controls and LCD display on the front panel. A dedicated PC software configuration capability is also provided for establishing settings via LAN. The incorporation of wide-ranging functional capabilities, superb reliability and versatility make the VM-3000 a highly cost-effective emergency broadcast system.

Technical Specifications

Power Source
24 V DC (Operating range: 14 – 28 V DC)
Power input jack: non-polarity type
Usable power input plug (*2): Outer diameter φ5.5 mm
φ2.1 mm
Current Consumption
100 mA or less
Audio Output
0 dB (*1)
Distortion
1% or less
Frequency Response
100 – 20
S/N Ratio
60 dB or more
Microphone
Unidirectional electret condenser microphone
No. of Function Keys
13
Emergency Broadcast (*3)
Activation of Emergency Broadcast (pre-recorded announcement or live
microphone announcement) by Emergency Broadcast Switch
Volume Control
Microphone volume control
Connection Cable and Connector
Category 5 STP cable
Finish
ABS resin
Dimensions
190 (W) x 76.5 (H) x 215 (D) mm (Gooseneck microphone excluded)
Weight
750 g
Accessory
Link cable (3 m) 1
Option
Wall mounting bracket: WB-RM200
