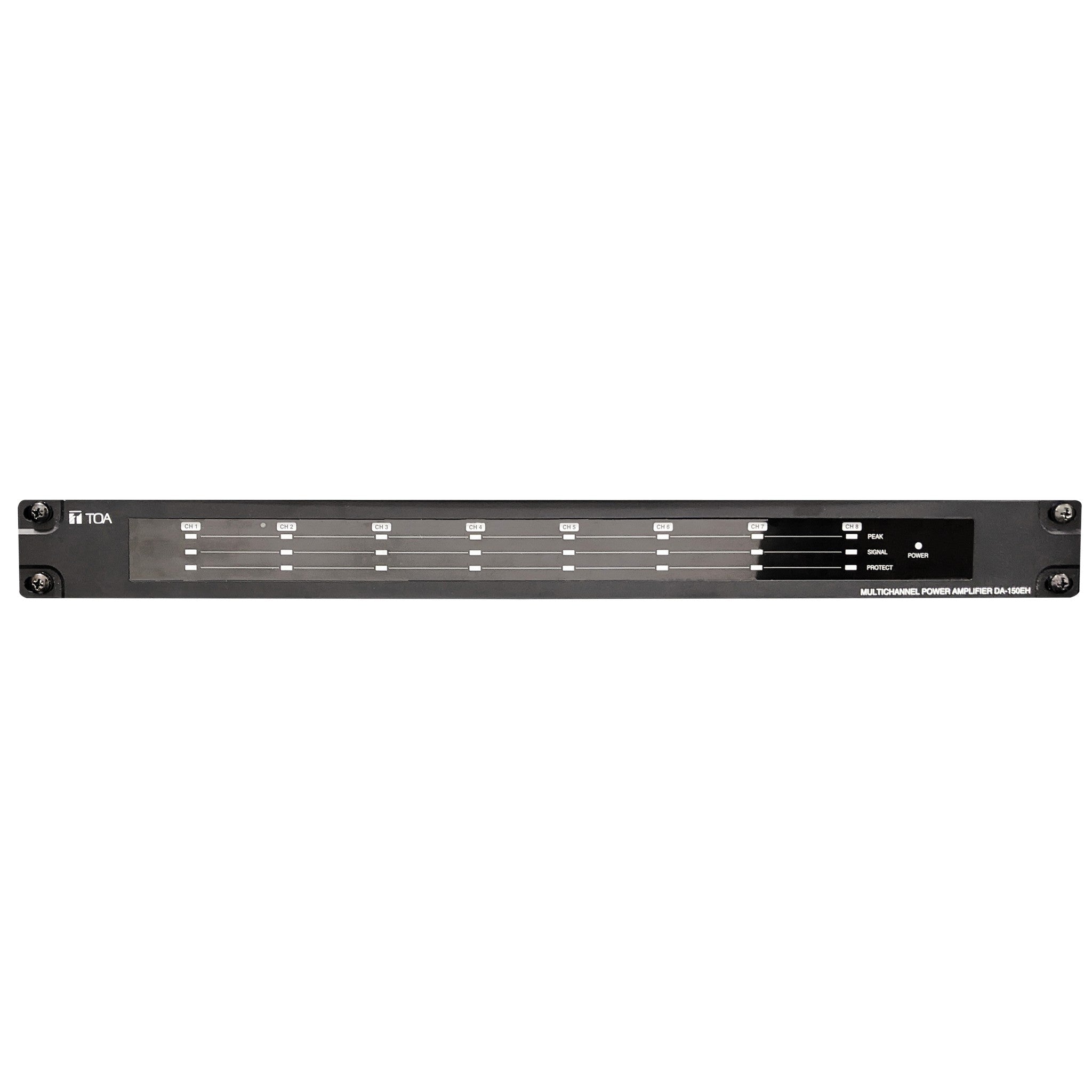

TOA Electronics DA-150EH-AM 3CU 8-Channel Digital Power Amplifier

TOA’s DA-150EH-AM Multichannel Power Amplifier features high power handling capabilities and commercial-grade durability. It has a rated output of 150 W x 8 channels (100/70V line output). It covers larger scale sound system applications were background/foreground music distributions and/or voice announcements are required in multi-zone. It can be mounted in an EIA standard equipment rack. This lightweight and compact amplifier, offers 8 channel Class D power with 150W per channel.

Key Features

• 8-Channel Class-D amplifier
• 150W per channel
• Separate volume control for each channel
• Low power consumption and light weight
• Electronically-balanced inputs
• Built-in protection circuitry

Technical Specifications

Power Source
110-120 V AC, 50/60 Hz
Amplification System
Digital class D
Power Consumption
1000 W
Input
8 circuits, 0 dBV (1 V) (input level control in maximum position), 20 kΩ, electronically-balanced, removable terminal block (3 pins)
Rated Output
8 channels: 150 W x 8 (66.7 Ω (100 V)/33 Ω (70 V))100/70 V DIP switch x 8 removable terminal block (2 pins)
Frequency Response
50 – 20,000 Hz (±3 dB)
Total Harmonic Distortion
< 0.1%
S/N Ratio
> 95 dB (A-weighted)
Crosstalk
> 70 dB (A-weighted)
Protection Circuit
Short circuit, open circuit, thermal, excessive input, ultrasonic and RF
Indicators
Signal(green) x 8, Peak(red) x 8, Protect(red) x 8, Power(green) x 1
Cooling
Forced air cooling
Operating Temperature
0 Degrees C to +40 Degrees C (32 Degrees F to 104 Degrees F)
Operating Humidity
Under 90% RH (no condensation)
Finish
Panel: aluminum, black, alumite, Case: plated steel sheet
Dimensions
483 (W) x 44 (H) x 360 (D) mm (19” x 1.7” x 14.2”)
Weight
7.3 kg (16.09 lbs)
Accessory
Power cord (2 m) …1, Removable terminal plug (3 pins) …8, Removable terminal plug (2 pins) …8
