TOA Electronics B-41S Bridging Transform Line Module for 900 Series Best Place To Buy Online

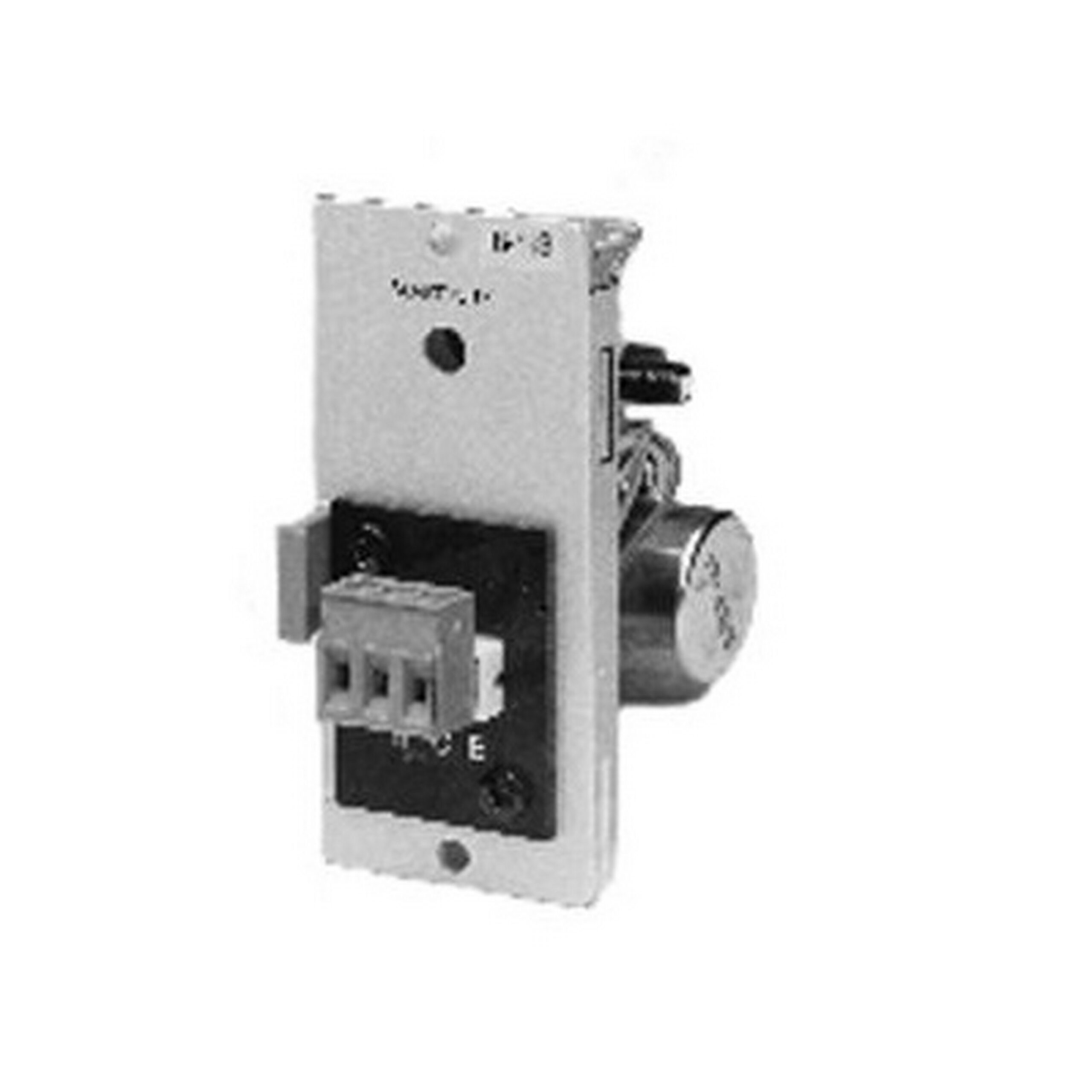

TOA Electronics B-41S Bridging Transform Line Module for 900 Series

The B-41S is a line module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output and a balanced input.

Technical Specifications

Power Source
24 VDC
Current Consumption
Less than 9 mA
Input Sensitivity (Rated Output 1 V )
0.7 – 1.4 V
Frequency Response
20 Hz – 20 kHz
Signal-Activated Muting
8 – 15 mV
Input Connector
3P terminal block
Output Connector
6P card edge-connector
Dimensions
35 (W) – 78 (H) – 88 (D) mm
Weight
80 g
