TOA Electronics B-21S Bridging Transform Line Module for 900 Series Discount Newest

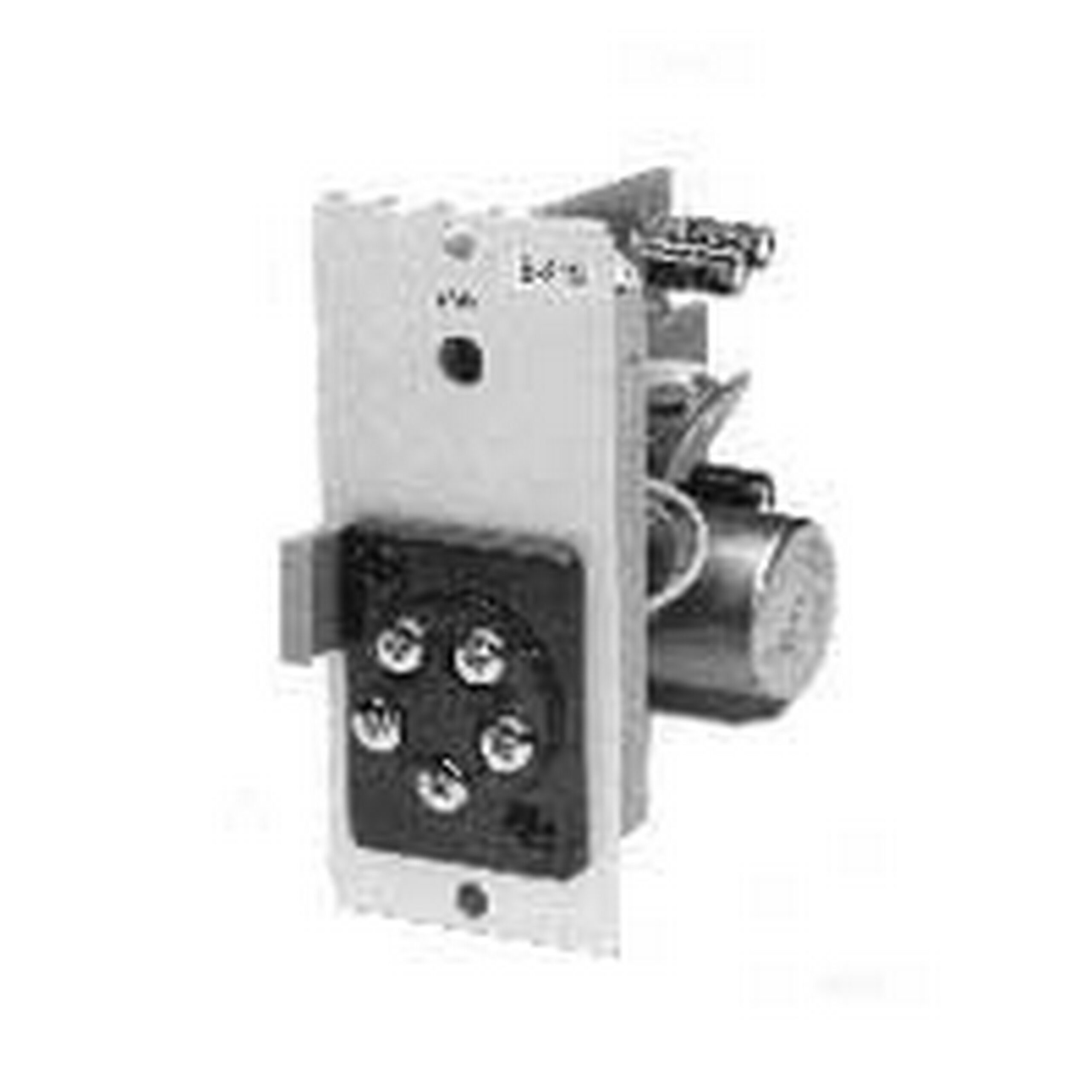

TOA Electronics B-21S Bridging Transform Line Module for 900 Series

For balanced or unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote equipment. Allows remote control of input signal using an external potentiometer.

Technical Specifications

Power Source
24 VDC
Current Consumption
Less than 27 mA
Input Sensitivity (Rated Output 1 V )
0.9 – 10 V (adjustable)
Noise Output (20 Hz – 20 kHz BPF)
Less than 50 V
Distortion
Less than 0.05 %
Frequency Response
20 Hz – 20 kHz
Remote Volume Control
More than 55 dB
Input Connector
5P screw terminal
Output Connector
6P card edge-connector
Dimensions
35 (W) – 78 (H) – 88 (D) mm
Weight
90 g
