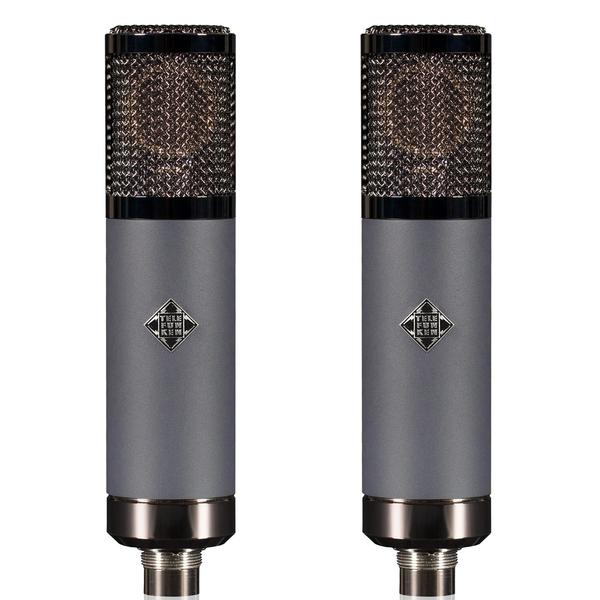

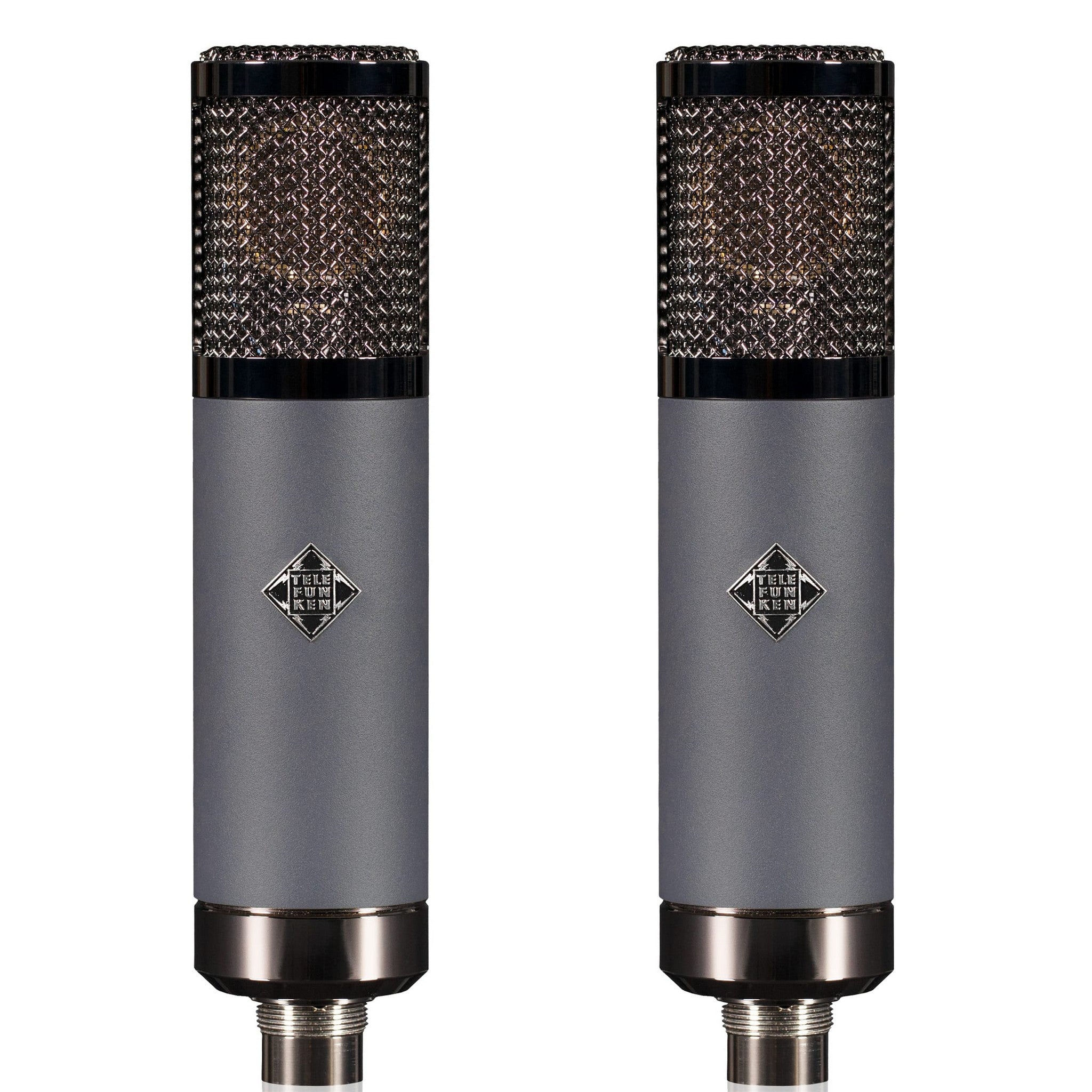

Telefunken TF51 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair For Sale Sale Online

The Telefunken TF51 3-Pattern Large Diaphragm Microphone System, Matched Frequency Pair is a studio-grade piece of equipment designed to deliver exceptional audio quality. Inspired by the legendary ELA M 251E and C12 microphones, the TF51 boasts a smooth midrange and airy top-end, perfect for capturing the subtle nuances of vocals, acoustic instruments, and percussion. This versatile microphone is a powerful tool for any recording professional seeking to elevate their productions.

The Telefunken TF51’s sonic prowess stems from its meticulous design and high-quality components. The microphone features a CK12-style capsule, known for its ability to accurately capture a wide range of frequencies. Additionally, a 6072A vacuum tube contributes warmth and character to the sound, while a custom-made Haufe transformer ensures optimal signal transfer. The combination of these elements results in a beautifully open and detailed sonic profile, allowing you to faithfully reproduce the essence of your sound source.

One of the key strengths of the Telefunken TF51 is its versatility. The microphone features three selectable polar patterns: cardioid, omnidirectional, and figure-eight. This allows you to tailor the microphone’s response to your specific recording needs. The cardioid pattern is ideal for capturing focused audio on a single source, while the omnidirectional pattern provides a more ambient pickup suitable for capturing the entirety of a performance space. The figure-eight pattern is useful for recording two sound sources positioned face-to-face.

The Telefunken TF51 is not just about exceptional sound quality; it’s also built to last. Designed and hand-assembled in the USA using premium components, this microphone is a testament to American craftsmanship. The meticulous attention to detail ensures that the TF51 can withstand the rigors of professional recording environments, providing years of reliable performance.

Whether you’re a seasoned sound engineer or an aspiring musician looking to elevate your home recordings, the Telefunken TF51 Three-Pattern Large Diaphragm Microphone System is a worthwhile investment. Its exceptional sonic characteristics, versatile functionality, and robust build quality make it a powerful tool for capturing professional-grade audio.

Key Features

• Spacious and expansive high frequencies, reminiscent of the ELA M 251E
• Well-balanced bass frequencies and authentic midrange
• Ability to choose between Cardioid, Omni, and Figure 8 polar patterns
• Features a CK12-style capsule and a Haufe transformer made in Germany
• Utilizes a TELEFUNKEN Elektroakustik 6072A vacuum tube
• Crafted and assembled by hand in the United States
• Ideal for recording Vocals, Acoustic Guitar, Violin, and Drum Overheads

Technical Specifications

Type
Vacuum Tube Condenser
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20 Hz – 20 kHz, ±3 dB
Power Source
External Power Supply
Capsule
TK51 Edge Terminated Large Diaphragm
Tube
TELEFUNKEN Elektroakustik 6072A
Transformer
Haufe T31
Sensitivity
19 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier)
< 0.4%
Output Impedance
< 300 Ω
Maximum SPL (for 1% THD)
128 dB
S/N Ratio
86 dBA
Self-Noise (Amplifier)
8 dBA
Dimensions
200 mm L x 46 mm Dia
Weight
615 g
Included Accessories
Tube Mic Cable x2
Power Supply x2
Shock Mount x2
Stand Mount x2
Mic Sleeve x2
Carrying Case x2
