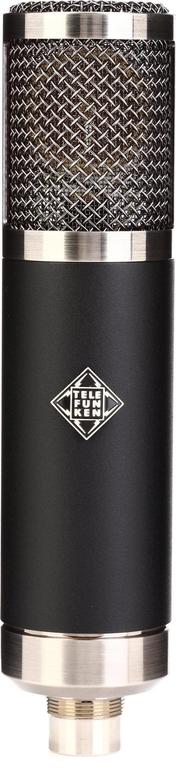

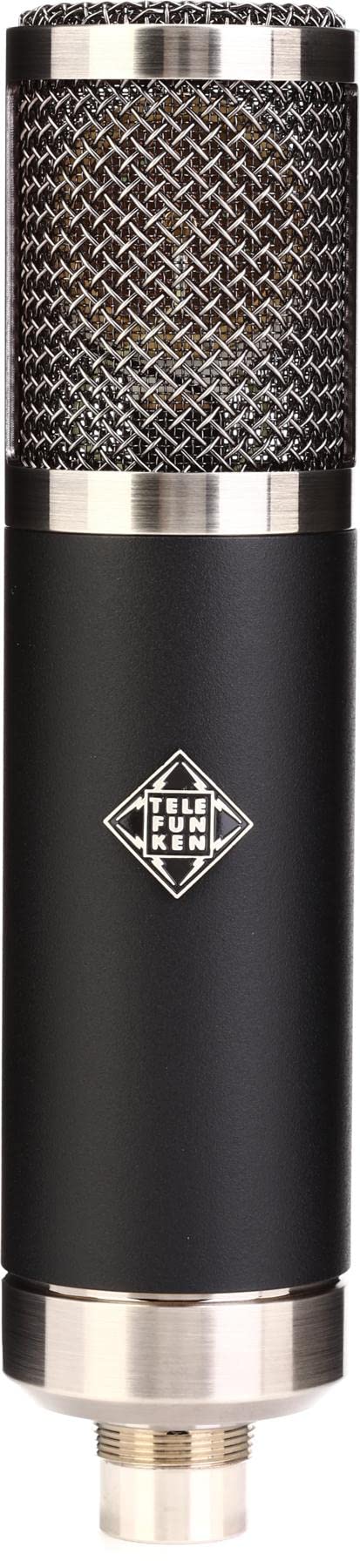

Telefunken TF47 Three-Pattern Large Diaphragm Microphone System

The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

Key Features

• Forward mid-range, reminiscent of the U47
• Smooth and detailed top end
• Full and round low end
• Hand assembled in the USA
• K47-style capsule and BV8 transformer, similar to the U47

Technical Specifications

Type
Condenser Pressure Gradient
Capsule
TK47 Center Terminated Diaphragm
Tube Type
5840W (New Old Stock)
Transformer
Custom Wound TELEFUNKEN BV8
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20Hz – 20kHz
Sensitivity
22 mV/Pa
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300
Maximum SPL (for 1% THD)
125 dB
S/N Ratio
84 dBA
Self Noise (Amplifier)
10 dBA
Dimensions/Size
200 mm L x 46 mm Dia
Weight
710 g
Current Draw from Mains
50 mA
Power Supply
M 903 PSU – 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
Cable
M 803 – 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
Shock Mount
M 703 – Shock Mount, M 782 – Stand Mount
Flight Case
ZC03 – Light Weight Carrying Case
