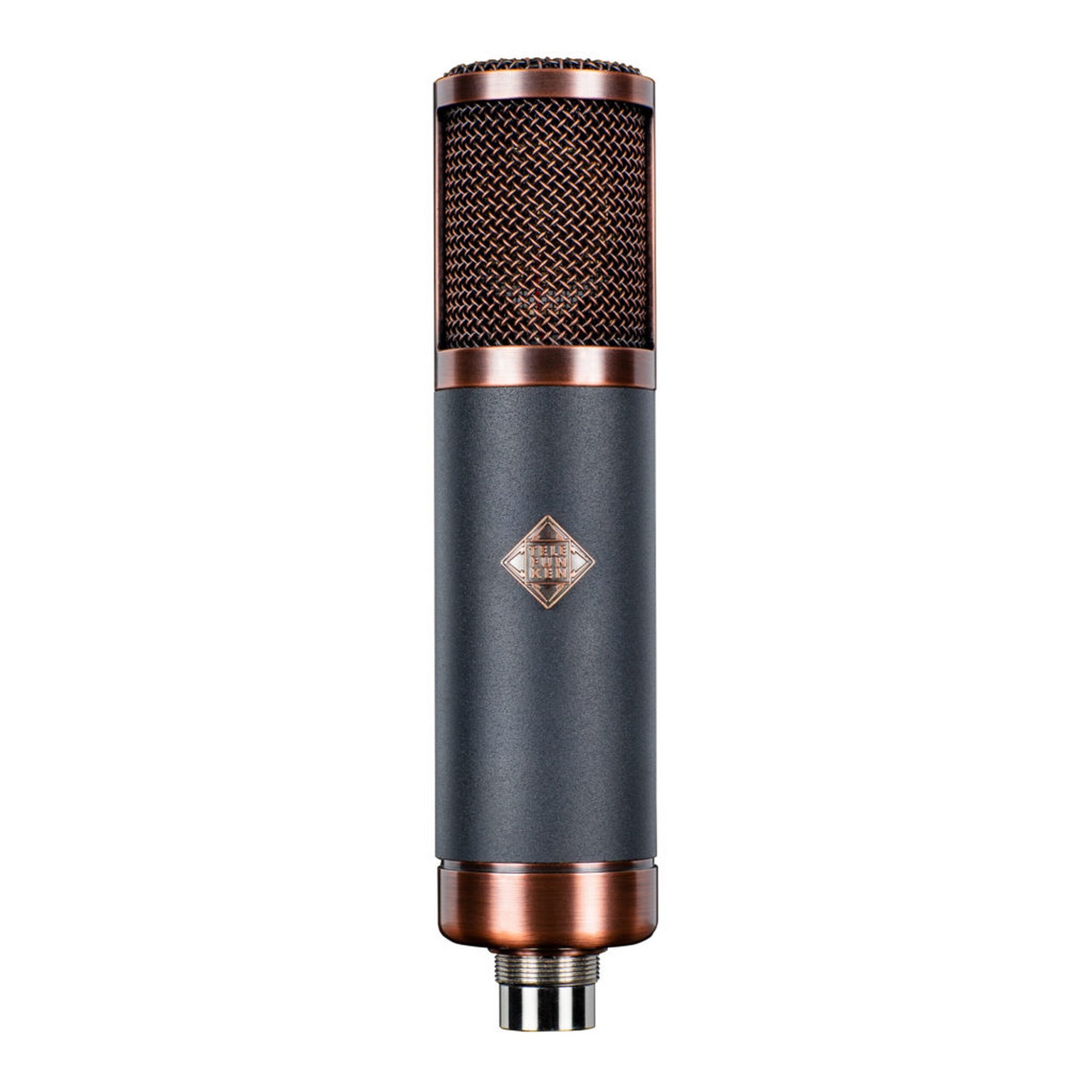

Telefunken TF39 Three-Pattern Large Diaphragm Microphone System

The TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.

Key Features

• Designed and assembled by hand in the USA
• Pleasant, natural mid range
• Extended low frequency response
• Stand out antique copper finish
• Premium EU-made Lundahl transformer

Technical Specifications

Type
Condenser Pressure Gradient
Capsule
TK67 Center Terminated Diaphragm
Tube Type
5654W (New Old Stock)
Transformer
Lundahl LL 1935
Polar Pattern
Cardioid, Omnidirectional, Figure-8
Frequency Range
20Hz – 20kHz
Sensitivity
17mV/Pa
THD at 1kHZ at 1Pa (Amplifier)
< 0.3%
Output Impedance
< 300
Maximum SPL (for 1% THD)
130 dB
S/N Ratio
87 dBA
Self Noise (Amplifier)
7 dBA
Dimensions/Size
200 mm L x 46 mm Dia
Weight
650 g
Current Draw from Mains
50 mA
Power Supply
M 903 PSU – 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
Cable
M 803 – 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
Shock Mount
M 703 – Shock Mount, M 782 – Stand Mount
Flight Case
ZC03 – Light Weight Carrying Case
