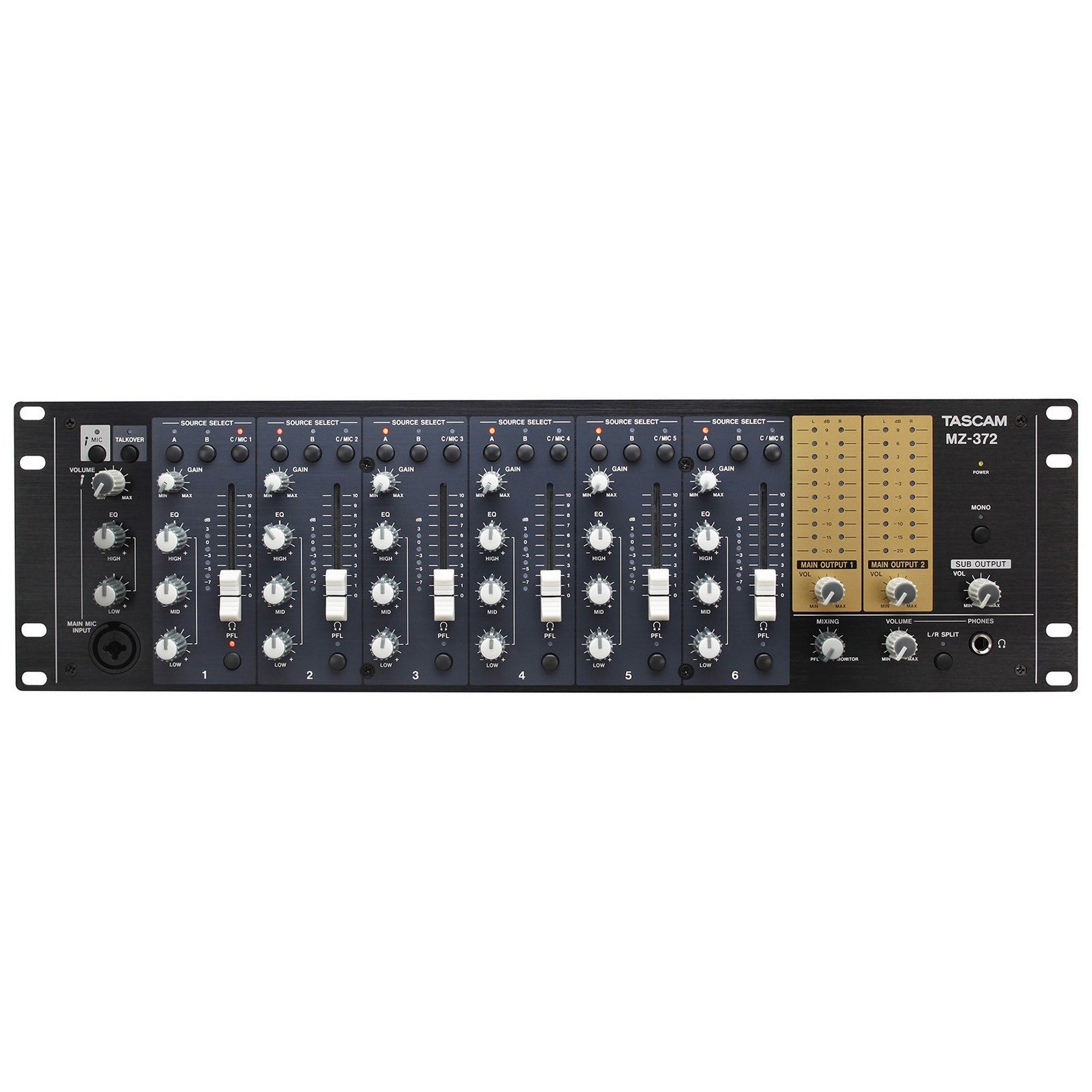

Tascam MZ-372 Industrial-Grade Audio Zone Mixer

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexibility, source content can include music, spoken word (microphone), turntable, and more all easily controlled via familiar sliders and assignment controls.

Key Features

• The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to 2 redundant outputs, controlled by familiar volume sliders and assignment buttons
• Input signals can be inserted via 6 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs, and 6 XLR inputs for a total of 12 sets of RCA inputs and 6 XLR inputs
• In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable
• Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system
• Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up

Technical Specifications

MAIN MIC INPUT (Balanced)
Connectors
XLR 3-31 / 1/4″ (6.3mm) TRS combo jack × 1
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal input level
VOLUME knob at MAX
-65dBu
VOLUME knob at MIN
-30dBu
Input impedance
33k
MIC INPUTS (Balanced)
Connectors
XLR 3-31 × 6 (1: GND, 2: HOT, 3: COLD)
Set to MIC
Maximum input level
-30dBu
Minimum input level
-65dBu
Input impedance
33k
Set to LINE
Maximum input level
-1dBu
Minimum input level
20dBu
Input impedance
22k
LINE INPUTS (Unbalanced)
Connectors
RCA Pin jack × 12 pairs
Nominal input level
-10dBV
Maximum input level
10dBV
Input impedance
22k
Audio outputs
MAIN OUTPUTS (Unbalanced)
Connectors
RCA Pin jack × 2 pairs
Rated output level
-10dBV
Maximum output level
6dBV
Output impedance
200
MAIN OUTPUTS (Balanced)
Connectors
XLR 3-31 × 2 pairs (1: GND, 2: HOT, 3: COLD)
Rated output level
4dBu
Maximum output level
24dBu
Output impedance
200
SUB OUTPUT
Connectors
RCA Pin jack × 1 pair
Rated output level
-16 dBV
Maximum output level
0dBV
Output impedance
200
MONITOR OUT
Connectors
RCA Pin jack × 1 pair
Rated output level
-16 dBV
Maximum output level
0 dBV
Output impedance
200
PHONES
Connectors
1/4″ (6.3mm) Stereo phone jack × 1
Maximum output
50mW + 50mW (into 32 load?
Power
Dedicated AC adapter (TASCAM PS-M1524)
Input voltage
AC 100 – 240V, 50/60Hz
Output voltage
DC 15V
Output current
2.4A
Power consumption
35W
Dimensions (W×H×D)
19.0″ × 5.2″ × 3.7″ / 482 × 132 × 93.2 mm
Weight
7.1 lbs. / 3.2 kg
Accessory
AC adapter (TASCAM PS-M1524), Cord for AC adapter (JAPAN USA/EUROPE) × each1, Rackmount screw kit, Owner’s Manual (including warranty)
