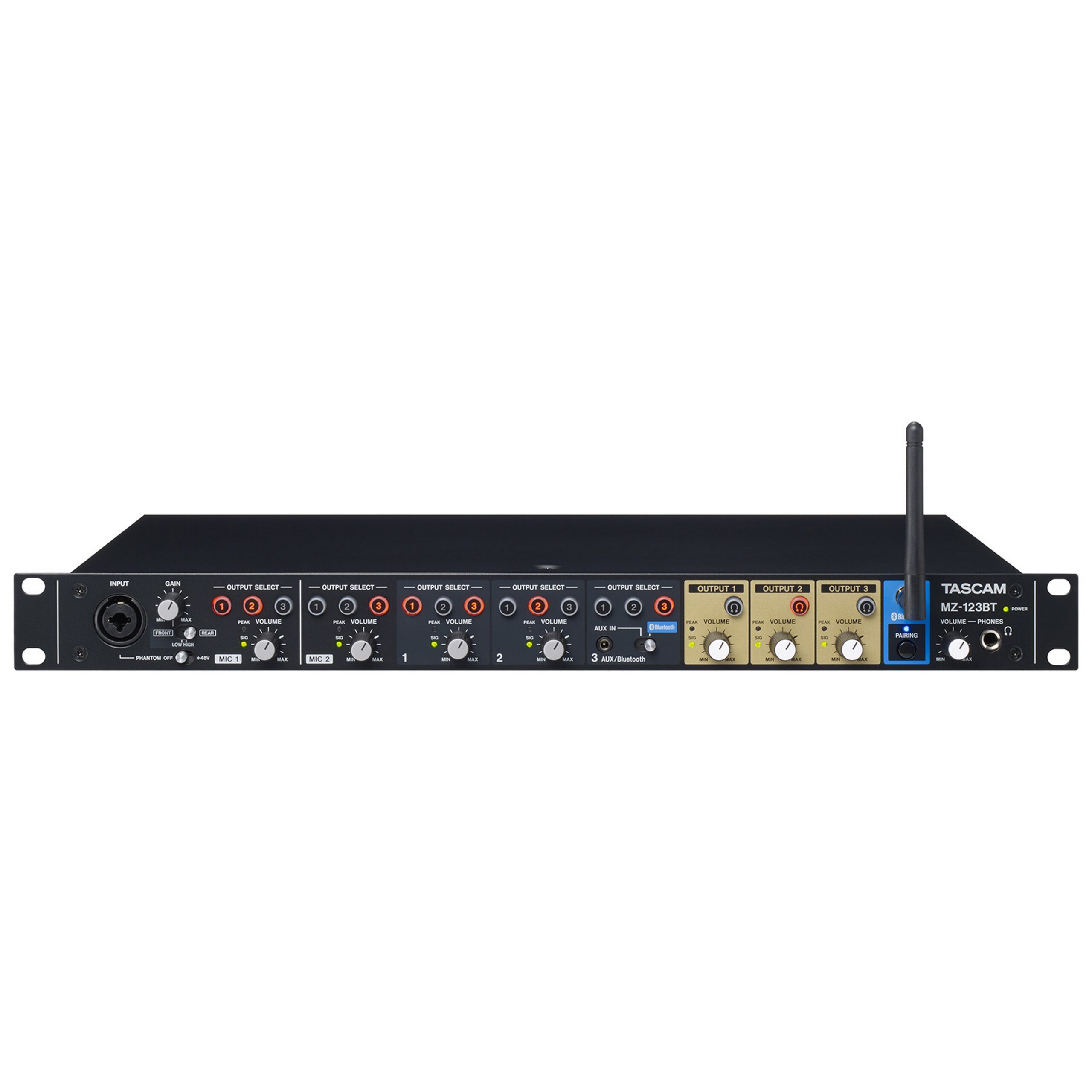

Tascam MZ-123BT 3 Channel Commercial Grade Multi-Zone Audio Mixer

The Tascam MZ-123BT is an incredibly versatile and high-performing multi-zone audio mixer designed to meet the demands of various commercial environments. With its compact 1U rack-mount size, the MZ-123BT offers an efficient and organized solution for managing audio distributions across multiple zones, making it a perfect choice for retail spaces, restaurants, bars, cafes, hotels, and more. Equipped with advanced Bluetooth capabilities, users can enjoy seamless wireless connectivity along with two versatile mic inputs, ensuring clear and intelligible audio for announcements and paging. Its intuitive layout guarantees ease of operation, allowing users to assign input channels to innavidual zone outputs swiftly and effortlessly.

This professional-grade mixer features three input channels and a ‘Talk Over’ function that automatically attenuates background music during announcements, ensuring superior audibility. The MZ-123BT is a powerhouse when it comes to routing, mixing, and distributing audio efficiently. It also includes a headphone jack for monitoring each output channel, providing additional convenience and control. Whether you’re managing a bustling restaurant or need an efficient audio solution for a large retail store, the Tascam MZ-123BT delivers reliable performance with excellent sound quality and operational simplicity.

Key Features

• Input channel sources can be easily assigned to each of the innavidual 3 zone outputs
• Three input channels for versatile audio management
• Two mic inputs for announcements or Talk Over
• Talk Over feature enables automatic background music volume attenuation in desired zone when mic audio is detected
• Headphone jack enables monitoring of each output channel
• Compact 1U rack-mount size
• Bluetooth-enabled for seamless wireless connectivity

Specifications

• Audio inputs: MIC INPUT (BALANCED) jack (front)
• Connector: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD), 6.3mm (1/4 in) standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
• Rated input level: -26dBu (0.039 Vrms, when FRONT HIGH) -2dBu (0.616 Vrms, when FRONT LOW)
• Maximum input level: -10dBu (0.245 Vrms, when FRONT HIGH) +14dBu (3.884 Vrms, when FRONT LOW)
• Minimum input level: -65dBu (0.0004 Vrms, when FRONT HIGH) -41dBu (0.007 Vrms, when FRONT LOW)
• Gain adjustment range: 39dB
• Input impedance: 2.4kOHMS
• MIC IN 1-2 (BALANCED) connectors (rear)
• Connectors: Euroblock (balanced) 3.81mm pitch
• Rated input level: -26dBu (0.039 Vrms, when PAD switch OFF) -2dBu (0.616 Vrms, when PAD switch ON)
• Maximum input level: -10dBu (0.245 Vrms, when PAD switch OFF) +14dBu (3.884 Vrms, when PAD switch ON)
• Minimum input level: -65dBu (0.0004 Vrms, when PAD switch OFF) -41dBu (0.007 Vrms, when PAD switch ON)
• Gain adjustment range: 39dB
• Input impedance: 2.4kOHMS
• LINE INPUTS 1-2 (UNBALANCED) connectors (rear)
• Connectors: RCA pin jacks
• Nominal input level: -10dBV (0.316 Vrms)
• Maximum input level: +6dBV (2.0 Vrms)
• Gain adjustment range: -16dB to +16dB
• Input impedance: 10kOHMS or higher
• AUX IN (UNBALANCED) jack (front)
• Connector: 3.5mm (1/8 in) stereo mini jack
• Nominal input level: -20dBV (0.1 Vrms)
• Maximum input level: -4dBV (0.63 Vrms)
• Input impedance: 10kOHMS or higher
• Audio outputs: OUTPUTS (BALANCED) connectors
• Connectors: Euroblock (balanced) 3.81mm pitch
• Rated output level: +4dBu (1.228 Vrms, when VOLUME knob at 0 dB)
• Maximum output level: +24dBu (12.282 Vrms)
• Output impedance: 200OHMS
• PHONES jack
• Connectors: 6.3mm (1/4 in) standard stereo jack
• Maximum output: 80mW + 80mW or higher (THD+N 0.1 percent or less, into 32OHMS load)
• Bluetooth version: 4.2
• Output class: 2 (about 10m unobstructed transmission distance)
• Supported profile: A2DP
• Supported A2DP codecs: SBC, AAC, Qualcomm aptX audio
• Supported A2DP content protection: SCMS-T
• Power: AC 100V – 240V, 50/60Hz
• Power consumption: 25 W
• Dimensions: 483 – 46.5 – 274.8mm (W x H x D, including protrusions, excluding Bluetooth antenna)
• Weight: 3.0 kg
• Operating temperature range: 0 – 40C (32 – 104F)

Package Contents

• Power cord
• Euroblock plug – 8
• Cable band kit – 1
• Rackmount screw kit – 1
• Owner’s Manual (including warranty) – 1
• Bluetooth Antenna – 1
