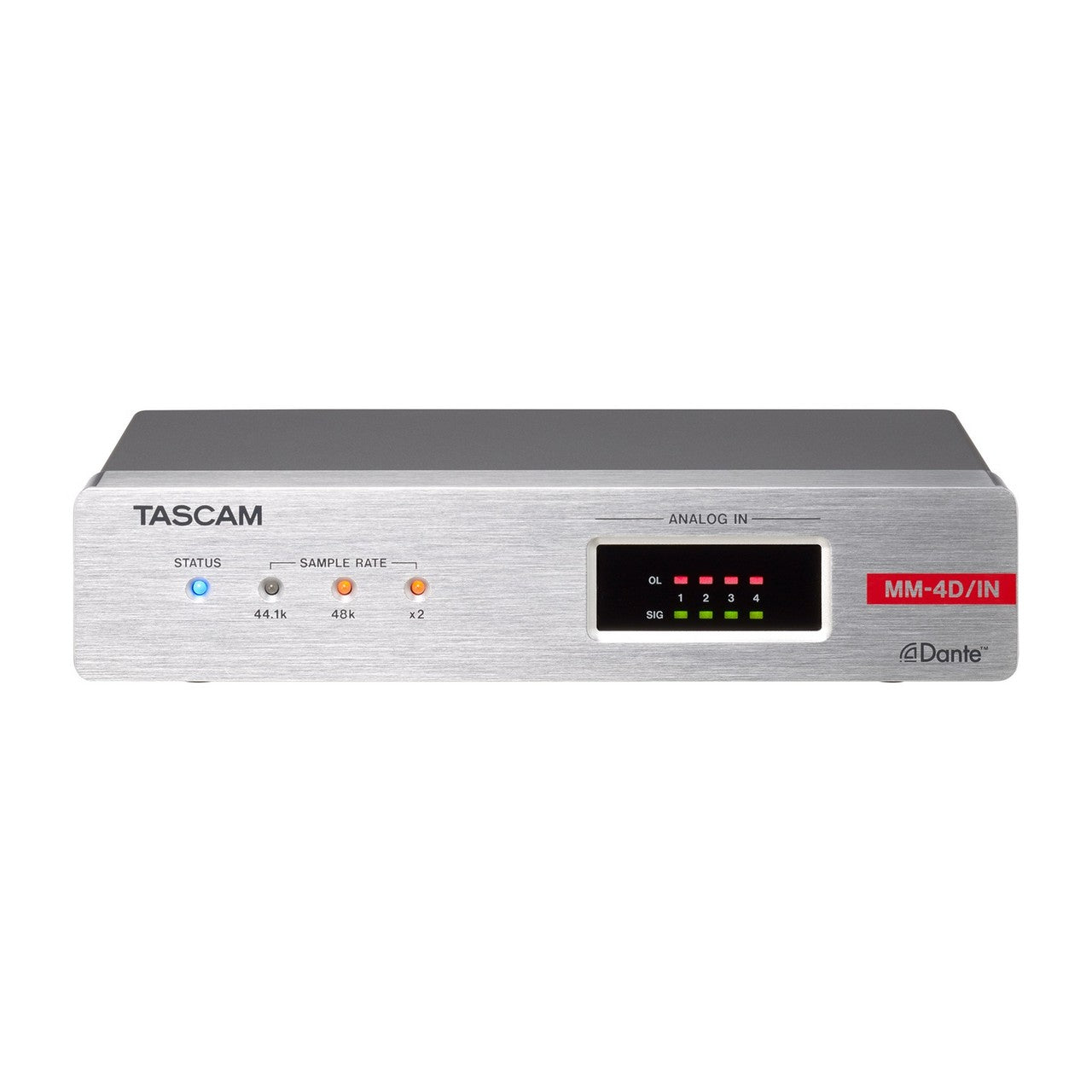

Tascam MM-4D/IN-X 4-Channel Mic / Line Input Dante Converter with Built-in DSP Mixer

The Tascam MM-4D/IN-X is a versatile and compact 4-channel mic/line input Dante converter designed for professionals who demand high-quality audio conversion and performance. In just half the size of a standard 1U rack, this converter is perfect for integrating into various Dante systems, serving as a sophisticated analog output unit. The built-in DSP mixer empowers small-scale systems with a range of input/output model functionalities offered by the TASCAM Dante Compact Processor Series. Supporting up to 96kHz/24bit resolution and featuring XLR connectors for analog mic/line inputs, the MM-4D/IN-X delivers exceptional sound fidelity and flexibility.

The MM-4D/IN-X is ideal for environments where space is a premium and high-performance audio connectivity is required. Its compatibility with Dante Domain Manager and Dante AES67 mode ensures seamless integration into larger and more complex audio networks. The onboard DSP functions and flexible scene preset capabilities make this unit perfect for various audio scenarios, from live events to recording studios. This model also supports PoE (Power over Ethernet), simplifying installations by reducing the need for additional power supplies. Additionally, the unit’s robust construction and indicator lights enable easy status monitoring and operation.

Key Features

• 4-channel mic/line input with phantom power (+48v) support
• Supports remote mic gain control
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz audio resolution
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
• Supports Dante daisy chain; allows two Dante Compact Processor models to be connected without a network switch
• Compatible with Dante Domain Manager and Dante AES67 Mode
• Flexible scene preset function allows operation in different area situations (Up to 50 presets)
• Timer event function for automatic scene switching (planned for future updates)
• Remote control via Dante
• Half-rack mountable size
• Equipped with indicators for LAN/Dante connection status and sample rate
• Equipped with signal indicators to monitor line input signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for under-desk installation included

Specifications

• Formats and channels: 44.1/48/88.2/96kHz, 16/24-bit, 2 channels
• Input/output ratings: DATA/DATA+PoE connectors
• Connector: RJ-45
• Transmission protocol: Dante
• Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
• Cables: category 5e or faster STP cables
• Analog IN connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
• Minimum input level: -70 dBu
• Maximum input level: +26 dBu
• Input impedance: 2.0 kΩ or higher
• Power: PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
• Power consumption: 7.5W
• Dimensions: 483 x 45 x 303.8 mm (W x H x D, including protrusions)
• Weight: 885 g
• Operating temperature range: 0°C-40°C

Package Contents

• MM-4D/IN-X 4-Channel Mic/Line Input Dante Converter
• Surface rack mountable angles for under-desk installation
• User manual
