Tascam MM-4D/IN-E 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer Extremely For Sale

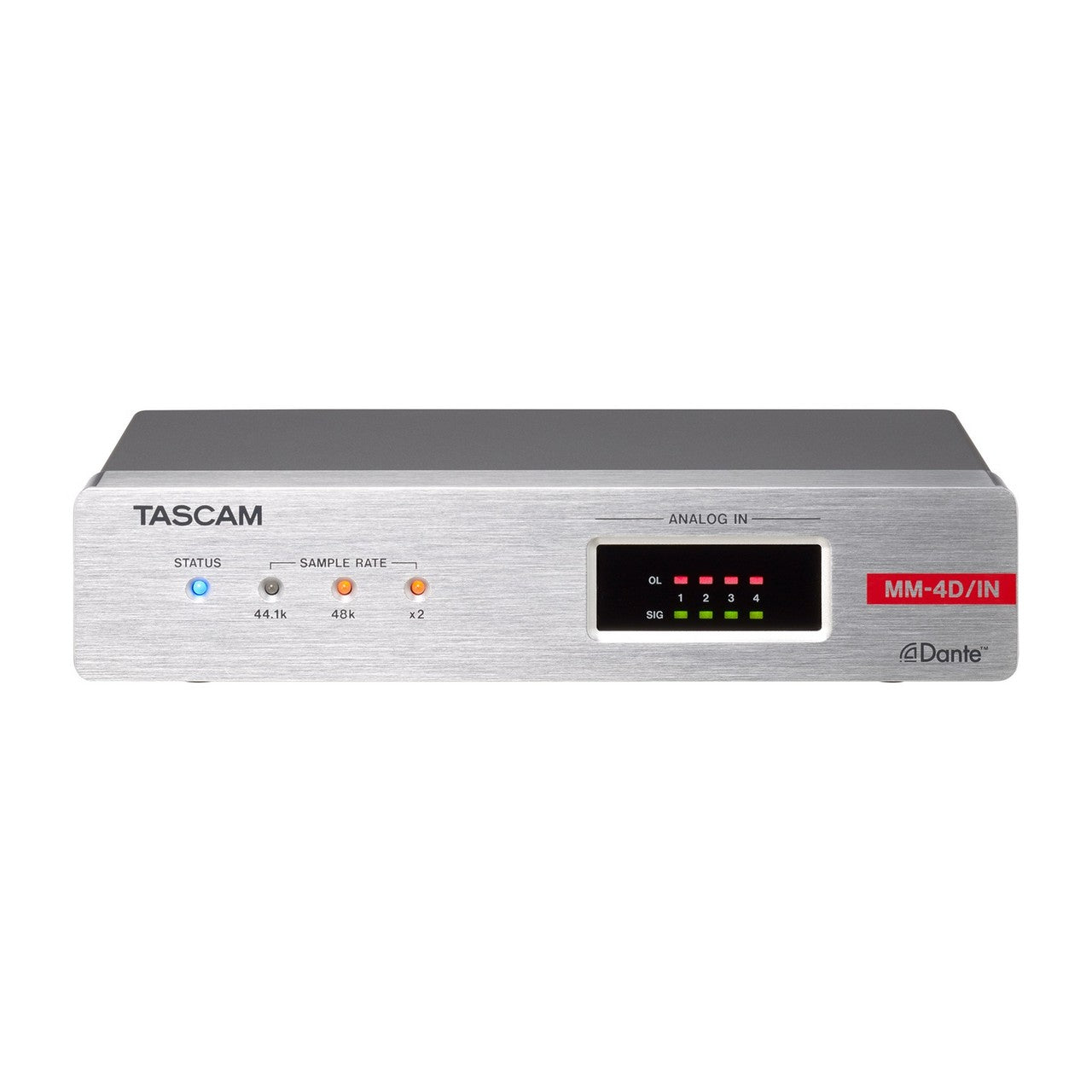

Tascam MM-4D/IN-E 4-Channel Mic/Line Input Dante Converter with Built-in DSP Mixer

The Tascam MM-4D/IN-E is a state-of-the-art 4-channel mic/line input converter designed to seamlessly integrate with Dante audio networks. With its compact, half-rack size, it is perfect for versatile setups and provides exceptional analog output for various Dante systems. The built-in DSP mixer adds unparalleled flexibility, making it an ideal choice for both small and large scale audio setups. This converter supports high-resolution audio up to 96kHz/24bit and uses Euroblock connectors for robust analog mic/line input.

Tailored for professional audio environments, the MM-4D/IN-E includes support for remote mic gain control and Power over Ethernet (PoE), simplifying installation and reducing cable clutter. The unit features a rich array of DSP functions, including output effects and an 8 in/4 out matrix mixer, making it adaptable to different scenes and environments. Whether you are setting up in a studio, live event, or broadcast situation, this powerful converter ensures top-tier sound performance.

Furthermore, the MM-4D/IN-E is future-proofed with features like Dante daisy chain compatibility and support for Dante Domain Manager and AES67 Mode. It offers flexible scene preset functions and a timer event feature that will automatically switch scenes at specified times, enhancing workflow efficiency. With remote control options via GPI and Dante, as well as surface rack mountable angles for under-desk installations, this unit is designed for ease of use and maximum operational efficiency.

Key Features

• 4-channel mic/line input with phantom power (+48v) support
• Supports remote mic gain control
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Includes DSP functions for optimal use in various environments (Output effects, 8 in/4 out matrix mixer)
• Supports Dante daisy chain
• Compatible with Dante Domain Manager and AES67 Mode
• Flexible scene preset function (Up to 50 presets)
• Timer event function for automatic scene switching (future update)
• Remote control via GPI and Dante
• Half-rack mountable size
• Indicators for LAN/Dante connection status and sample rate
• Signal indicators for line input monitoring
• Configurable reference level (remote control only)
• Surface rack mountable angles for under-desk installation

Specifications

• Formats and channels: 44.1/48/88.2/96kHz, 16/24-bit, 2 channels
• Connector: RJ-45, Dante Gigabit Ethernet standard 1000BASE-T
• Cables: Category 5e or faster STP cables
• Analog IN connectors: XLR-3-31, minimum input level -70 dBu, maximum input level +26 dBu, input impedance 2.0 k or higher
• Control input/output: Euroblock 3.81mm pitch
• LED connectors: Output format open collector (10 output impedance, 48V withstand voltage, 35mA maximum current)
• PoE class 0
• Dimensions: 483 x 45 x 303.8 mm (W x H x D, including protrusions)
• Weight: 885 g
• Operating temperature range: 0°C-40°C

Package Contents

• Tascam MM-4D/IN-E unit
• Euroblock connectors
• Installation manual
• Surface rack mountable angles
• Power supply (PoE or optional TASCAM PS-P1220E AC adapter sold separately)
