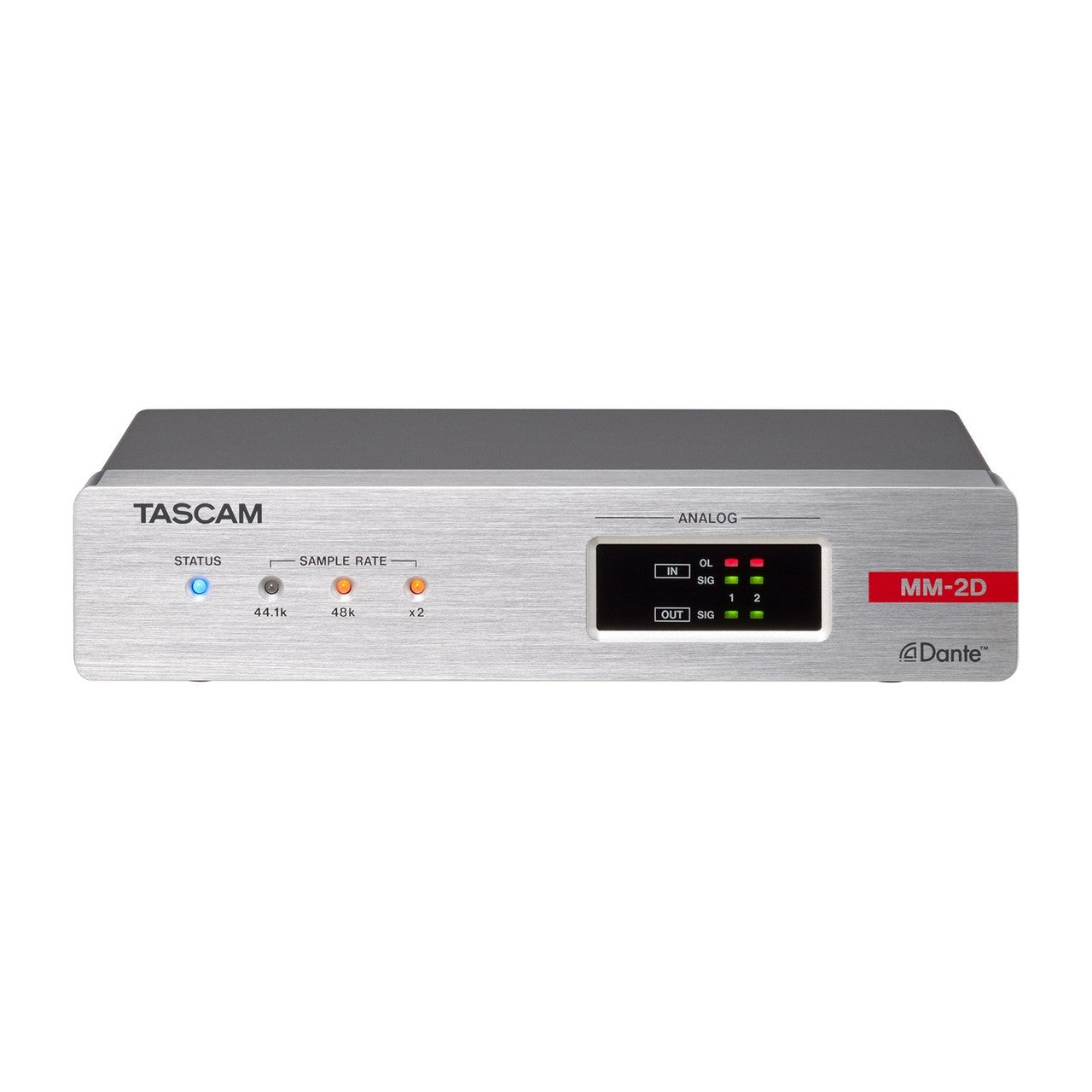

Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter with Built-in DSP Mixer

Discover the versatility and advanced functionality of the Tascam MM-2D-E 2-Channel Dante Converter with Built-in DSP Mixer. This state-of-the-art audio solution is designed for professionals who demand high-quality sound and efficient operation. Engineered with compactness in mind, it takes up only half the size of a standard 1U rack, making it an ideal choice for various audio systems. Transform your audio environment with the ability to convert 2-channel mic/line input/output signals into pristine Dante signals. With support for remote mic gain control, phantom power for microphone support, and PoE (Power over Ethernet), the MM-2D-E is built to deliver unparalleled performance in any setting.

The Tascam MM-2D-E offers a flexible solution for integrating analog audio devices into a Dante audio network. It features a built-in DSP mixer, allowing small-scale systems to achieve full functionality and performance. Supporting sample rates up to 96kHz/24-bit, this device ensures top-notch audio quality. The inclusion of a variety of DSP functions (such as output effects and a 6 in/4 out matrix mixer) allows you to adapt the MM-2D-E to a wide range of audio scenarios. Additionally, the device supports Dante daisy chaining, facilitating a seamless network of multiple Dante devices without the need for an additional network switch.

Designed with the user in mind, this converter features easily accessible Euroblock connectors for both input and output, as well as LEDs that display LAN/Dante connection status and sample rate. A flexible scene preset function, which allows for up to 50 different presets, and a timer event function for automatic scene switching (available in a future update) are also included. Ready for remote control via GPI and Dante, and equipped with indicators for monitoring line input/output signals, the Tascam MM-2D-E is the epitome of a user-friendly, professional-grade audio converter.

Key Features

• 2-channel mic/line input with phantom power (+48V) support
• Supports remote mic gain control
• 2 line outputs
• 4 Dante inputs/outputs
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz audio quality
• Incorporates a variety of DSP functions (output effects, 6 in/4 out matrix mixer)
• Supports Dante daisy chaining
• Compatible with Dante Domain Manager and Dante AES67 Mode
• Up to 50 scene presets
• Timer event function for automatic scene switching (future update)
• Remote control via GPI and Dante
• Half-rack mountable size
• LAN/Dante connection status and sample rate indicators
• Signal indicators for monitoring line input/output
• Configurable reference level
• Surface rack mountable angles for desk installation included

Specifications

• Formats and channels: 44.1/48/88.2/96kHz,16/24-bit, 2 channels
• Input/output ratings: DATA/DATA+PoE connectors
• Connector: RJ-45
• Transmission protocol: Dante
• Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
• Cables: Category 5e or faster STP cables
• Analog IN connectors: Euroblock (balanced) 3.81 mm pitch
• Minimum input level: -74 dBu
• Maximum input level: +26 dBu
• Input impedance: 2.0 kΩ or higher
• Analog OUT connectors: Euroblock (balanced) 3.81 mm pitch
• Nominal output levels: +4 dBu (when Ref. Level not -9 dBFS) +6 dBu (when Ref. Level set to -9 dBFS)
• Maximum output level (switchable): +15 dBu (Ref. Level: -9 dBFS) +18 dBu (Ref. Level: -14 dBFS) +20 dBu (Ref. Level: -16 dBFS) +22 dBu (Ref. Level: -18 dBFS) +24 dBu (Ref. Level: -20 dBFS)
• Output impedance: 200Ω or lower
• External control connectors (LED/SWITCH): Euroblock 3.81mm pitch
• Led connectors: Output format open collector (10Ω output impedance, 48V withstand voltage, 35mA maximum current), Low level maximum output voltage 0.5 V
• Switch connectors: Maximum input voltage 5.5 V, High level minimum input voltage 2.31 V, Low level maximum input voltage 0.99 V
• External control connectors (CONTROL): Euroblock 3.81mm pitch, 10V/CONTROL/GND connectors
• Power: PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
• Power consumption: 6W
• Dimensions: 483 x 45 x 303.8 mm (W x H x D, including protrusions)
• Weight: 878 g
• Operating temperature range: 0°C-40°C

Package Contents

• Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter
• Surface rack mountable angles for installation under desks
• User manual
