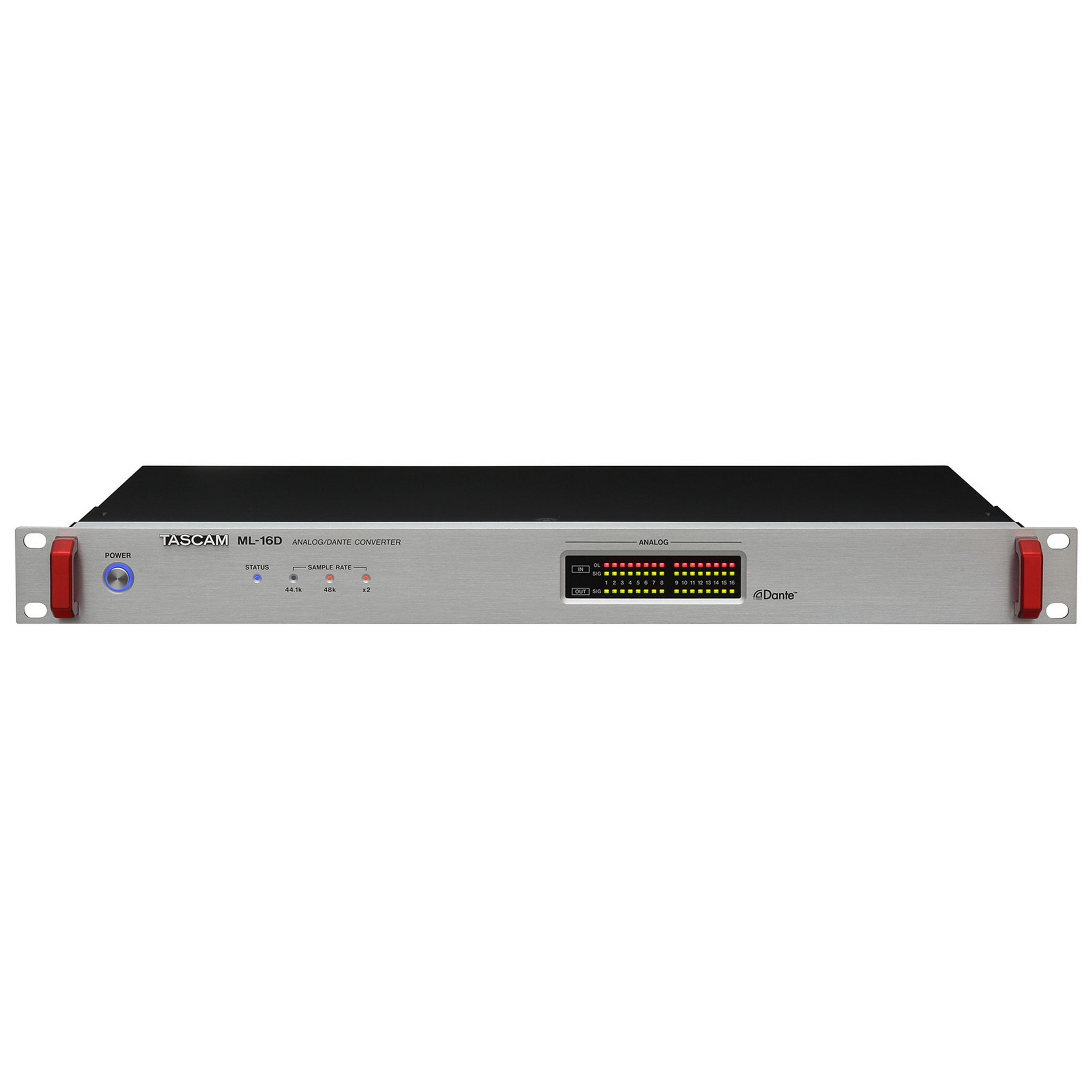

Tascam ML-16D 16-Channel Analog/Dante Converter

The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.

Key Features

• Dante focused interface for connection of external audio into or out of a Dante audio network
• 16 channel analog line input and 16 analog line outputs (48k/96kHz) using four D-Sub connectors
• Up to 96kHz/24-bit quality
• Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
• Reference level dip switches for selectable DBu level metering
• LED display for signal level and overload per input/output channel
• Firmware updatable via Dante port
• Equipped with D-sub 25-pin connectors as line input/output connectors
• 1U rack mount size

Technical Specifications

Formats
Sampling frequency
44.1k / 48k / 88.2k / 96k Hz
Quantization bit rate
16 / 24-bit
Analog Inputs/Outputs
LINE INPUTS
Connector
D-sub 25pin female x 2
Locking screws
No.4-40 UNC (inch type)
Nominal input levels
+4dBu, +6dBu (only when maximum input level is +15dBu)
Maximum input levels
+24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
Input impedance
10kohms or higher
LINE OUTPUTS
Connector
D-sub 25pin female x 2
Connector
No.4-40 UNC (inch type)
Output impedance
200OHMS or lower
Applicable load impedance
2kOHMS or higher
Nominal output levels
+4dBu, +6dBu (only when maximum output level is +15dBu)
Maximum output levels
+24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
PRIMARY/SECONDARY
Connector
RJ-45 x 2
Transmission protocol
Dante
Gigabit Ethernet standard
1000BASE-T (IEEE 802.3ab)
Cables
Category 5e or faster STP cables
Power
AC 100 – 240V, 50/60Hz
Power consumption
14W
Dimensions (WxHxD)
19.0″ x 1.77″ x 11.96″ / 483 x 45 x 303.8 mm
Weight
7.3 lbs. / 3.3 kg
