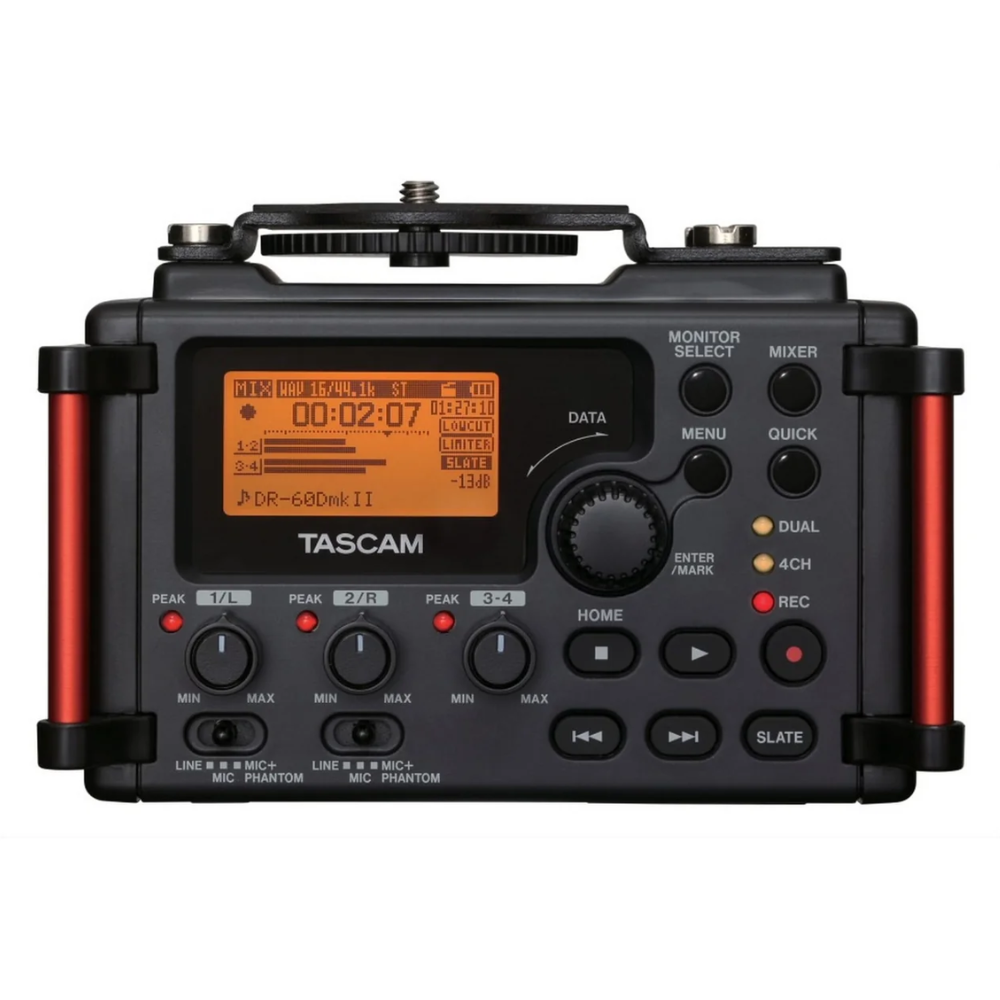

Tascam DR-60DMKII 4 Track Portable Recorder Designed for DSLR Filmmakers

The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8” stereo connector for wireless and lavaliere microphones.

Key Features

• Record to SD/SDHC card (Up to 32GB)
• Simultaneously record up to 4 tracks
• Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
• Recording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWF
• TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
• Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
• Two combo XLR/TRS inputs support +4dBu mic/line level input
• Phantom power to channels 1/2 (24V or 48VDC on XLRF)
• Plug-in power and high-output mic input supported on inputs 3-4
• CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
• CAMERA IN connector for sound monitoring from the camera
• Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
• 50mW/ch headphone amplifier
• Tripod mounting socket (bottom) and mounting screw attachment (top)
• Handles protect the screen and can be used to attach a shoulder strap
• Soft-Touch Rubber Keys for silent operation
• HOLD switch to prevent accidental operation
• QUICK button feature for easy access to various functions
• 128×64 pixel LCD with backlight
• USB 2.0 connection for high-speed transferring of files
• Mini USB cable included
• Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
• Can extend battery life with BP-6AA battery pack (sold separately)
• Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
• Internal mixer: PAN and LEVEL controls
• Low cut filter (40/80/120Hz)
• Limiter (1/L and 2/R can be selected for linked operation)
• Delay function for microphone distance adjustment (up to 150ms)
• M-S decode functionSlate tone generator (AUTO/MANUAL)
• Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
• Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
• File naming format can be set to use a user-defined word or date
• Dual-recording function allows two files to be recorded simultaneously at different levels
• Auto-record function can automatically start and stop recording at set leve
• lPre-recording function allows the unit to record a 2 second sound buffer before recording is activated
• Self-timer function for solo recording
• New file starts recording automatically without interruption when maximum file size is reached
• Track incrementing function allows a recording to be split by creating a new file when desired
• Jump back and play function
• Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
• Resume function to memorize the playback position before the unit is turned off
• MARK function up to 99 points per audio track
• DIVIDE function

Technical Specifications

Recording media
SD card (64MB to 2GB), SDHC card (4GB to 32GB)
Recording format
WAV
44.1k/48k/96k Hz, 16/24-bit
BWF
44.1k/48k/96k Hz, 16/24-bit
Number of channels
4-channel (stereo x2)
Analog audio input
1/L, 2/R connectors
Connector
XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4″ (6.3mm) TRS standard jack
Set to “MIC / MIC+PHANTOM”
Input impedance
2k
Phantom power
48V ±4V (10mA/CH) / 24V ±4V (10mA/CH)
Maximum input level
0dBu
Minimum input level
-72dBu
MIC input gain
TRIM MAX
LOW
+11dB
MID
+36dB
HIGH
+52dB
HIGH+PLUS
+64dB
Set to “LINE”
Input impedance
10k or more
Standard input level
+4dBu
Maximum input level
+24dBu
3-4 connector
Connector
1/8″ (3.5mm) stereo mini jack (this connector can be supplied plug-in power)
Input impedance
10k
Maximum input level
+10dBV
Minimum input level
-50dBV
MIC input gain
TRIM MAX
LOW
+3dB
HIGH
+26dB
HI + PLUS
+38dB
CAMERA IN connector
Connector
1/8″ (3.5mm) stereo mini jack
Input impedance
10k
Standard input level
-10dBV
Maximum input level
+6dBV
Analog audio output
CAMERA OUT connector
Connector
1/8″ (3.5mm) stereo mini jack
Output impedance
200
Standard output level
-50dBV
Maximum output level
-30dBV
LINE OUT connector
Connector
1/8″ (3.5mm) stereo mini jack
Output impedance
200
Standard output level
-10dBV
Maximum output level
+10dBV
PHONES connector
Connector
1/8″ (3.5mm) stereo mini jack
Maximum output level
50mW + 50mW
USB
Connector
Mini-B type
Format
USB2.0 HIGH SPEED mass storage class
REMOTE
Connector
2.5mm TRS jack
Power
Four AA batteries (Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter (TASCAM PS-P515U, sold separately),
Dedicated external battery pack (TASCAM BP-6AA, sold separately)
Power consumption
5.4W
Continuous operation time
2ch WAV, 44.1kHz, 16-bit Rec, *All times are approximate
DR-60D alone
Alkaline batteries (EVOLTA)
2-½ hours (Phantom ON)
4-½ hours (Phantom OFF)
NI-MH batteries (eneloop)
3-¼ hours (Phantom ON)
5 hours (Phantom OFF)
NI-MH batteries (eneloop pro)
3-¾ hours (Phantom ON)
6 hours (Phantom OFF)
DR-60D with BP-6AA
Alkaline batteries (EVOLTA)
5-½ hours (Phantom ON)
10-½ hours (Phantom OFF)
NI-MH batteries (eneloop)
7-½ hours (Phantom ON)
12 hours (Phantom OFF)
NI-MH batteries (eneloop pro)
9-½ hours (Phantom ON)
14-½ hours (Phantom OFF)
Dimensions (W×H×D)
5.2″ × 3.7″ × 3.1″ / 133 × 93.2 × 78 mm (with the top adapter attached)
Weight
1.12 lbs. / 510 g (excluding batteries)
Operating temperature
32 Degrees F to 104 Degrees F / 0 Degrees C to 40Degrees C
Standard accessories
USB cable, warranty card, Owner’s manual
