Tascam DR-10X Plug-on Micro Linear PCM Recorder

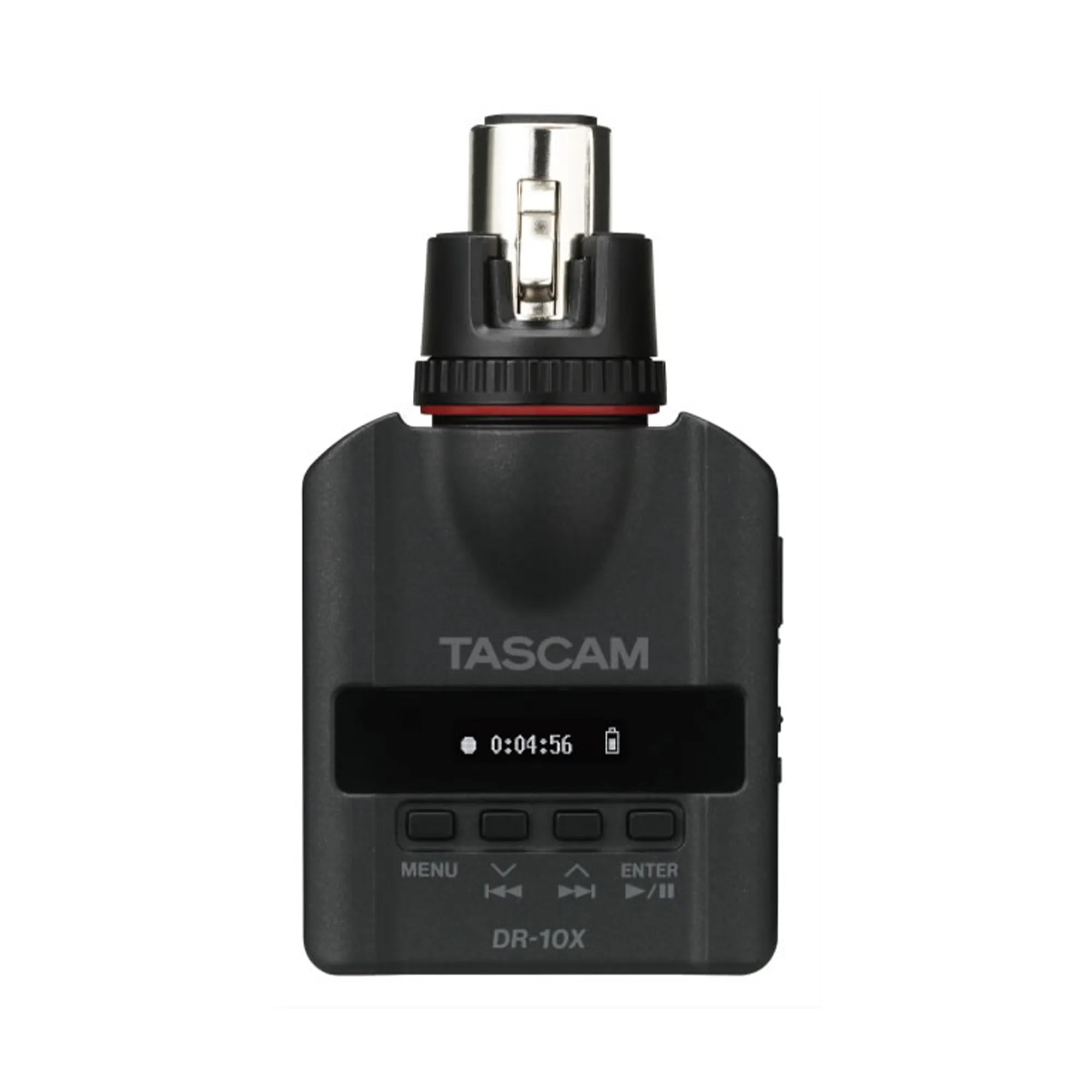

TASCAM’s compact DR-10X attaches to a handheld microphone for the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution. Offload recordings through the microUSB connection or by removing the microSD card.

The DR-10X has both manual and automatic gain settings, with a low cut filter and limiter to prevent overloads. The Dual Recording mode captures a copy of the audio at a lower level, so if there is distortion you have a backup safety. Recording can begin instantly by holding the record side switch while turning the unit on.
For simple-to-use ENG recording that stays out of the way, TASCAM’s DR-10X leads the field.

Key Features

• XLR plug-on connection
• Compatible with dynamic mics as well as bettery-powered condenser mics
• 48kHz/24-bit linear PCM mono recording
• WAV files (compatible with BWF format)
• Media: microSD/SDHC cards (supports 32GB capacities)
• Sliding record switch and hold function to prevent misoperation during recording
• Dual recording function
• automatic file closing function to prevent the loss of already recorded data
• XLR connector also can use as external input for external input
• High/Mid/Low recording level settings
• Low-cut filter
• Limiter
• Automatic level function
• With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
• Time track incrementing function can create new files at regular intervals (every 15 minutes) during recording
• Playback function allows recorded data to be checked immediately
• Headphone output
• Locking mechanism assure a tight connection with the microphone body
• Easy-to-read organic EL display
• micro USB B port enables easy data exchange with computers
• Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
• UnIt’settings can be created and transferred as a computer text file
• Settings can be transferred between multiple DR-10X units using the infrared transmission function
• Firmware can be updated using a microSD card
• RoHS-compliant product

Technical Specifications

Recording Media
microSD card(64MB to 2GB),
microSDHC card(4GB to 32GB)
Media Discharging
Push-Push type (Guard cover mounted)
Recording Format
WAV(BWF)
Sampling frequency: 48kHz
Quantization bit rate: 24bit
Number of Channels
1-channel (Mono)
Analog Audio INPUTS
Connector: XLR-3-31
Input Impedance: 10k ohm or more
MIC input gain: LOW / MID / HIGH
PHONES
Connector: 3.5mm(1/8″) stereo mini jack (DUAL MONO)
USB
Connector: Micro-B type 4pin
Maximum Output: USB2.0 HIGH SPEED mass storage class
Power
1 AAA batteries (Alkaline or NiMH),
USB bus power
Battery Operation Time
Alkaline batteries (EVOLTA): About 10 hours
Battery (RTC)
Lithium × 1(built in with soldering)
Dimensions
52(W) × 94.4(H) × 28(D) mm
Weight
68.3g (including batteries) / 56.3g (without batteries)
Accessories
USB cable, Owner’s Manual (including warranty)
