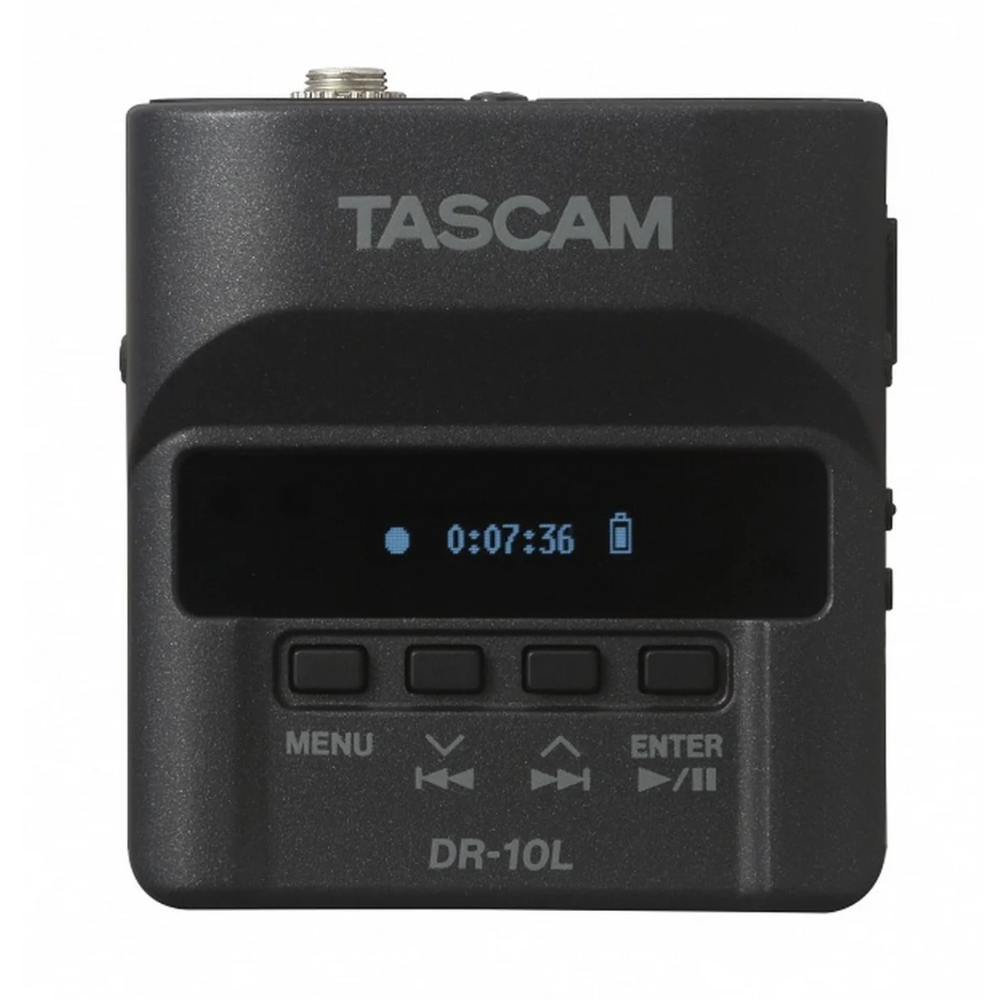

Tascam DR-10L Digital Audio Recorder with Lavalier Microphone

The TASCAM DR-10L is an ultra-compact, incredibly convenient digital recorder/lavalier microphone combo. For added flexibility, the included wired lavalier microphone is affixed via a 1/8” screw-down lock connector compatible with most Sennheiser lavalier mics and mics with the same connector.

Designed for both the creative filmmaker and the busy videographer, the DR-10L is an immensely powerful problem-solving tool, delivering professional sonics and revolutionary convenience.

Ideal for location recording, a DR-10L can be mounted to each on camera actor, removing the need for booms, wires or expensive (an unpredictable) wireless systems. Perfect or live events, a DR-10L can be worn by each and every member of even the biggest wedding party to ensure that every last word is captured. And lastly, the combination of a portable, high quality digital recorder and a tiny, professionally spec’d microphone makes the DR-10L an inspiring tool for the experimental audio designer.

Key Features

• 44.1kHz/48kHz, 16/24-bit linear PCM mono/poly recording
• Supports WAV format (compatible with BWF format)
• Media: microSD/SDHC cards (supports 32GB capacities)
• Lavalier microphone with microphone clip and windscreen included (cable length: 160cm)
• Sliding record switch and hold function to prevent misoperation during recording
• Dual recording function
• Automatic file closing function to prevent the loss of already recorded data
• Low/Mid Low/Mid/High/High plus recording level settings
• Low-cut filter
• Limiter
• Automatic level function
• Built-in clock function, supports BWF files with included time information – convenient for editing and searching
• Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
• Playback function allows recorded data to be checked immediately
• Headphone output
• Easy-to-read organic EL display
• micro USB B port enables easy data exchange with computers
• Records at least 10 hours on a single AAA battery * using alkaline batteries (EVOLTA)
• UnIt’settings can be created as a computer text file
• Firmware can be updated using a microSD card
• Belt clip included
• Custom case for storing the unit and accessories included
• RoHS-compliant product

Technical Specifications

Recording Media
microSD card(64MB to 2GB),
microSDHC card(4GB to 32GB)
Recording Format
WAV(BWF)
Sampling Frequency
44.1kHz, 48kHz
Quantization Bit Rate
16/24bit
Analog Audio Inputs
Connector: 1/8” (3.5mm) mini TRS JACKwith screw-down lock
MIC input gain: LOW / MID LOW / MID / HIGH / HIGH+
Maximum Input Sound Pressure
115dB SPL
Maximum Input Level
-15dBu (Gain L)
Minimum Input Level
-55dBu (Gain H+)
Mic Input Gain
+14dB to +38dB
Input Impedance
33kohm (mic bias off) / 2kohm (mic bias on)
PHONES
Connector: 3.5mm(1/8″) stereo mini jack
USB
Connector: Micro-B type 4pin
Protocol: USB2.0 HIGH SPEED mass storage class
Power
1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery),
USB bus power
Power Consumption
0.45W
Battery Operation Time
WAV,24 bit / 48kHz Rec, without headphones, limiter : OFF , Dual Rec : OFF , JEITA Rec
Alkaline battery (EVOLTA): Approx 10 hours
Ni-MH battery (eneloop): Approx 8 hours
lithium battery (Energizer ULTIMATE LITHIUM): Approx 15.5 hours
Battery (RTC)
Lithium × 1(built in with soldering)
Dimensions
52(W) × 55.6(H) × 24.4(D) mm
2.0(W) × 2.2(H) × 1.0(D) inch
Weight
2.2oz (63g) including battery / 1.79oz (51g) without battery
Operating Temperature
0 deg C to 40 deg C
Accessories
Lavaliere microphone with microphone clip and windscreen, USB cable, Carrying case, Belt Clip, Owner’s Manual (including warranty)
