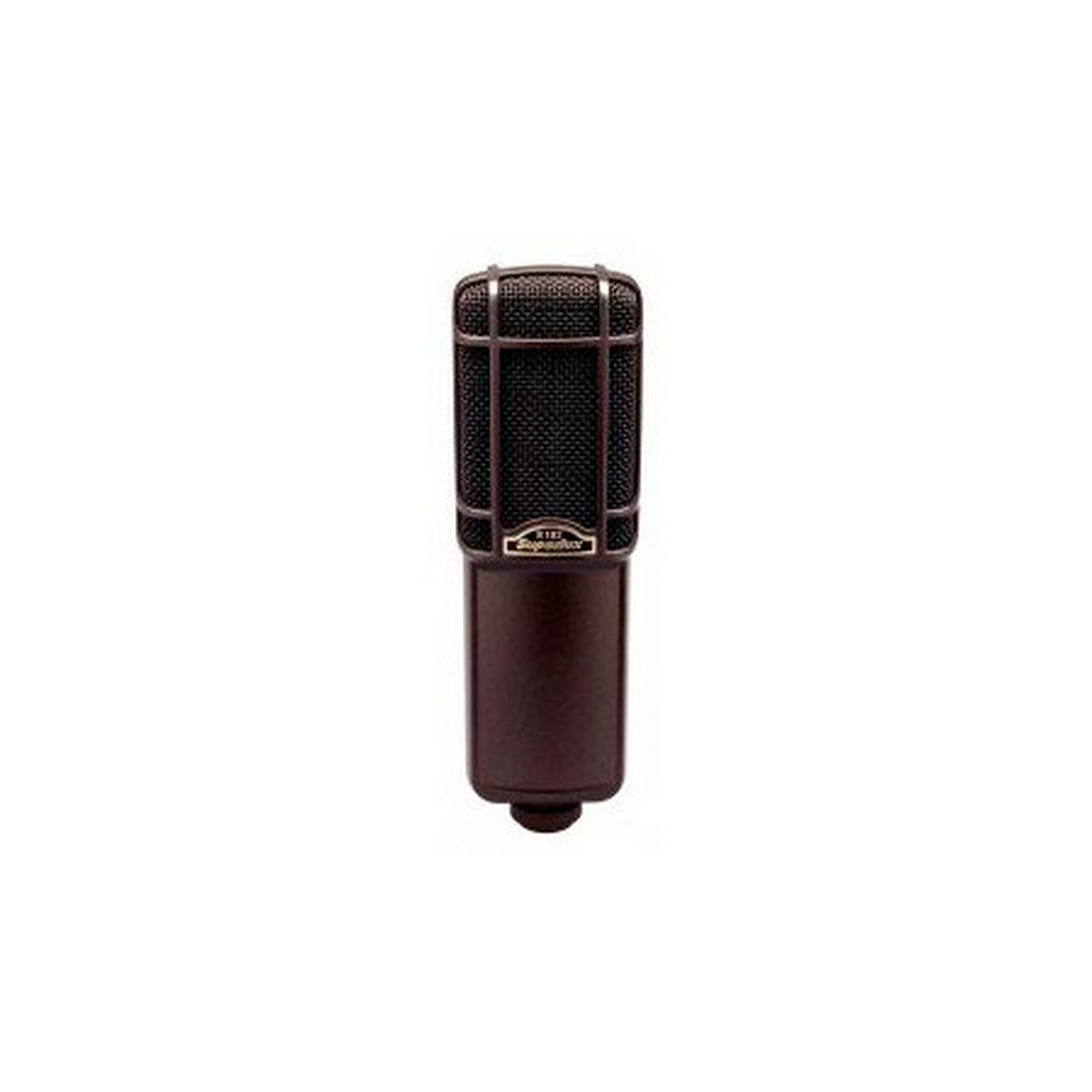

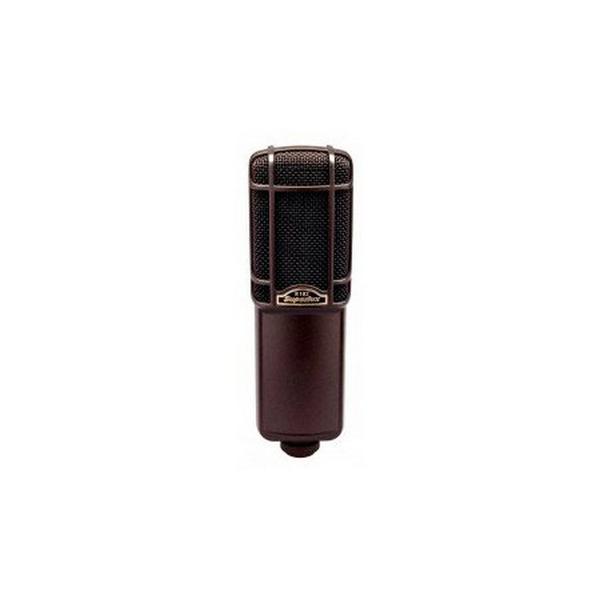

Superlux R102 Ribbon Microphone

The R102 is an active aluminum ribbon microphone designed for the recording studio. It features the high sensitivity of a condenser microphone, yet exhibits the smoother frequency response and excellent transient response of a ribbon microphone. The fast dynamic response of a ribbon mic is optimal among all types of microphones.

The R102 active aluminum ribbon microphone consists of two parts
an electro-magnetic transducer and an impedance converting circuit. The electro-magnetic transducer applies a unique magnetic circuit field with a strong Nd magnet. The aluminum alloy ribbon, with a thickness of only 2.5 microns, is suspended between two poles and vibrates in synchrony with the incoming acoustical energy (sound waves). Due to the extremely low mass of the ribbon, the transducer of this microphone boasts a premium transient response in converting acoustic energy into electronic signals. Whether at low / high frequencies or low / high sound pressure levels, the R102 delivers a precise reproduction of the original sound.

Key Features

• High sensitivity, wide dynamic range, low distortion and decreased noise
• Stable performance regardless of ambient temperature or humidity
• Figure 8 polar pattern with identical sensitivity at the front and back
• Easy field replaceable modular ribbon assembly

Technical Specifications

Type
Aluminum Ribbon
Element
Active pressure gradient electro-magnetic transducer
Diaphragm
Aluminum ribbon of 2.5micron
Magnet
Strong Nd
Polar Pattern
Fig. 8
Frequency Response
20~15,000Hz
Sensitivity
-40dBV/Pa (10 mV/Pa) at 1,000Hz
Rated Load Impedance
>1,000
Max. SPL
>140dB
Equivalent Noise Level
<20dB
Power Supply
48V Phantom Power only
Current Drain
4mA
Connector
3-pin XLR-Male Type
Dimensions
57mm x 37mm x 195mm (h)
Weight
500g
