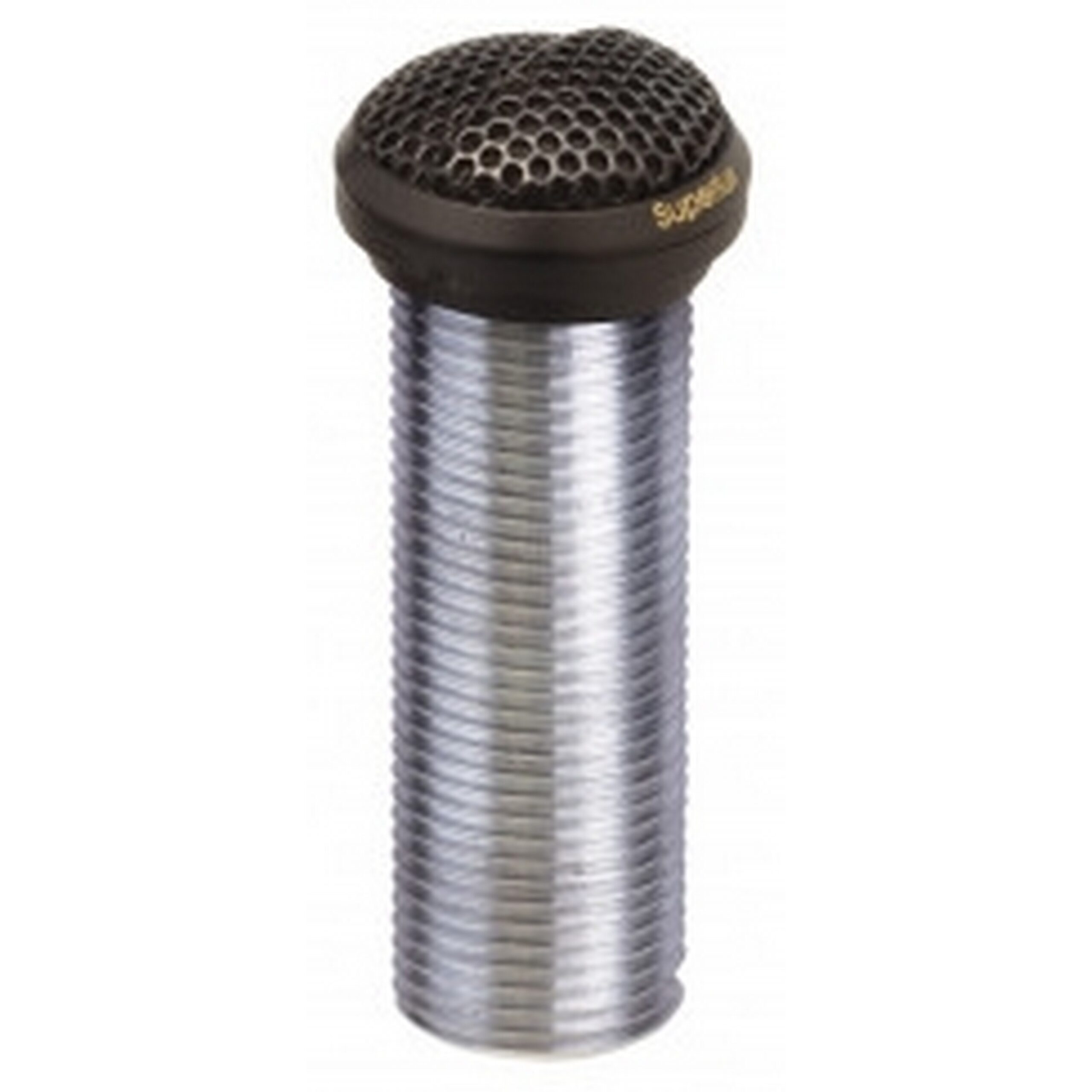

Superlux E323 Flush-Mount Cardioid Boundary Microphone, Black

The Superlux family of boundary microphones represent exceptional value and performance in the installed sound, sound reinforcement and recording environments.

The E323 is a professional solution for teleconferencing, distance learning, courtroom, conference and meeting rooms, stage, council chambers and worship applications.

Designed for ultra low profile permanent table, ceiling or panel mount applications the E323 is elegant and unobtrusive. It features a back electret cardioid condenser, wide dynamic range, low noise balanced inline preamplifier and XLR connectivity.

The Superlux E323 has an extended frequency response and is available in black or white. This versatile microphone is an excellent choice for any situation where high quality sound and low-profile aesthetics are essential.

Key Features

• Back electret cardioid condenser
• Wide dynamic range
• Low noise balanced inline preamplifer and XLR connectivity
• Available in black or white

Technical Specifications

Element
Back Electret Condenser
Polar Pattern
Cardioid
Frequency Response
60-14,000 Hz
Sensitivity
-35dB/V (17.8mV/Pa) at 1000 Hz +/- 3dB
Equivalent Noise
< 26dB (A-weighted)
Impedance
200 Ohms
Max SPL
132dB at 1000 Hz (THD <= 1% 1kHz)
Dynamic Range
106dB (1000 ohm load)
Phantom Power Requirements
9 to 52VDC
Finish
Low Gloss White or Black
Connector
3 pin Male XLR
Weight
2.30 oz.
RoHS Product and Packaging Follow
EU 2002/95/EC and Comply to RoHS Requirements
