SoundTools CAT Rack Female XLR to etherCON Rackmount Unit, 3 x 4 Channel

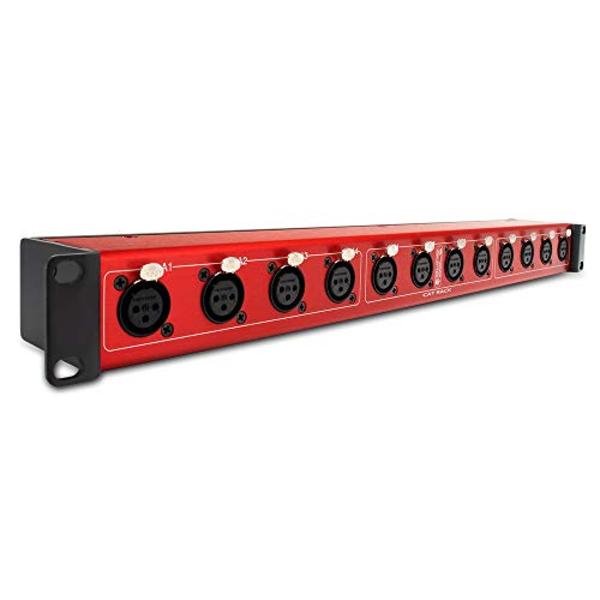

The SoundTools CAT Rack is a rack mount stage box capable of delivering up to 12 channels of audio and data from XLR or DMX sources over three CAT cable lines. Fully passive, these all-analog stage boxes are customizable to deliver the best in audio and data without interference or signal loss. The SoundTools CAT Rack is the ultimate in rack-mounted XLR-to-Cat stage boxes. Twelve XLR ins or outs (call us for custom builds) line one side of the unit, and 3 pairs of etherCon ins and outs (6 connections total) are on the other side. CAT Racks are all-analog and designed with machined anodized aluminum and stainless steel screws for ultimate durability. When used with shielded Cat5e cable or better, the CAT Rack allows for the use of phantom power.

Key Features

• Run 12 channels of audio or COM through 3 Cat5e cable lines
• Manufactured for reliability with touring in mind
• 12 male or female XLR connections, 6 etherCON connections
• Custom configurations available on request
• Fits in 1U rack slot

Technical Specifications

DIMENSIONS
Unit
Height x Width x Depth
2.5 in (63.5mm) x 18.88 in (479.5mm) x
1.75 in (44.45mm)
Weight
25.6 oz (.7 KG)
In Package
Height x Width x Depth
3.25 in (82.55mm) x 19.5 in (495.3mm) x
2 in (50.8mm)
Weight
32 oz (.90 KG)
SYSTEM REQUIREMENTS
*Requires shielded cable for full functionality
Analog audio (including phantom power!)
DMX signals
AES3 compatible
Intercom
12 channels of balanced audio 3 over Cat5e cables
Removable and reversible rack ears
Compatible with DMX, COM and other 3-pin XLR based COM systems
Available in male and female configurations
PACKAGE CONTENTS
Rack mountable CAT Rack
2 rack ears and screws (rack screws not included)
User documentation
