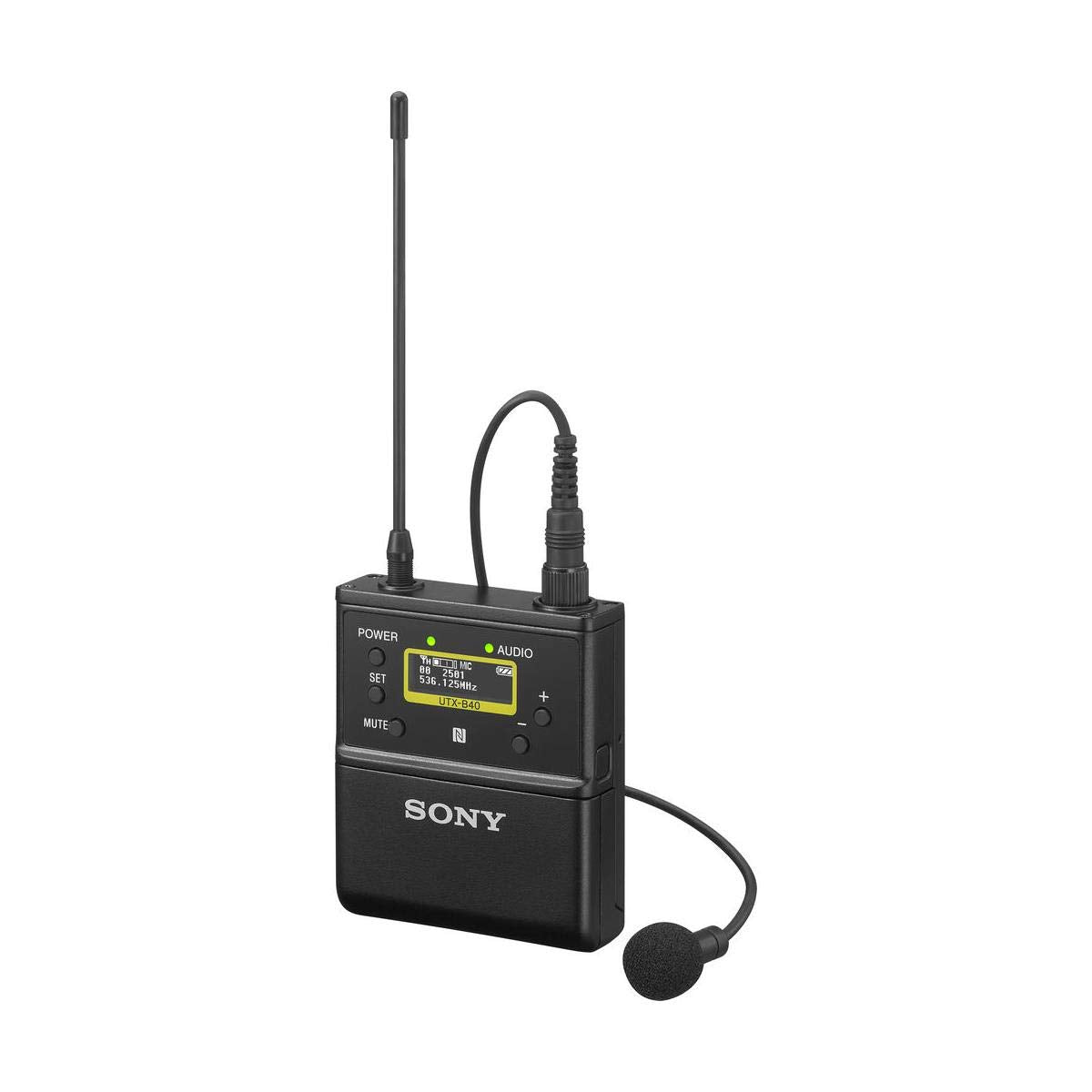

Sony UTX-B40/14 UWP-D Wireless Bodypack Transmitter with Lavalier, UC14, 470 to 542 MHz

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner naversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production) , as well as documentaries and weddings.

Key Features

• High quality sound with Sony digital audio processing
• NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
• Auto gain mode volume control
• +15 dB gain volume boost mode for off-mic audio
• Line input
• Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
• Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• High visibility OLED display, ideal for indoor/outdoor use
• USB connector for power supply
• Includes ECM-V1BMP lavalier microphone

Technical Specifications

Oscillator Type
Crystal-controlled PLL synthesizer
Antenna Type
1/4 wavelength wire antenna
Carrier Frequencies
14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ: 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz
RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
Capsule Type
Electret condenser
Directivity
Omni-directional
Input Connector
3.5mm diameter 3-pole locking mini jack
Reference Audio Input Level
-60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input)
Audio Attenuator Adjustment Range
0 dB to 27 dB (3dB steps)
Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio
60 dB (-60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)
Distortion
0.9% or less (-60 dBV, 1 kHz input)
Audio Delay
Approx. 0.35 ms
Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display
OLED
Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Battery life
*Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 C (77 F) .
Operating Temperature
0 C to 50 C (32 F to 122 F)
Storage/Transport Temperature
-20 C to +55 C (-4 F to +131 F)
Dimensions
63 – 73 – 19 mm (2 1/2 – 2 7/8 – 3/4 in.) (W / H / D) (excluding antenna)
Mass
Approx. 83 g (2.9 oz) (excluding batteries)
