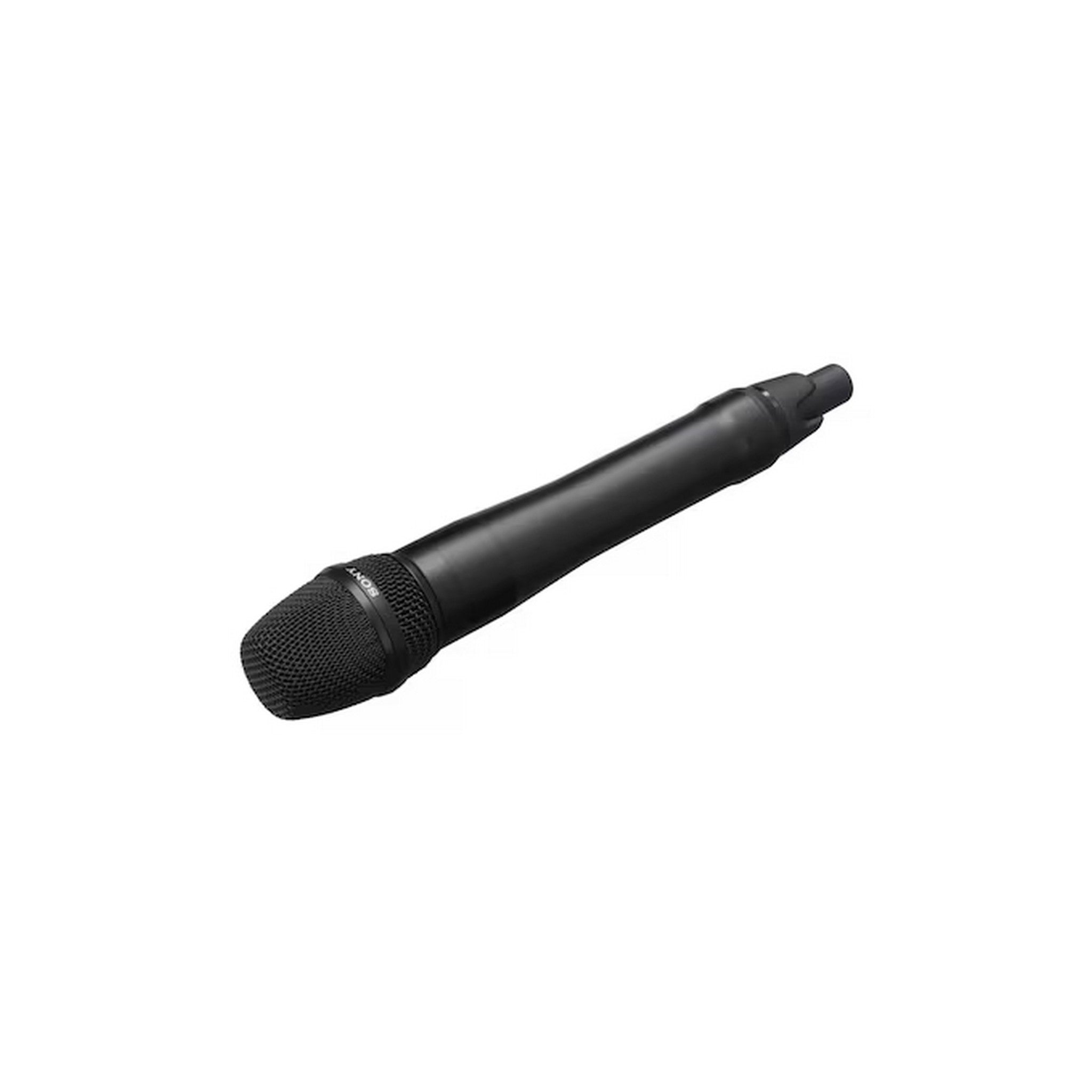

Sony DWM01/F3130 Digital Dynamic Wireless Microphone

The DWM01/F3130 Digital Wireless Microphone represents the pinnacle of audio technology, providing unparalleled sound clarity and reliability for a range of professional applications. Engineered to deliver crystal-clear audio with minimal interference, this microphone is ideal for live performances, presentations, and broadcasting. The DWM01/F3130 stands out with its robust construction, advanced digital processing, and user-friendly features, making it an excellent choice for demanding audio environments.

Featuring a sophisticated digital wireless system, the DWM01/F3130 ensures a stable connection and high-quality sound transmission over long distances. Its intuitive interface allows for easy setup and operation, even for users who are not technically inclined. With an emphasis on flexibility and performance, this microphone is equipped to handle various audio requirements, from vocal clarity to nuanced sound reproduction.

In addition to its technical prowess, the DWM01/F3130 offers superior durability and reliability. Its design incorporates premium materials and construction techniques, ensuring that it withstands the rigors of frequent use and challenging conditions. Whether you’re on stage, in a studio, or in a conference room, the DWM01/F3130 provides consistent and exceptional audio performance.

Key Features

• Advanced digital wireless technology for clear, reliable audio transmission.
• Easy-to-use interface for quick setup and operation.
• Durable construction designed to withstand demanding environments.
• Flexible functionality suitable for various professional applications.

Technical Specifications

Dimensions
3.78″ x 9.84″ x 2.76″
Weight
0.48 lbs

Transmitting Section
Oscillator Type
Crystal-controlled PLL synthesizer
RF Power Output
1 mW/10 mW/50 mW (e.r.p) selectable
Antenna Type
Helical antenna
Occupied RF Bandwidth
192 kHz or less
Audio Delay
1.5 ms
Allowable Deviation of Transmission Frequency
±6.5 ppm
Type of Emission
G1E or G1D
Modulation Method
π/4 Shift QPSK

Audio Section
Microphone Type
Dynamic type: unidirectional (Super cardioid)
Electret condenser type: unidirectional (Cardioid)
Maximum Input Level
151 dBSPL (with 21 dB attenuator)
Audio Attenuator Adjustment Range (Pad)
0 to 21 dB (3 dB steps)
Frequency Response
Dynamic type: 60 Hz to 18,000 Hz
Electret condenser type: 60 Hz to 20,000 Hz

General
Operating Voltage
3 V DC, with two LR6 (AA) alkaline batteries
Battery Life
Continuous operating time: 5 hours (at 25 °C (77 °F), 10-mW output using Sony LR6 (AA)-size alkaline batteries with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
Operating Temperature
32 °F to 122 °F
Storage Temperature
–4 °F to +140 °F
Wireless Remote Control
2.4-GHz IEEE802.15.4 compliant
Dimensions (Unit: mm (inches))
Mass
Dynamic type: approx. 11 oz
Electret condenser type: approx. 11 oz (including batteries)
Supplied Accessories
Identification ring (1 set)
Microphone holder (1)
USB adapter cable (1)
USB cable (1)
Carrying case (1)
Stand adaptor (1)
For the model available in the U.S.A.: PF1/2 to W5/8 type
For the model available in Europe: PF1/2 to W3/8 type
Operating Instructions (1)
CD-ROM (1)
