Shure QLXD14/85 Wireless Lavalier Microphone System with WL185

The Shure QLXD14/85 Lavalier Wireless Microphone System is part of the renowned QLX-D wireless family, designed to deliver exceptional wireless functionality for mid-size events and installations. Whether you’re organizing business conferences, managing hotel events, or conducting government sessions, the QLXD14/85 provides seamless and reliable performance. Perfect for schools, houses of worship, and live performance spaces, this system ensures that your voice is heard clearly and consistently.

Powered by Shure’s proprietary digital modulation technology, the QLXD14/85 offers a robust and interference-resistant signal. The system includes a WL185 lavalier microphone, QLXD1 bodypack transmitter, and QLXD4 digital wireless receiver, making it a complete solution for professional audio applications. Its user-friendly interface and versatile connectivity options simplify setup and operation, allowing you to focus on delivering your message with confidence.

The QLXD14/85 is highly adaptable with multiple frequency options including G50 (470-534 MHz), H50 (534-598 MHz), J50A (572-608 / 614+616 MHz), V50 (174-216 MHz), and X52 (902-928 MHz). This flexibility ensures consistent performance regardless of your geographical location and regulatory environment. With its durable construction and reliable power supply, this Shure wireless system stands out as an industry leader in audio solutions.

Key Features

• Part of the QLX-D wireless systems family
• Ideal for mid-size events and various installations

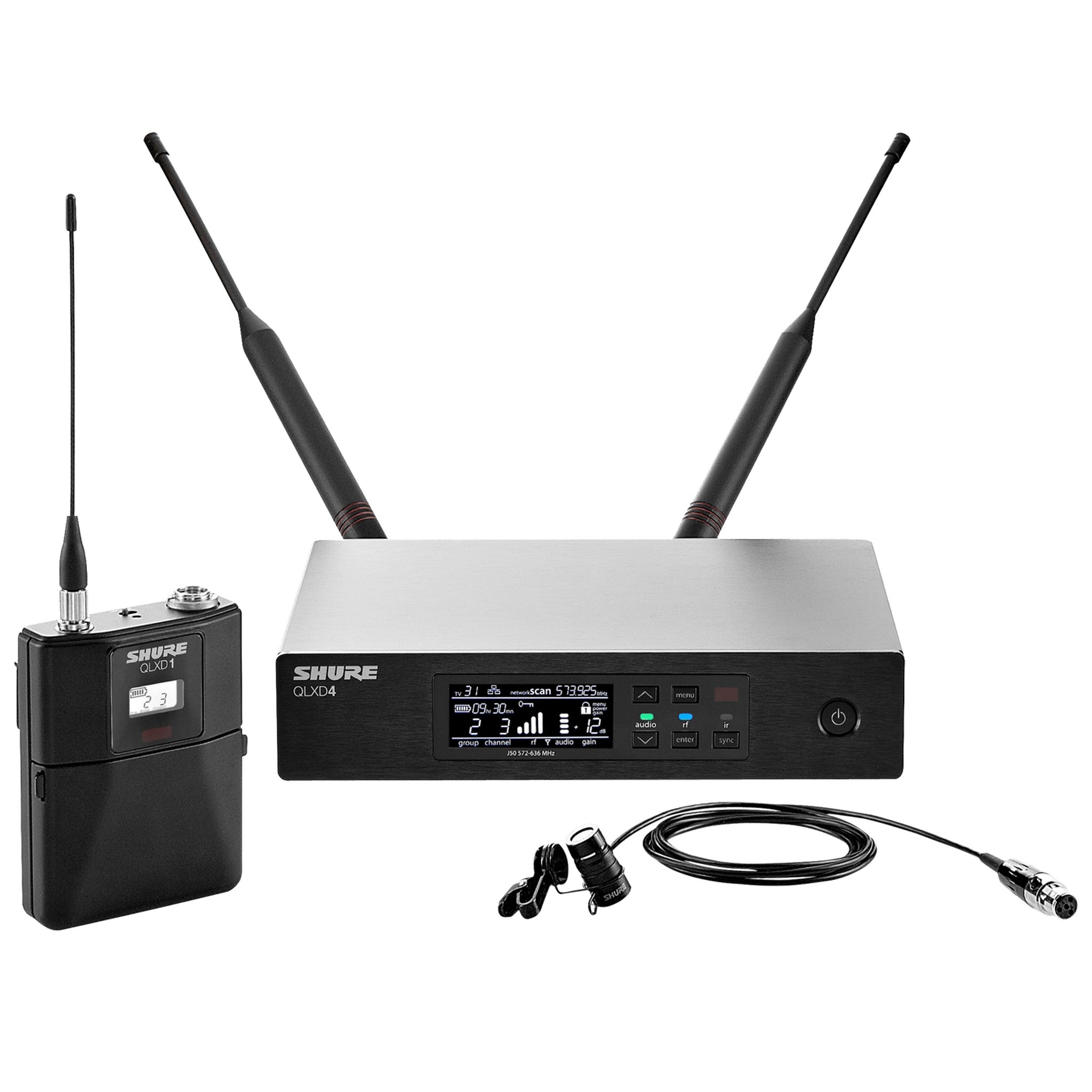

• Includes WL185 lavalier microphone, QLXD1 bodypack transmitter, and QLXD4 digital wireless receiver
• Utilizes Shure proprietary digital modulation technology
• Multiple frequency options for flexibility and compliance
• User-friendly interface for easy setup and operation
• Durable and reliable construction

Specifications

• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
• Battery Runtime at 10 mW: Shure SB900: up to 10 hours; Alkaline: up to 9 hours
• Dimensions (Transmitter): 86 mm x 65 mm x 23 mm (3.38 in. x 2.57 in. x 0.92 in.)
• Weight (Transmitter): 138 g (4.9 oz.) without batteries
• Housing Material: Cast aluminum
• Audio Input Connector: 4-pin male mini connector (TA4M)
• Configuration: Unbalanced
• Impedance: 1 M ohm
• Maximum Input Level: 8.5 dBV (7.5 Vpp) at 1 kHz, 1% THD
• Preamplifier Equivalent Input Noise (EIN): 120 dBV, A-weighted, typical
• RF Output Connector: SMA
• Antenna Type: 1/4 wave
• Occupied Bandwidth: less than 200 kHz
• Power: 1 mW or 10 mW
• Receiver Dimensions: 41 mm x 197 mm x 151 mm (1.63 in. x 7.75 in. x 5.94 in.)
• Receiver Weight: 777 g (1.71 lbs) without antennas
• Receiver Housing: Steel
• Power Requirements: 12 V DC at 0.4 A, supplied by external power supply
• RF Input Spurious Rejection: greater than 80 dB, typical
• Connector Type: BNC
• Audio Output Gain Adjustment Range: -18 to +42 dB in 1 dB steps
• Impedance (1/4 inch): 100 OHM; XLR: 100 OHM
• Full Scale Output (1/4 inch): +12 dBV; XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: Yes
• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Ethernet Cable Length: 100 m (328 ft)

Package Contents

• WL185 Lavalier Microphone
• QLXD1 Bodypack Transmitter
• QLXD4 Digital Wireless Receiver
• Power Supply
• 2 AA Batteries
• Two 1/2 Wave Antennas
• 2 BNC Cables
• Zipper Bag
• 2 BNC Bulkhead Adapters
• Rackmount Kit
• User Guide
