Shure MXWAPT8 Z10 8 Channel Access Point Transceiver Outlet Amazon

Shure MXWAPT8 Z10 | 8 Channel Access Point Transceiver

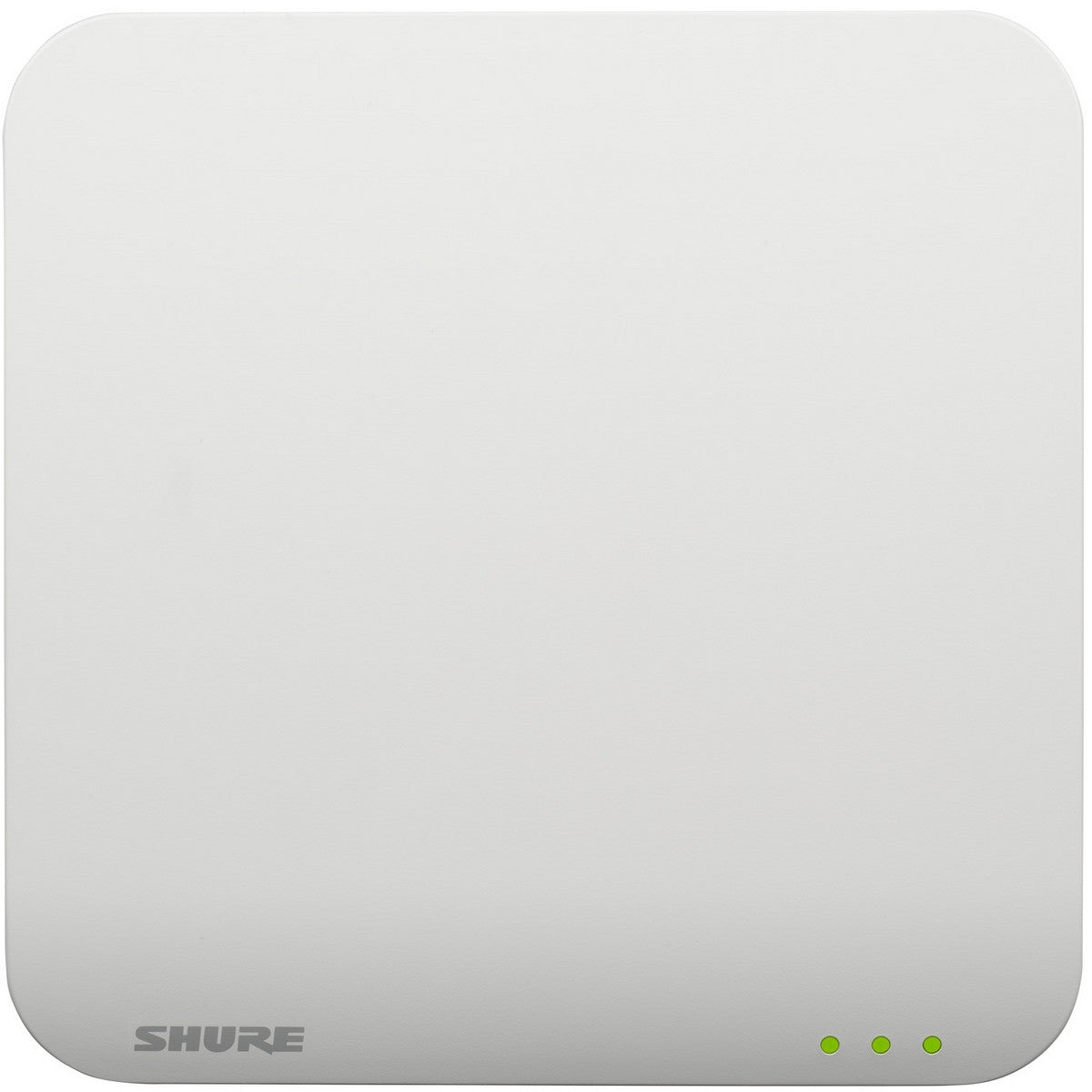

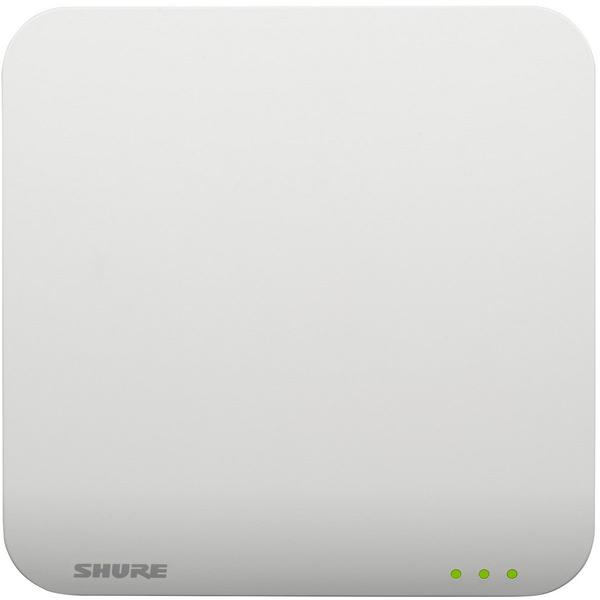

Introducing the Shure MXWAPT8 Z10, an advanced 8-channel access point transceiver specifically designed to optimize the performance of Microflex Wireless microphone systems. This state-of-the-art device stands out with its automated frequency coordination, ensuring your wireless microphones consistently operate on clean frequencies. Additionally, the MXWAPT8 manages two-way wireless transmission of encrypted audio and control signals, simplifying both installation and maintenance.

The MXWAPT8 is powered via Power over Ethernet (PoE) and utilizes Dante digital networked audio over a single Ethernet cable, making installation straightforward and hassle-free. The package includes a mounting plate and paintable cover, allowing for discreet placement in professional settings like boardrooms and conference rooms where aesthetic and low visibility are key. Whether it’s for a small meeting room or a large conference hall, the MXWAPT8 offers scalable configurations capable of supporting up to 40 compatible channels in the U.S. and 80 in select countries.

Engineered with the latest technology, the MXWAPT8 features AES 256-bit encryption for secure wireless transmission. Its diagnostic LEDs provide an easy visual reference to system activity, including power, wireless connection, and network audio status. Additionally, it allows for selectable output power, optimizing spectrum usage for the desired operating range.

Key Features

• Simple installation: Wall/ceiling mounting plate and single Ethernet cable connection (compatible with PoE).
• Plenum rated: Meets strict fire safety standards for installation above drop ceiling tiles.
• Expandable configurations: Supports up to 40 channels in the U.S. (80 in Europe and select countries).
• Two-way wireless: Facilitates audio transmission from wireless transmitters and enables real-time remote control.
• Automated frequency coordination: Scans the available spectrum, assigns clean frequencies and moves channels away from interference.
• Dante digital networked audio: Low-latency digital audio transmission over Cat5e cable to any Dante-equipped device.
• Secure wireless transmission: AES 256-bit encryption for secure communication.
• Selectable output power: Optimize spectrum usage with adjustable wireless output power.
• Diagnostic LEDs: Easy visual reference for system activity including power, wireless connection, and network audio status.

Specifications

• Network Interface: RJ45, Gigabit Ethernet, Dante digital audio
• Plenum Rating: UL 2043
• Power Requirement: PoE Class 0, 6.5W
• Antenna Type: Internal, Spatial Diversity, Circular Polarization
• Antenna Gain: Average: 0.5 dBi, Peak: 3.0 dBi
• Housing: Molded Plastic, Cast Zinc
• Dimensions: 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.), H x W x D
• Weight: APT8: 856 g (1.9 lbs), APT2, APT4: 845 g (1.9 lbs)
• Paintable Cover: 85 g (0.2 lbs)
• Mounting Bracket: 68 g (0.15 lbs)

Package Contents

• 1 Paintable Cover
• 1 Mounting Bracket
