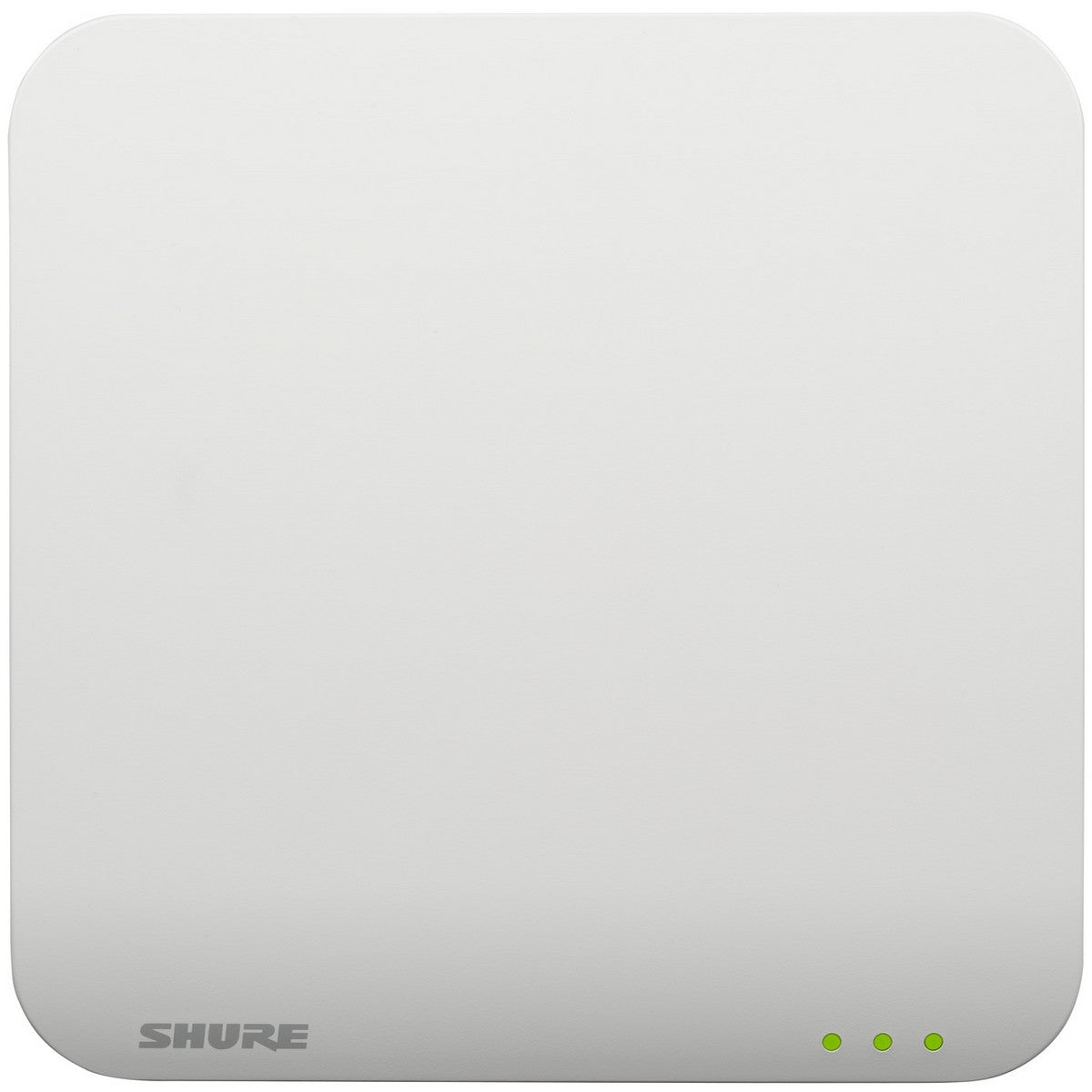

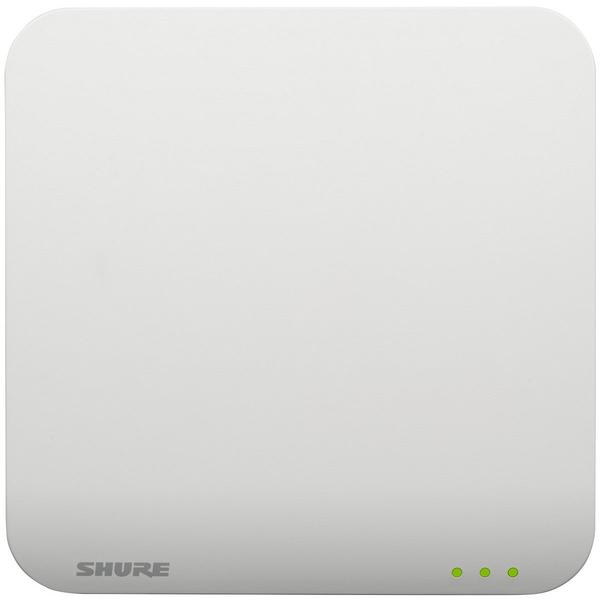

Shure MXWAPT4 Z10 | 4 Channel Access Point Transceiver

The Shure MXWAPT4 Z10 is a groundbreaking 4-channel access point transceiver designed to deliver unparalleled wireless audio quality. Ideal for boardrooms and conference rooms, this state-of-the-art device seamlessly integrates with Microflex Wireless microphone systems to ensure clean, high-fidelity audio. Leveraging advanced automated frequency coordination, the MXWAPT4 allocates optimal frequencies to wireless microphones and enables encrypted two-way wireless transmission of audio and control signals. Its power-over-ethernet (PoE) capability, combined with a single Ethernet cable for connectivity, simplifies installation and connectivity, making it a preferred choice for professional audio setups.

With plenum rating for installation above drop ceiling tiles and a discreet mounting plate with a paintable cover, the MXWAPT4 blends seamlessly into any environment. The device supports multiple unit configurations, expanding capabilities up to 40 channels (80 in Europe and select countries). Additionally, it delivers Dante digital networked audio, low-latency transmission, and is equipped with diagnostic LEDs for easy system activity monitoring. This robust unit is crafted from durable molded plastic and cast zinc to ensure long-lasting performance.

Whether you are setting up a high-stakes conference room or an executive boardroom, the Shure MXWAPT4 Z10 provides all the features you need to maintain superior audio quality, security, and operational efficiency.

Key Features

• Simple installation with wall/ceiling mounting plate and single Ethernet cable connectivity (PoE compatible).
• Plenum rated, meeting strict fire safety standards for installation above drop ceiling tiles.
• Supports expandable configurations up to 40 channels (80 in Europe and select countries).
• Two-way wireless transmission for real-time remote control of wireless microphone settings.
• Automated frequency coordination for clean frequency assignments and interference management.
• Transmits low-latency digital audio over Cat5e cable to any Dante-equipped device.
• Encrypted wireless communication with AES 256-bit encryption for secure transmission.
• Selectable output power for optimized spectrum usage and desired operating range.
• Diagnostic LEDs for visual system activity monitoring, indicating power, wireless connection, and network audio status.

Specifications

• Network Interface: RJ45, Gigabit Ethernet, Dante digital audio
• Plenum Rating: UL 2043
• Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
• Antenna Type: Internal, Spatial Diversity, Circular Polarization
• Antenna Gain: Average: 0.5 dBi, Peak: 3.0 dBi
• Housing: Molded Plastic, Cast Zinc
• Dimensions: 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.), H x W x D
• Weight: APT8: 856 g (1.9 lbs), APT2, APT4: 845 g (1.9 lbs)
• Paintable Cover Weight: 85 g (0.2 lbs)
• Mounting Bracket Weight: 68 g (0.15 lbs)

Package Contents

• 1 Paintable Cover
• 1 Mounting Bracket
