Shure MXWAPT2 Access Point Transceiver, Z10 1920 – 1930 MHz Clearance Cheap Real

Shure MXWAPT2 Access Point Transceiver, Z10 1920 – 1930 MHz

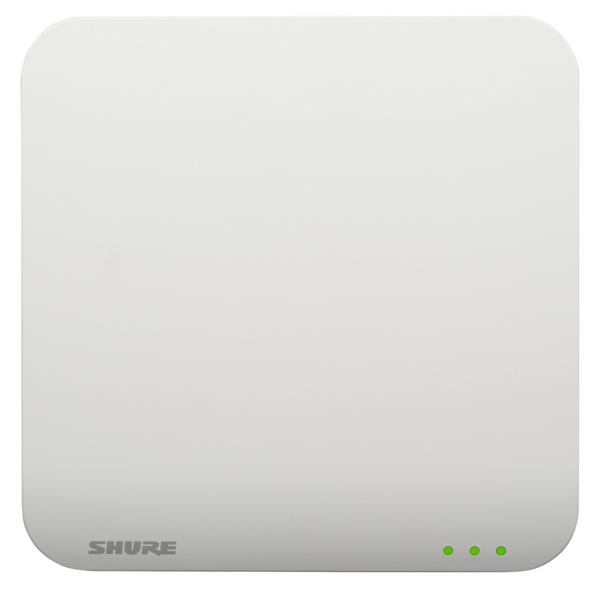

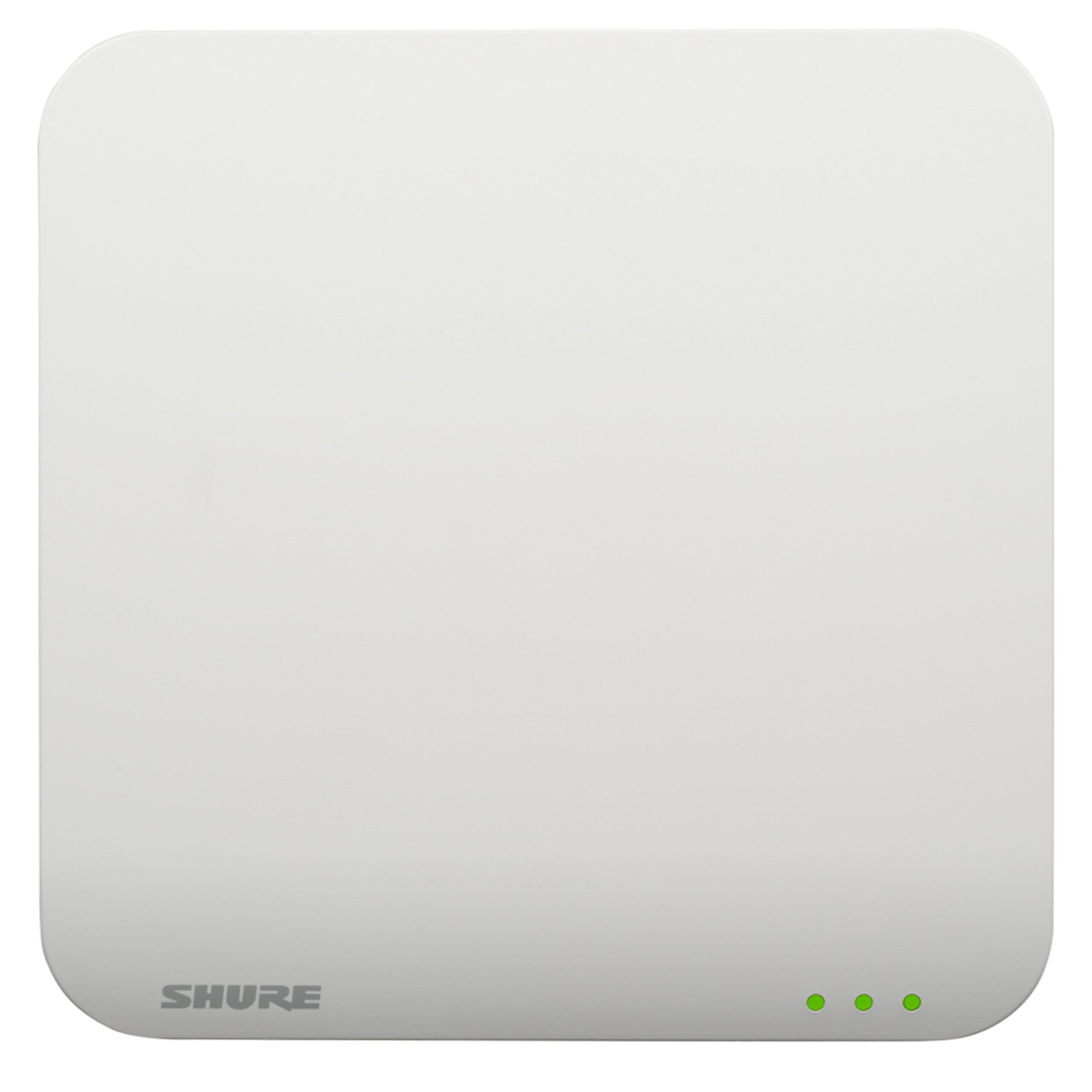

The Shure MXWAPT2 Access Point Transceiver is a top-tier, two-channel wireless access point designed for the Microflex Wireless microphone systems. Ideal for professional environments like boardrooms and conference rooms, this unit delivers seamless wireless audio transmission while maintaining a discreet, low-visibility profile. The MXWAPT2 simplifies installation with its single Ethernet cable connection, compatible with Power over Ethernet (PoE), and features a paintable cover to blend perfectly into any setting. Its sophisticated automated frequency coordination system ensures that you always have clean, reliable frequencies, all managed through an intuitive Dante digital networked audio interface.This powerful access point boasts AES 256-bit encryption, ensuring secure wireless transmission of both audio and control signals. An internal antenna system with spatial naversity and circular polarization enhances reliability, while diagnostic LEDs provide users with quick visual references for power, wireless connection, and network audio status. The MXWAPT2 stands out not only for its high-tech capabilities but also for its ease of use, making it a preferred choice for complex AV installations.

Key Features

• Simple installation: Includes a wall/ceiling mounting plate and connects using a single Ethernet cable, compatible with PoE.
• Plenum rated: Meets UL 2043 standards for installation above drop ceiling tiles.
• Expandable configurations: Supports configurations of up to 40 compatible channels (up to 80 in Europe and select countries).
• Two-way wireless: Enables real-time remote control of all wireless microphone settings and audio transmission from wireless transmitters.
• Automated frequency coordination: Automatically scans the spectrum, assigns clean frequencies, and mitigates interference.
• Dante digital networked audio: Transmits low-latency digital audio over Cat5e cable to any other Dante-equipped device.
• Secure wireless transmission: Utilizes AES 256-bit encryption.
• Selectable output power: Optimizes spectrum usage by adjusting wireless output power.
• Diagnostic LEDs: Provides visual indicators for power, wireless connection, and network audio status.

Specifications

• Network Interface: RJ45, Gigabit Ethernet, Dante digital audio
• Plenum Rating: UL 2043
• Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
• Antenna Type: Internal, Spatial Diversity, Circular Polarization
• Antenna Gain: Average 0.5 dBi, Peak 3.0 dBi
• Housing: Molded Plastic, Cast Zinc
• Dimensions: 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.) H x W x D, without mounting plate or cover
• Weight: APT8: 856 g (1.9 lbs); APT2, APT4: 845 g (1.9 lbs)
• Paintable Cover: 85 g (0.2 lbs)
• Mounting Bracket: 68 g (0.15 lbs)

Package Contents

• 1 Paintable Cover
• 1 Mounting Bracket
