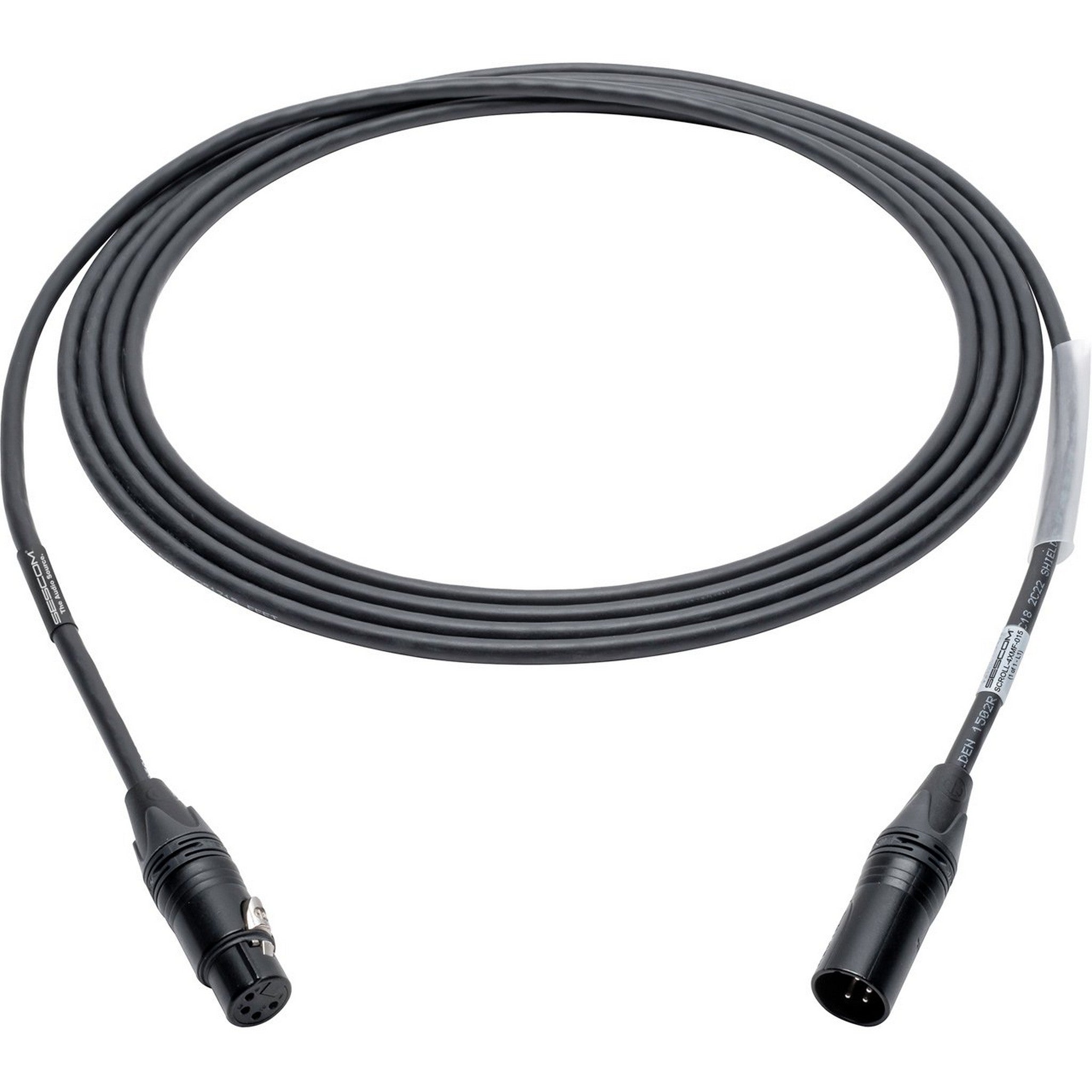

Sescom Scroller Cable Power and DMX Control: 4-Pin XLR Male to 4-Pin XLR Female

The Sescom Scroller Cable Power and DMX Control 4-Pin XLR Male to 4-Pin XLR Female offers a robust and reliable solution for lighting and media control systems. Designed with precision and premium materials, this cable ensures optimal performance for transmitting both power and DMX signals across various applications, including stage lighting and studio setups. With advanced features like its durable construction and premium-grade XLR connectors, this cable guarantees long-lasting use and dependable connectivity.

Engineered to meet the demands of professional environments, the Sescom Scroller Cable includes Belden 1502R media control cable technology, ensuring seamless signal transmission without interference. Its innovative design reduces wear and tear, even in rigorous conditions. The cable’s versatility makes it suitable for dynamic stage setups, theatrical productions, and other demanding environments where flawless control and power distribution are critical.

The Sescom Scroller Cable also meets strict compliance and durability standards, including UL and IEC certifications, ensuring it is both safe and efficient for professional use. With a compact yet sturdy design, this cable remains easy to handle and install, making it an essential component for any media or lighting control system.

Key Features

• 4-Pin XLR Male to 4-Pin XLR Female connection for seamless power and DMX control.
• Durable and flexible construction to withstand heavy use in professional settings.
• High-quality Belden 1502R media control cable for optimal signal integrity.
• Reliable Neutrik connectors with advanced latch lock for secure connections.
• Wide temperature range and compliance with international safety standards.

Technical Specifications

Belden 1502R Media Control: 1 Pair 22 AWG TC, 2 Conductor 18 AWG, Riser
Max Pull Tension: 65.3 lbs
Min Bend Radius: 2.5 in
Pair Material: Tinned Copper (TC)
Conductor Material: Tinned Copper
Pair Insulation Material: Polyethylene (Foam)
Conductor Insulation Material: Polyvinyl Chloride (PVC)
Inner Shield Material: Bi-Laminate (Alum+Poly) & Tinned Copper
Outer Jacket Material: Polyvinyl Chloride (PVC)
Overall Cable Diameter: 0.25 in
Plenum Number: 1502P
UL Voltage Rating: 300 V
UL Temperature: 75°F (Operating -4°F to +167°F)

4-Pin Neutrik XLR Connectors:
Capacitance Between Contacts: ≤ 7 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVdc
Insulation Resistance: > 10 GΩ (initial)
Rated Current Per Contact: 10 A
Rated Voltage: < 50 V
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Lifetime: > 1000 mating cycles
Locking Device: Latch lock
Boot Material: Polyurethane
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA66)
Locking Element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell Coating: Black KTL
Flammability: UL 94 V-0
Standard Compliance: IEC 61076-2-103
Protection Class: IP40
Temperature Range: -22°F to +176°F

What’s Included

• Sescom Scroller Cable: 4-Pin XLR Male to 4-Pin XLR Female
• Technical Documentation
