Sennheiser Spectera Base Station 64-Channel Rackmount Bidirectional Wireless Transceiver, UHF 470-663 MHz, 1G4 1435-1525 MHz Online Online Original

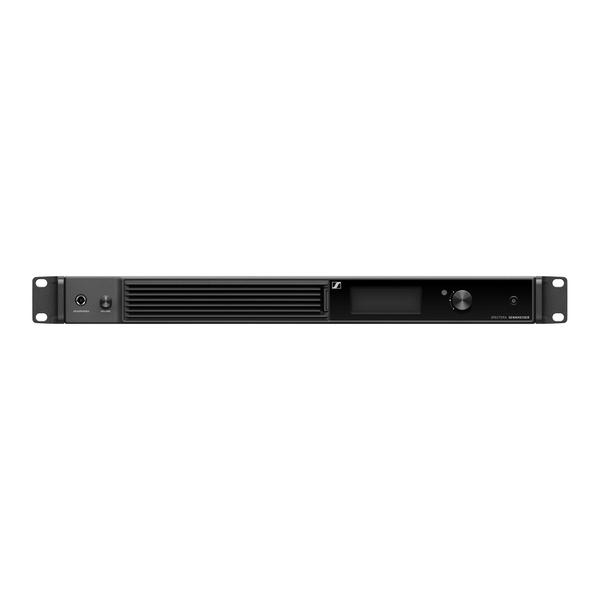

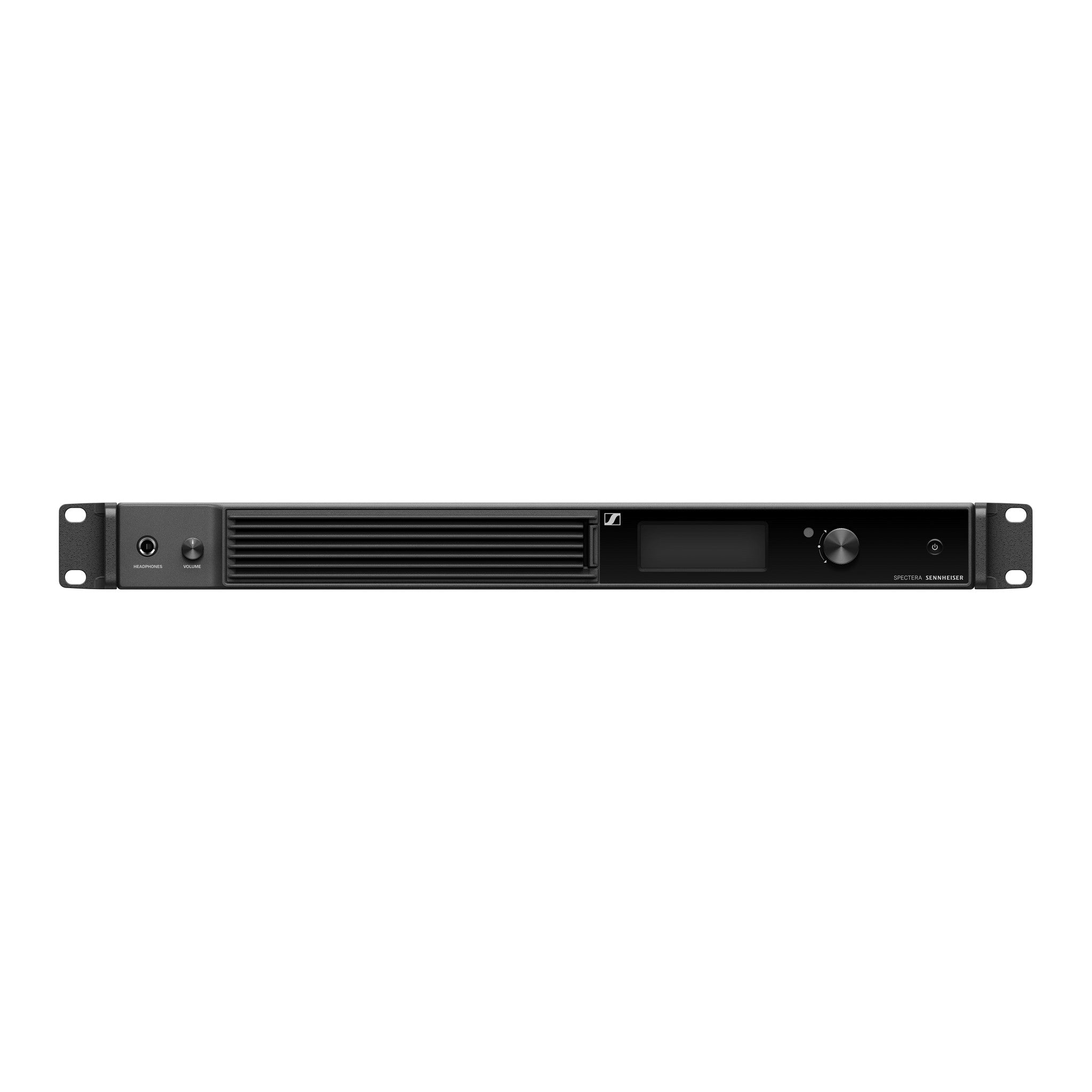

Sennheiser Spectera Base Station 64-Channel Rackmount Bidirectional Wireless Transceiver, UHF 470-663 MHz, 1G4 1435-1525 MHz

The Sennheiser Spectera Base Station is a revolutionary piece of wireless audio technology that changes the game for high-end productions, touring bands, and intricate live events. This unit is packed into a sleek 1U rackmount and delivers an outstanding 64 channels of audio, offering 32 inputs and 32 outputs while maintaining unparalleled audio quality. The Spectera Base Station handles both microphone/line reception and in-ear monitor transmission, offering unmatched versatility for professional audio setups.This innovative system supports dual sample rates of 48 kHz and 96 kHz, ensuring pristine audio playback. It features innavidual sample rate converters for each audio interface, allowing for seamless integration with various existing audio equipment. The Spectera Base Station also comes equipped with a wordclock I/O to enhance synchronization capabilities, making it a top choice for professional broadcast and recording environments. Its ability to function across both UHF and 1.4 GHz frequency bands adds another layer of flexibility, ensuring reliable performance in naverse conditions.

Key Features

64-channel capacity (32 inputs / 32 outputs) in a single rack unit

Support for both UHF and 1.4 GHz frequency bands

Dual sample rate support: 48 kHz and 96 kHz

Innavidual sample rate converters for all audio interfaces

Wordclock I/O for precise synchronization

Compatible with Sennheiser’s new DAD transceiver antennas

Dante audio networking capability

Specifications

RF Frequency Band: 470 to 694 MHz

Tuning Range: 224 MHz

RF Sensitivity: -90 dBm

Transmission Mode: Digital

Latency: 1.9 ms

Audio Frequency Response: 20 Hz to 20 kHz

Signal-to-Noise Ratio: >115 dB(A)

Total Harmonic Distortion (THD): <0.03%

Audio Sampling Rate: 48 kHz

Audio Bit Depth: 24-Bit

Analog Audio Inputs: 32 x XLR

Analog Audio Outputs: 32 x XLR

Digital Audio I/O: AES3, Dante/AES67

Network I/O: 2 x RJ45

Word Clock I/O: 2 x BNC

Antenna Inputs: 2 x BNC

Power Requirements: 100 to 240 VAC, 50/60 Hz

Power Consumption: 85 W

Operating Temperature: -10 to 55°C / 14 to 131°F

Dimensions: 1.7 x 19.0 x 17.1″ / 43 x 483 x 435 mm

Weight: 11.9 lb / 5.4 kg

Package Contents

Sennheiser Spectera Base Station

Power Cable

User Manual
