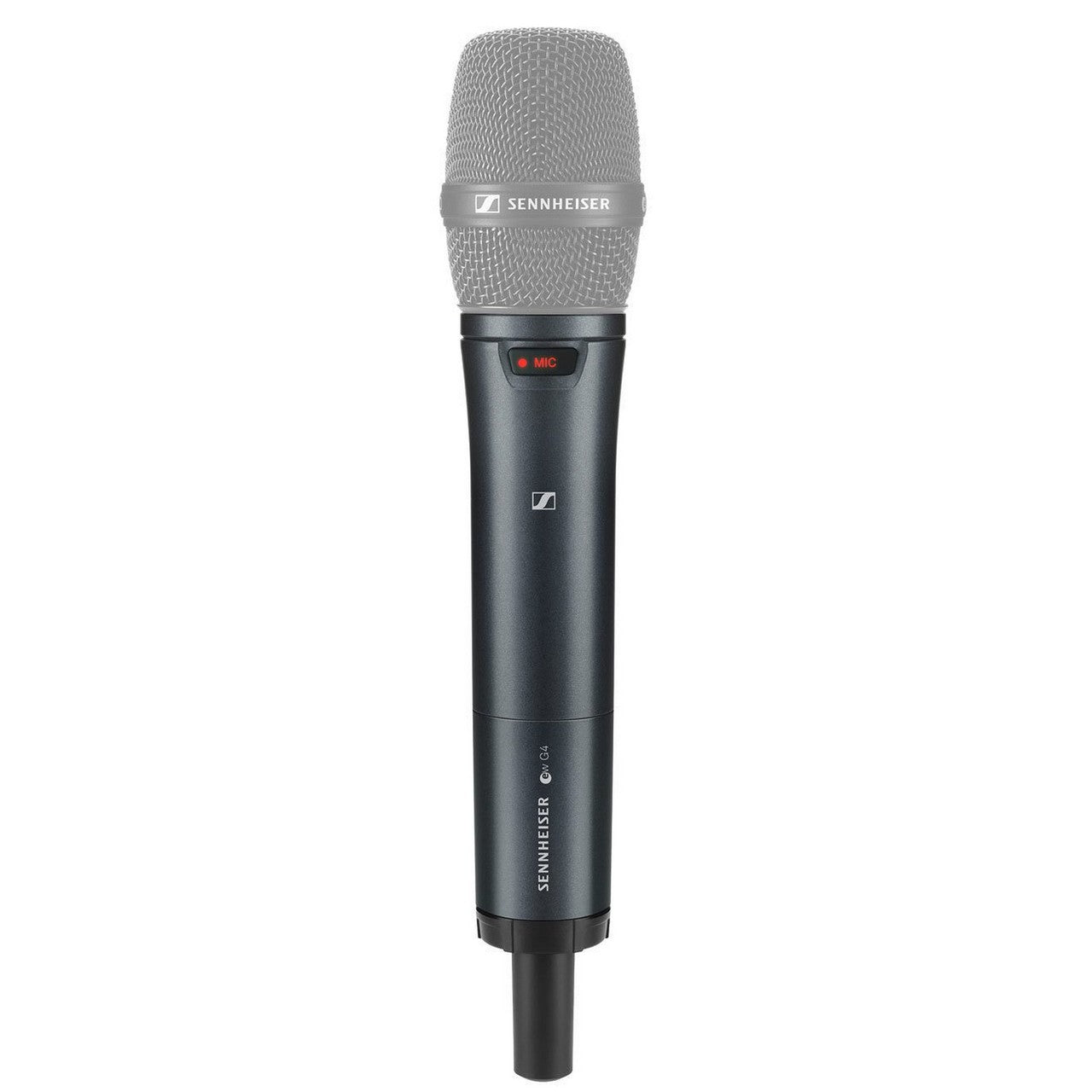

Sennheiser SKM 100 G4-S-A1 | Handheld Transmitter with Mute Switch

The Sennheiser SKM 100 G4-S-A1 Handheld Transmitter with Mute Switch is a powerful and versatile choice for any audio professional or enthusiast looking for superior sound quality and reliability. With a lightweight aluminum housing and a user-friendly integrated mute switch, this transmitter is designed to withstand rigorous use while delivering crystal-clear audio. It is compatible with the evolution wireless G4 100 Series systems, making it a perfect addition to your wireless microphone setup.

Offering an array of features such as the ability to choose from Sennheiser’s renowned e 835, e 845, e 865, e 935, and e 945 capsules, this transmitter provides flexible wireless synchronization between the transmitter and receiver via infrared. Additionally, the fast frequency allocation allows for up to 12 receivers through new linking functionality. With up to 42 MHz bandwidth and 1680 selectable frequencies, this device ensures stable performance even in crowded UHF ranges.

Whether you are on stage, in a conference room, or hosting an event, the Sennheiser SKM 100 G4-S-A1 offers a transmission range of up to 100 meters (300 feet) and high RF output power up to 30 mW, depending on country regulations. This ensures that your sound is always heard loud and clear without interference.

Key Features

• Your choice of Sennheiser’s renowned e 835, e 845, e 865, e 935, e 945 capsules
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission range: up to 100 meters (300 feet)
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Dimensions: Approx. 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9%
• Weight (incl. batteries): approx. 450 g
• Signal-to-noise ratio: ≥ 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 A
• Input impedance: 40 kΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation, 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10°C to +55°C
• Frequency stability: ≤ ±15 ppm

Package Contents

• SKM 100 G4-S handheld transmitter
• MZQ 1 microphone clamp
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet
