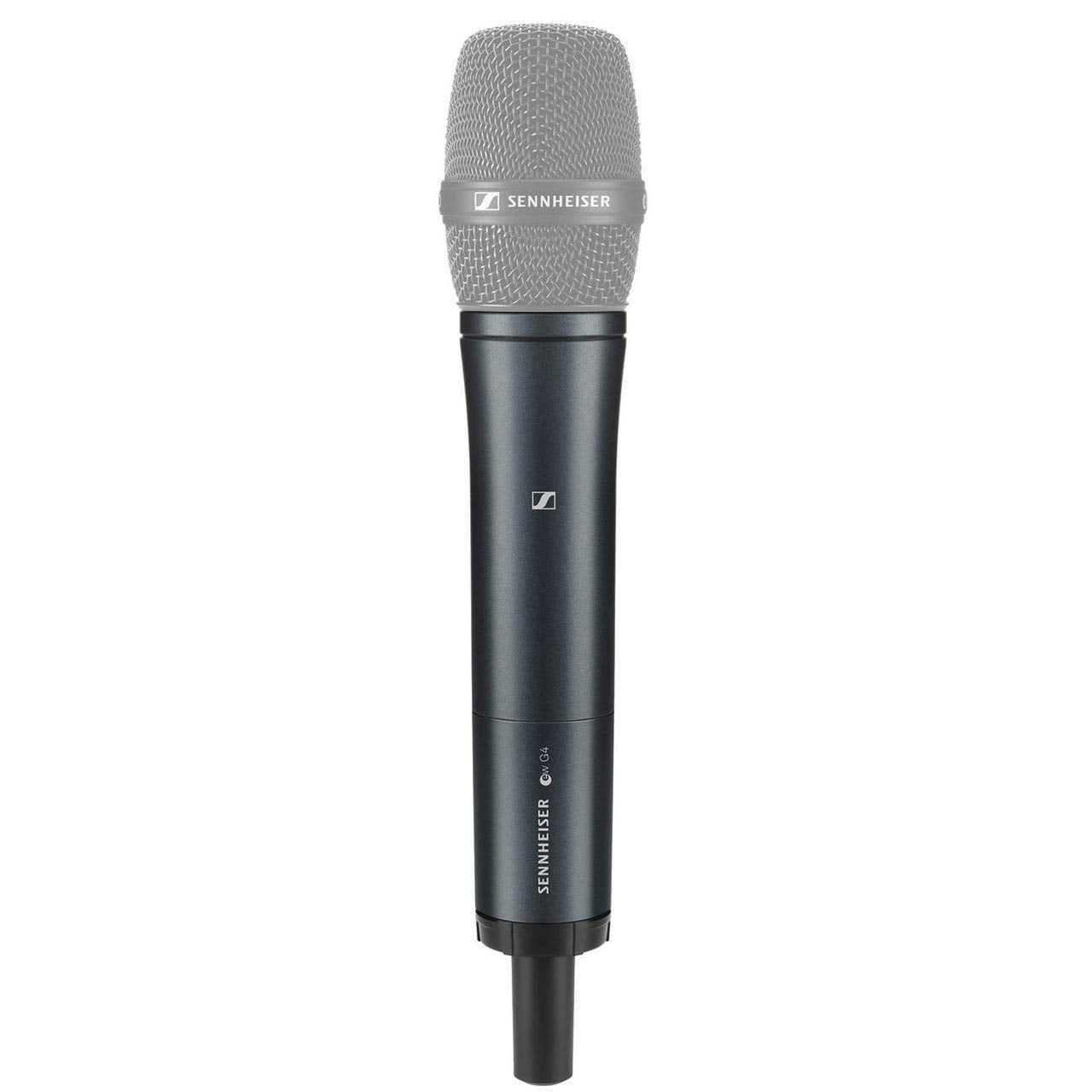

Sennheiser SKM 100 G4-A1 | Handheld Transmitter

The Sennheiser SKM 100 G4-A1 Handheld Transmitter is a premier solution for those seeking unmatched audio quality and reliability in their wireless communication needs. Crafted with Sennheiser’s world-renowned engineering expertise, this powerful transmitter features a lightweight aluminum housing and an integrated mute switch designed specifically for the evolution wireless G4 100 Series systems. Catering to a wide range of frequencies including A1 (470 – 516 MHz), A (516 – 558 MHz), and G (566 – 608 MHz), this transmitter ensures versatility and adaptability for various professional applications.

With its ease of use and flexible wireless synchronization via infrared, the Sennheiser SKM 100 G4-A1 offers seamless connectivity between your transmitter and receiver. The transmitter supports up to 20 compatible channels within a robust UHF range of up to 42 MHz bandwidth, providing up to 1680 selectable frequencies. Ideal for live performances, presentations, and broadcasting, this handheld transmitter boasts high RF output power of up to 30 mW, ensuring clear and uninterrupted signal transmission over distances of up to 100 meters (300 feet).

Key Features

• Multiple capsules available: e 835, e 845, e 865, e 935, and e 945.
• Easy and flexible wireless synchronization via infrared.
• Fast frequency allocation for up to 12 receivers with new linking functionality.
• Supports up to 20 compatible channels.
• Up to 42 MHz bandwidth with 1680 selectable frequencies in a stable UHF range.
• Transmission range of up to 100 meters / 300 feet.
• High RF output power up to 30 mW, subject to country regulations.

Specifications

• Dimensions: Approx. 50 x 265 mm
• Weight (incl. batteries): Approx. 450 g
• THD, Total Harmonic Distortion: ≤ 0.9%
• Signal-to-noise ratio: ≥ 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: Up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 180 mA; with transmitter switched off: ≤ 25 µA
• Input impedance: 40 kΩ
• Max. Input voltage: 3 Veff
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10°C to +55°C
• Frequency stability: ≤ +/-15 ppm

Package Contents

• SKM 100 G4
• MZQ 1 microphone clamp
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet
