Sennheiser SK 500 G4-GW1 Bodypack Transmitter Free Shipping Original

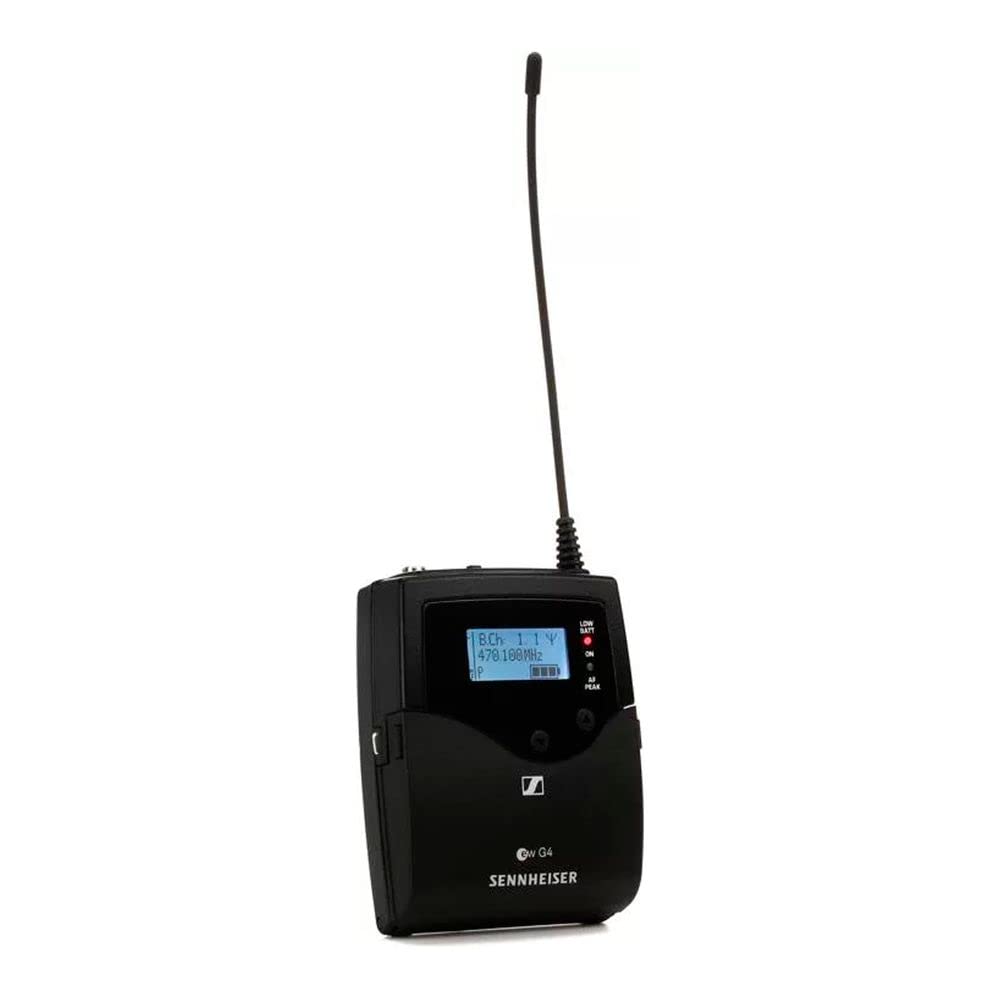

Sennheiser SK 500 G4-GW1 | Bodypack Transmitter

The Sennheiser SK 500 G4-GW1 is a powerful bodypack transmitter specifically engineered to perform seamlessly on the most demanding live stages. Delivering enhanced bandwidth and superior transmission power, it forms an integral part of the evolution wireless G4 500 Series systems. Whether you’re a singer, speaker, or performer, the SK 500 G4-GW1 is designed to provide reliable, clear, and robust audio performance, ensuring you’re always heard clearly.

This versatile transmitter supports frequencies in the range of 558 – 608 MHz (GW1), offering an incredible 88 MHz bandwidth with 3520 selectable frequencies within a stable UHF range. The enhanced wireless synchronization between the transmitter and receiver through infrared ensures minimal setup time and increased dependability. With high RF output power adjustable in three steps (10/30/50 mW), you can tailor the performance based on your specific needs and the regulatory requirements of your location.

For advanced frequency coordination in complex multi-channel setups, the SK 500 G4-GW1 also features an Ethernet connection for integration with the Wireless Systems Manager (WSM) control software. The compact, user-friendly design alongside a robust build makes it an essential tool for professionals who require reliable and high-quality wireless audio transmission.

Key Features

• Powerful bodypack transmitter with increased bandwidth and transmission power
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): approx. 160 g
• Signal-to-noise ratio: >= 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: <= 25 A
• Input impedance: 40 k Ohm, unbalanced / 1 M Ohm
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 C to +55 C
• Frequency stability: <= +/-15 ppm

Package Contents

• SK 500 G4 bodypack transmitter
• 2 AA batteries
• Pouch
• Quick guide
• Safety guide
• Manufacturer declaration sheet
