Sennheiser SK 100 G4-A1 Bodypack Transmitter Big Sale

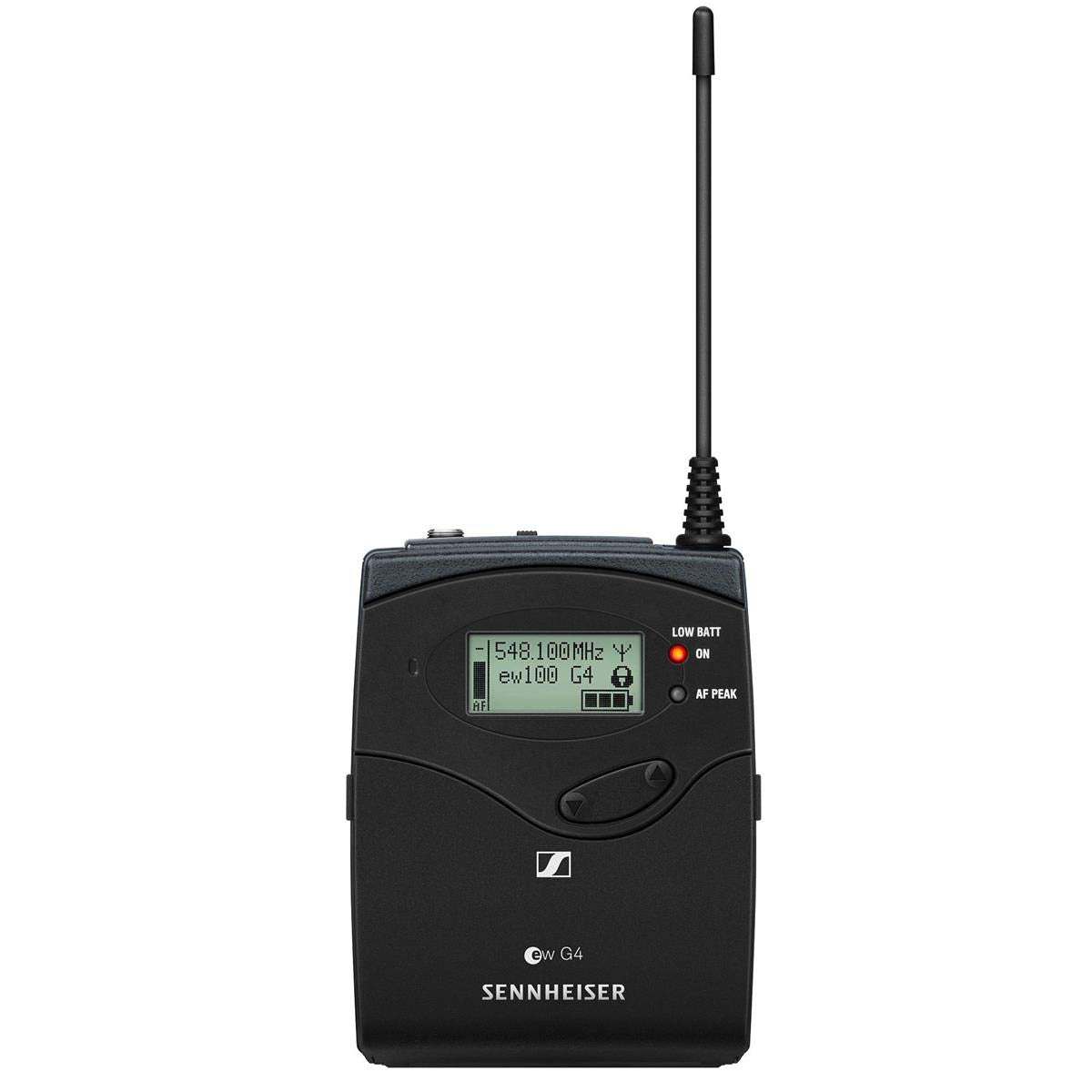

Sennheiser SK 100 G4-A1 Bodypack Transmitter

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

Frequencies:
A1, 470 – 516 MHz
A, 516 – 558 MHz
G, 566 – 608 MHz

Key Features

• Robust bodypack transmitter for daily use on stage.
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Technical Specifications

Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<= 0.9 %
Weight (incl. batteries)
approx. 160 g
Signal-to-noise ratio
>= 110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
+/-48 kHz
Nominal deviation
+/-24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: <= 25 A
Input impedance
40 k OHM, unbalanced / 1 M OHM
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
Mic: 80 – 18,000, Hz Line: 25 – 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
<= +/-15 ppm
What’s in the box?
SK 100 G4 bodypack transmitter
2 AA batteries
quick guide
safety guide
manufacturer declaration sheet
