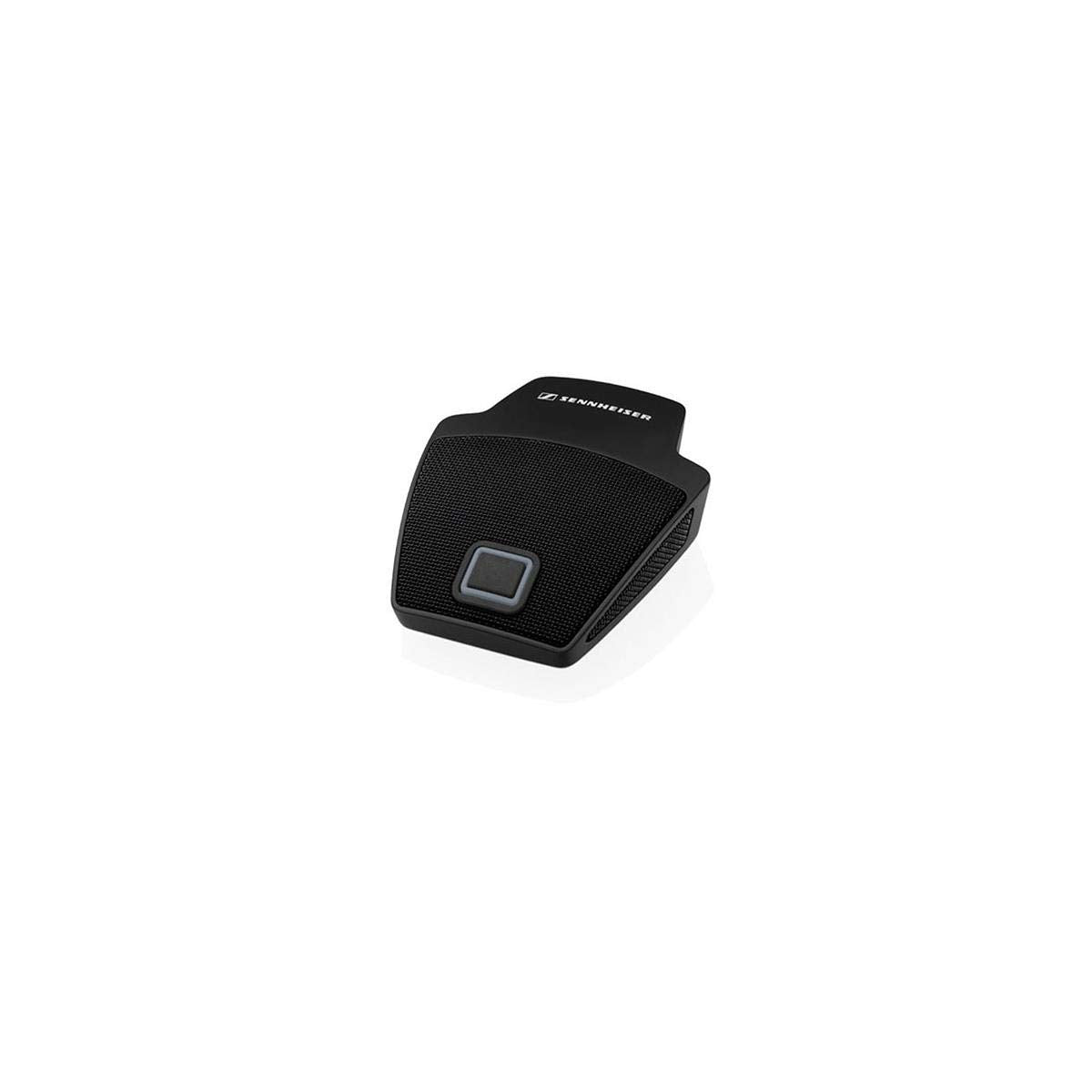

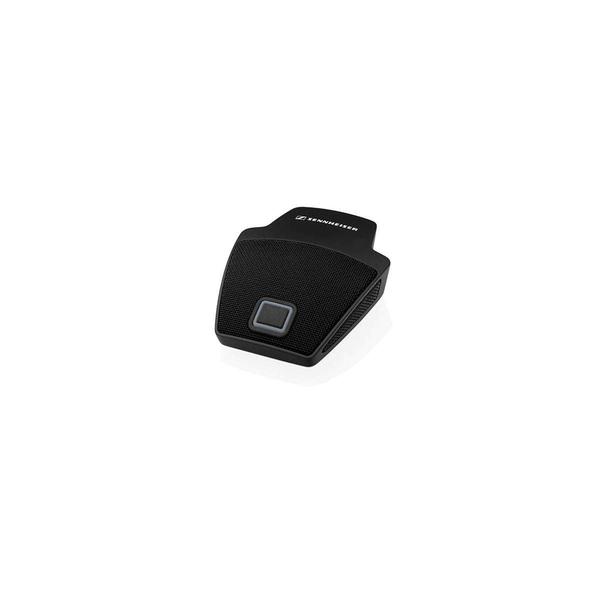

Sennheiser MEB 114-S B | On-Table Boundary Layer Microphone with Programmable Button Black

The Sennheiser MEB 114-S B On-Table Boundary Layer Microphone is a game-changer for conferencing systems, delivering top-notch speech intelligibility in any environment. Designed with a sturdy build and black finish, this microphone seamlessly blends into any professional setting while enhancing your audio experience. The versatile nature of the microphone is highlighted by its programmable button, allowing users to toggle between different modes such as PTT, PTM, toggle ON/off, and permanent on. Accompanied by a bi-color LED ring, users can intuitively understand the microphone status at a glance. Facilitating ease of integration with camera or media control systems, the microphone features a TTL logic out on the bottom side, making it an excellent choice for modern conferencing needs.

Engineered for durability, the MEB 114-S B boasts a rugged housing that protects its high-quality pre-polarized condenser microphone capsule. The sturdy design ensures reliability, while its superior audio capture capabilities offer an impressive frequency response from 40 Hz to 20 kHz. Whether it’s a small meeting room or a large conference hall, this microphone can handle sound pressure levels up to 140 dB, making it ideal for a broad range of applications. With its cardioid pick-up pattern and nominal impedance of 200 OHM, you can expect crystal clear audio with reduced background noise, ensuring every word spoken is heard with exceptional clarity.

Key Features

• Programmable microphone button with multiple modes (PTT, PTM, toggle ON/off, permanent on)
• Bi-color LED ring for clear status indication
• TTL logic out for triggering camera or media control systems
• Rugged housing for enhanced durability
• High-quality pre-polarized condenser microphone capsule
• Superior speech intelligibility
• Frequency response range of 40 Hz – 20 kHz
• Supports sound pressure levels up to 140 dB
• Cardioid pick-up pattern to minimize background noise

Specifications

• Dimensions: 3.34 x 3.93 x 0.98 in (W x D x H)
• Weight: 10.26 oz
• Connector: Clip contact, trigger signal at the logic connector: Logic in (LED control), GND, Logic out (switch signal)
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 140 dB
• Transducer principle: Pre-polarized condenser microphone
• Pick-up pattern: Cardioid
• Nominal impedance: 200 OHM
• Phantom powering: P 24 – P 48
• Operating temperature: 14 deg to 122 deg F
• Equivalent noise level: 29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 39 dB (CCIR)
• Current consumption: 5.3 mA
• Output voltage: Logic out: High level output voltage > 2.4 V, Low level output voltage < 0.4 V
• Output voltage: Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
• Acoustics: Boundary layer microphone
• Dynamic range: 111 dB (A)
• Sensitivity: 10 mV/Pa

Package Contents

• Sennheiser MEB 114-S B Microphone
• User Manual
• Mounting Accessories
