Sennheiser MEB 104 B Boundary Cardioid Installation Wired Microphone, Black Cost Cheap Online

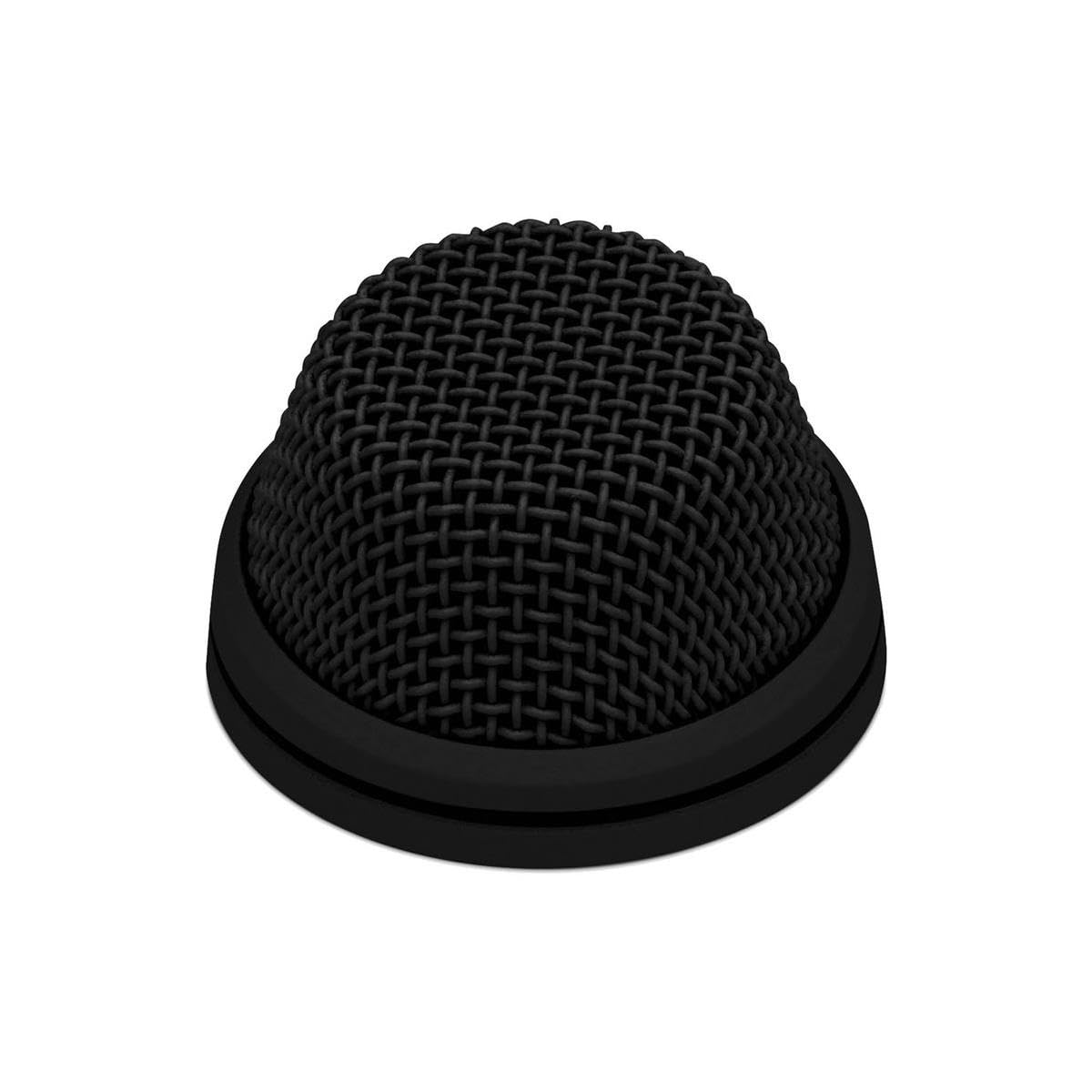

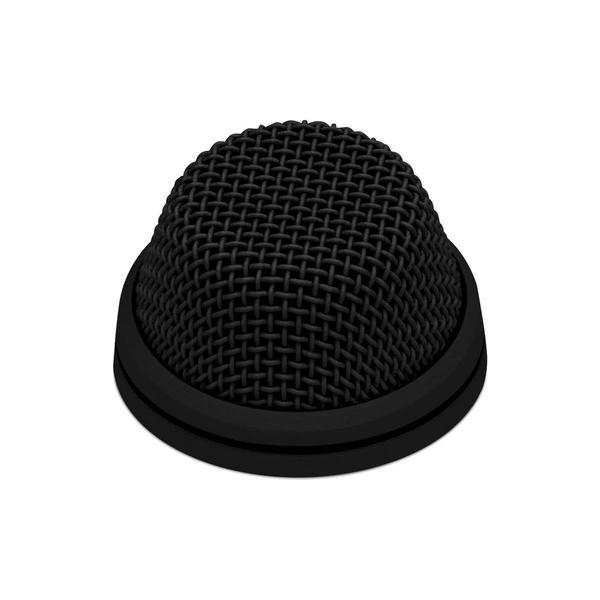

Sennheiser MEB 104 B Boundary Cardioid Installation Wired Microphone, Black

The Sennheiser MEB 104 B Boundary Cardioid Installation Wired Microphone is a high-quality audio solution designed for seamless integration into any interior setting. This compact and unobtrusive microphone is perfect for installation in various surfaces such as tables or ceiling tiles. It comes with a proven Sennheiser microphone capsule, ensuring superior speech intelligibility. Encased in a rugged housing, the MEB 104 B is built to withstand the rigors of daily use. Additionally, the -L variant features a bi-color LED ring for clear status indication, making it ideal for professional environments.

Whether for educational settings, conference rooms, or corporate environments, the MEB 104 B offers unparalleled audio quality. It functions as a boundary layer microphone with a pre-polarized condenser, providing a wide frequency response from 40 Hz to 20 kHz. With its cardioid pick-up pattern, it effectively minimizes background noise, capturing clear and focused sound. This ensures that every word spoken through the microphone is heard with clarity, making it an excellent choice for settings where clear communication is critical.

In terms of technical specifications, the MEB 104 B boasts a maximum sound pressure level of 125 dB and operates within a dynamic range of 97 dB (A). It features a nominal impedance of 200 ohms and has a current consumption of 3 mA. Designed for versatility and ease of installation, this microphone supports phantom powering (P 24 – P 48) and operates efficiently within a temperature range of 32°F to 104°F. Weighing just 2.12 oz, it adds minimal weight to the installation surface, ensuring a sleek and professional appearance.

Key Features

• Compact and unobtrusive design
• Superior speech intelligibility
• Bi-color LED ring for status indication (-L variant)
• Wide frequency response (40 Hz – 20 kHz)
• Cardioid pick-up pattern
• Rugged housing
• Easily installable in surfaces like tables or ceiling tiles
• Pre-polarized condenser microphone
• Wide dynamic range of 97 dB (A)
• Suitable for professional environments

Specifications

• Connector: XLR-3
• Pin assignment: 1 = gnd, 2 = +, 3 =
• Current consumption: 3 mA
• Height: 3.54 in (0.75 in above surface)
• Diameter: 1.12 in
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 2.12 oz
• Pick-up pattern: cardioid
• Nominal impedance: 200 ohms
• Phantom powering: P 24 – P 48
• Operating temperature: 32°F to 104°F
• Equivalent noise level: 28 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 38 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 97 dB (A)
• Sensitivity: 14 mV/Pa
• Thread: M 20

Package Contents

• Sennheiser MEB 104 B Boundary Cardioid Installation Wired Microphone
• Installation guide
• Mounting hardware
