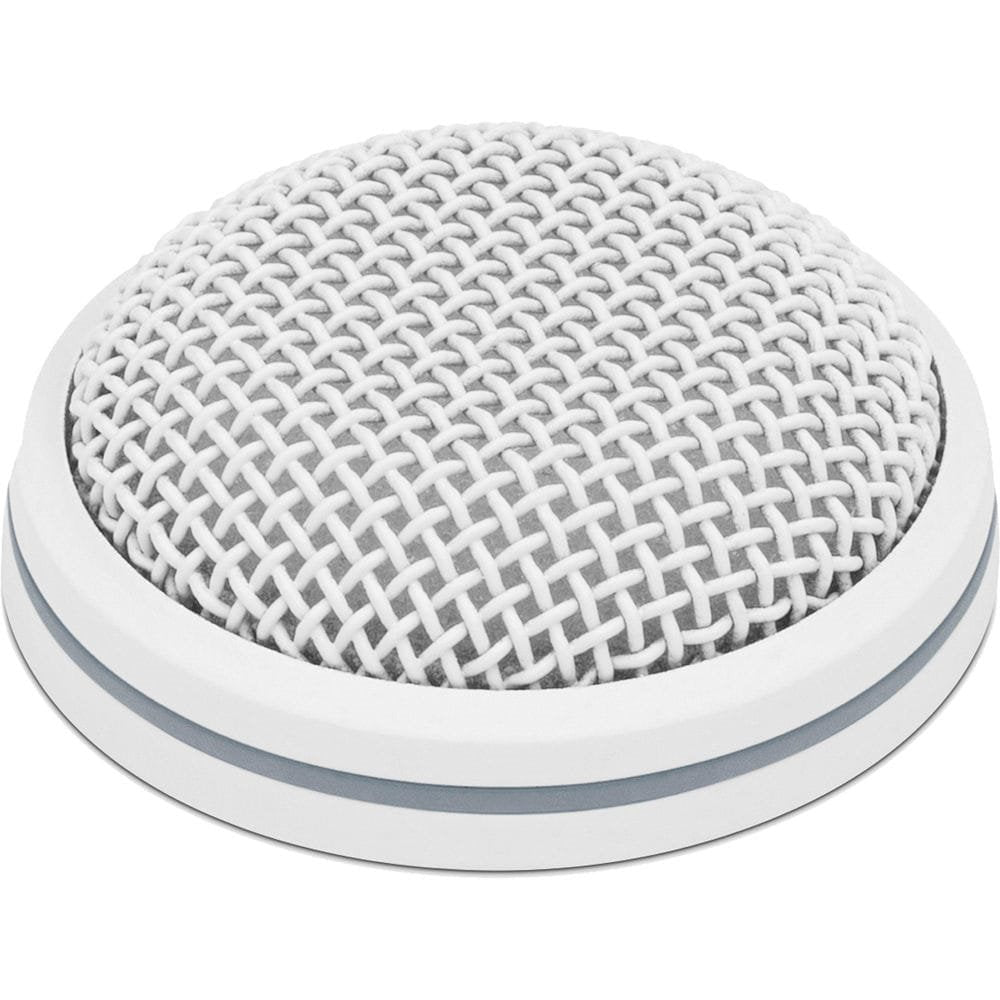

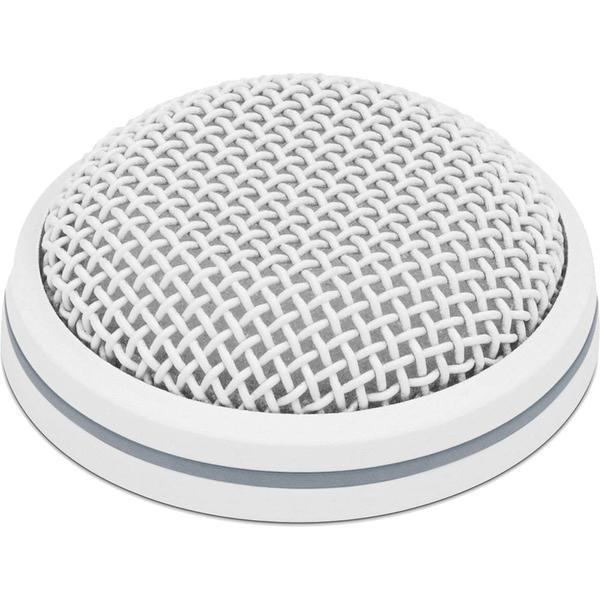

Sennheiser MEB 102-L W Boundary Cardioid Installation Wired Microphone, White

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 102 (omnidirectional) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-color LED ring for status indication.

Technical Specifications

Connector
MEB 102-L: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = (Mic ), 4 = LED green (trigger signal), 5 = LED red (default)
Current consumption
MEB 102-L: 6 mA
Dimensions
Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
Frequency response
40 Hz 20 kHz
Max. sound pressure level
125 dB
Transducer principle
pre-polarized condenser microphone
Weight
2.05 oz
Pick-up pattern
omni-directional
Nominal impedance
200
Phantom powering
P 24 – P 48
Operating temperature
32 °to 104 ° F
Equivalent noise level
21 dB (A)
Equivalent noise level weighted as per CCIR 468-3
31 dB (CCIR)
Acoustics
Boundary Layer Microphone
Dynamic range
104 dB (A)
Sensitivity
16 mV/Pa
Thread
M 20
