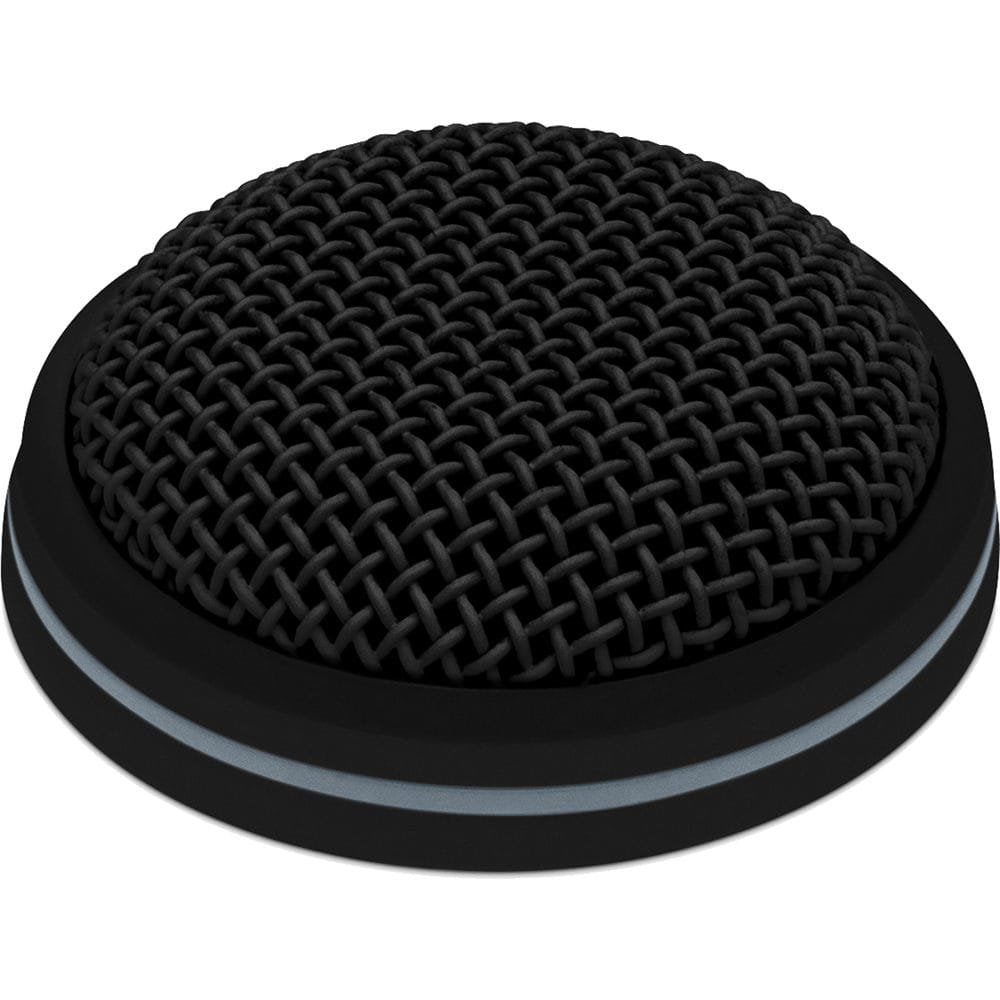

Sennheiser MEB 102-L B Boundary Cardioid Installation Wired Microphone, Black

The Sennheiser MEB 102-L B Boundary Cardioid Installation Wired Microphone is a versatile and high-performance audio solution designed for seamless integration into any environment. Its compact and unobtrusive design makes it perfect for installation in surfaces such as tables or ceiling tiles, blending effortlessly with any interior style. This microphone boasts a proven Sennheiser cardioid capsule that ensures superior speech intelligibility, making it an excellent choice for conference rooms, boardrooms, and other professional settings.

One of the standout features of the MEB 102-L variant is its bi-color LED ring, which provides clear status indication, enhancing its functionality in professional environments. Constructed with a rugged housing, this microphone is built to withstand the demands of frequent use, ensuring longevity and reliability. Additionally, the Sennheiser MEB 102-L B Boundary Cardioid Installation Wired Microphone offers high sensitivity and a wide frequency response, making it a versatile choice for capturing detailed audio in various applications.

Key Features

• Compact and unobtrusive design for seamless integration
• Proven Sennheiser cardioid capsule for superior speech intelligibility
• Rugged housing for durability
• Bi-color LED ring for status indication
• High sensitivity and wide frequency response

Specifications

• Connector: XLR-5, pin assignment: 1 = gnd, 2 = + (Mic +), 3 = – (Mic –), 4 = LED green (trigger signal), 5 = LED red (default)
• Current consumption: 6 mA
• Dimensions: Height: 83.26 in (0.47 in above surface), Diameter 1.12 in
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 125 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 2.05 oz
• Pick-up pattern: omni-directional
• Nominal impedance: 200 Ω
• Phantom powering: P 24 – P 48
• Operating temperature: 32 ° to 104 ° F
• Equivalent noise level: 21 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
• Acoustics: Boundary Layer Microphone
• Dynamic range: 104 dB (A)
• Sensitivity: 16 mV/Pa
• Thread: M 20

Package Contents

• Sennheiser MEB 102-L B Boundary Cardioid Installation Wired Microphone
• User Manual
• Installation Hardware
