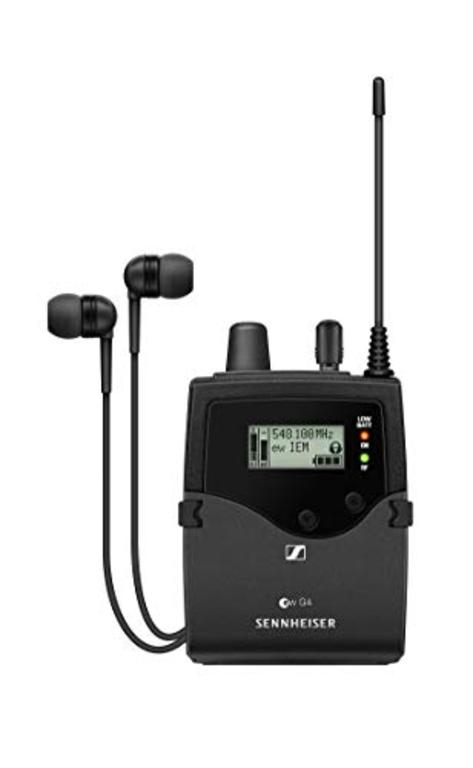

Sennheiser EK IEM G4-G Stereo Bodypack Receiver

The Sennheiser EK IEM G4-G Stereo Bodypack Receiver is engineered to deliver exceptional audio clarity across the entire frequency spectrum, making it an indispensable tool for musicians and sound professionals alike. Designed for daily onstage use, this robust bodypack receiver integrates seamlessly with Sennheiser’s Evolution Wireless G4 In Ear Monitoring systems. Its versatility is reinforced by its multiple frequency ranges, ensuring that it adapts to various environments and regulatory settings.

With an easy and flexible wireless synchronization facilitated by infrared technology, users can pair the transmitter and receiver effortlessly. This bodypack is also compatible with Sennheiser WSM control software, granting users the ability to allocate frequencies with precision and ease. The receiver supports up to 16 compatible channels and offers a substantial bandwidth of up to 42 MHz with 1680 selectable frequencies. Whether performing on a moderately sized stage or a large concert arena, users benefit from an impressive transmission range of up to 100 meters, delivering high RF output power depending on country-specific regulations.

Key Features

• Robust bodypack receiver delivering clarity across the whole frequency spectrum for daily stage use
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Supports up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission range up to 100 meters (300 feet)
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD (Total Harmonic Distortion): ≤ 0.9%
• Weight (including batteries): approx. 125 g
• Signal-to-Noise Ratio: approx. 90 dBA
• Switching Bandwidth: up to 42 MHz
• Peak Deviation: +/- 48 kHz
• Nominal Deviation: +/- 24 kHz
• Operating Time: approx. 4 to 6 hours (depending on volume level)
• Modulation: Wideband FM
• Power Supply: 2 AA batteries (1.5 V) or BA 2015 accupack
• Current Consumption: approx. 140 mA
• Adjacent Channel Rejection: Typically ≥ 65 dB
• Audio Output Power: 2 x 100 mW at 32 OHM
• Intermodulation Attenuation: Typically ≥ 70 dB
• Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
• Receiving Frequency: Max. 1680 frequencies, adjustable in 25 kHz steps
• Operating Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive naversity
• Blocking: ≥ 80 dB

Package Contents

• EK IEM G4 stereo receiver
• 2 AA batteries
• IE 4 earphones
• Quick guide
• Safety guide
• Manufacturer declaration sheet
