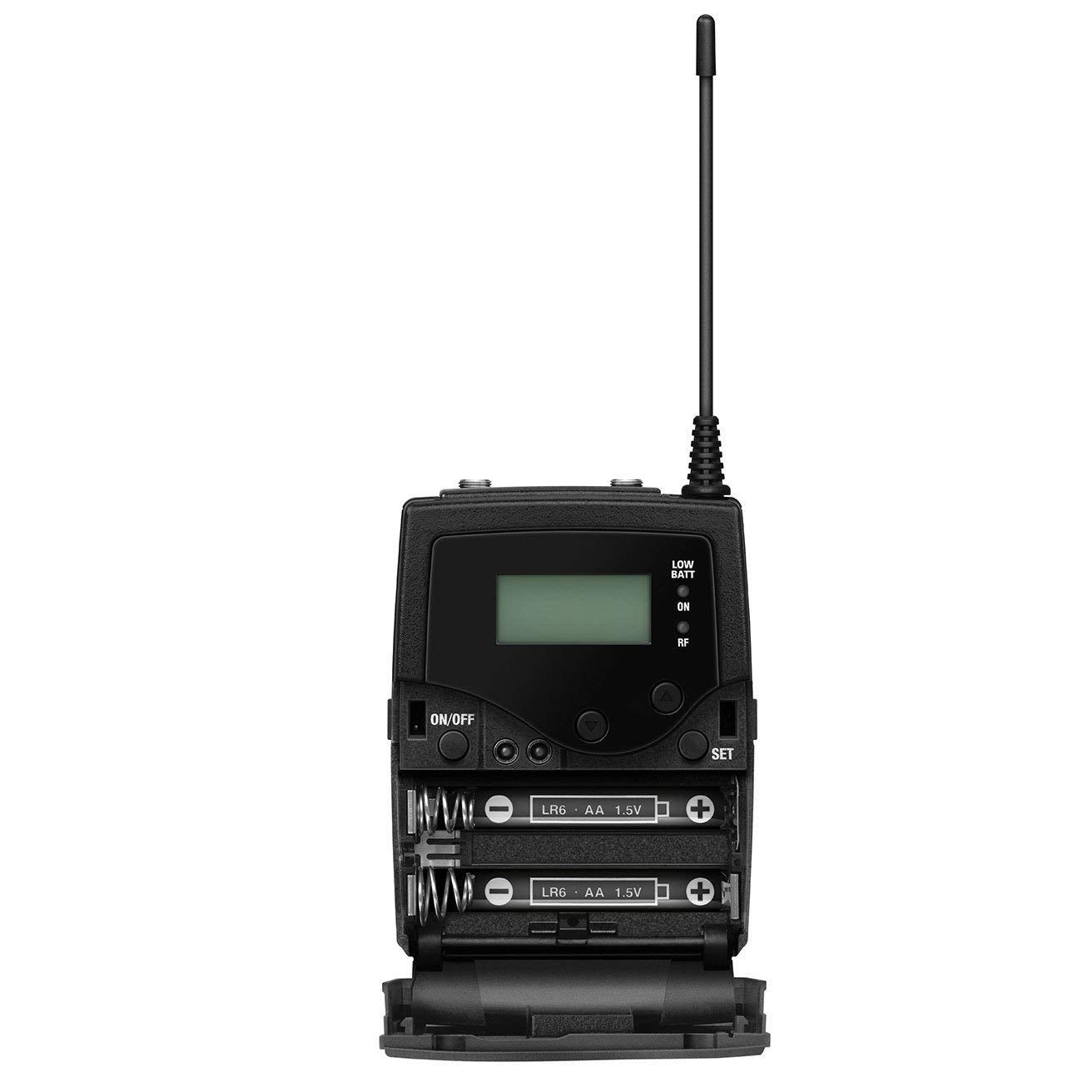

Sennheiser EK 500 G4-GW1 Portable Camera Receiver

The Sennheiser EK 500 G4-GW1 Portable Camera Receiver is a powerful, black camera receiver specifically designed for professional film productions. With its increased bandwidth and transmission power, the EK 500 G4-GW1 excels in providing superior audio quality and reliability, making it a must-have for any serious filmmaker. This compact and versatile receiver can be easily mounted on any type of camera, allowing seamless integration into your existing gear setup. Operating in the 470-608 MHz frequency range, this device ensures crystal-clear sound transmission over an extensive range.

This camera receiver is designed with the user in mind, offering an intuitive setup process and easy-to-use features. The automatic wireless synchronization between the transmitter and receiver via infrared simplifies the initialization process, enabling rapid deployment in various filming environments. With up to 88 MHz of bandwidth and the capability to support up to 32 channels, the EK 500 G4-GW1 provides the flexibility needed for complex productions. Its robust build and increased RF output power ensure reliable performance, even in challenging conditions, providing up to 8 hours of continuous operation per charge.

Key Features

• Professional sound and exceptional construction quality
• Easy to use with a swift setup process
• Automatic and flexible wireless synchronization via infrared
• Wide bandwidth of up to 88 MHz, supporting up to 32 channels
• Operational range up to 100 meters (330 feet)
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• Total Harmonic Distortion: <= 0.9%
• Weight (including batteries): Approx. 130 g
• Audio Output: 3.5 mm jack socket: +17 dBu (mono, unbalanced)
• Signal-to-Noise Ratio: Line: >= 110 dBA, Phones: Approx. 90 dBA
• Switching Bandwidth: Up to 88 MHz
• Peak Deviation: +/-48 kHz
• Nominal Deviation: +/-24 kHz
• Operating Time: Typically 8 hours
• Modulation: Wideband FM
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption: At nominal voltage: typ. 140 mA; with receiver switched off: <= 25 A
• Adjacent Channel Rejection: Typically >= 65 dB
• Intermodulation Attenuation: Typically >= 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving Frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps
• Frequency Banks: 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF Sensitivity: < 1.6 mcgV for 52 dBA eff S/N
• Squelch: Low: 5 dBV, Middle: 15 dBV, High: 25 dBmcgV
• Temperature Range: -10°C to +55°C
• Receiver Principle: Adaptive naversity
• Blocking: >= 70 dB

Package Contents

• EK 500 G4 camera receiver
• 2 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
