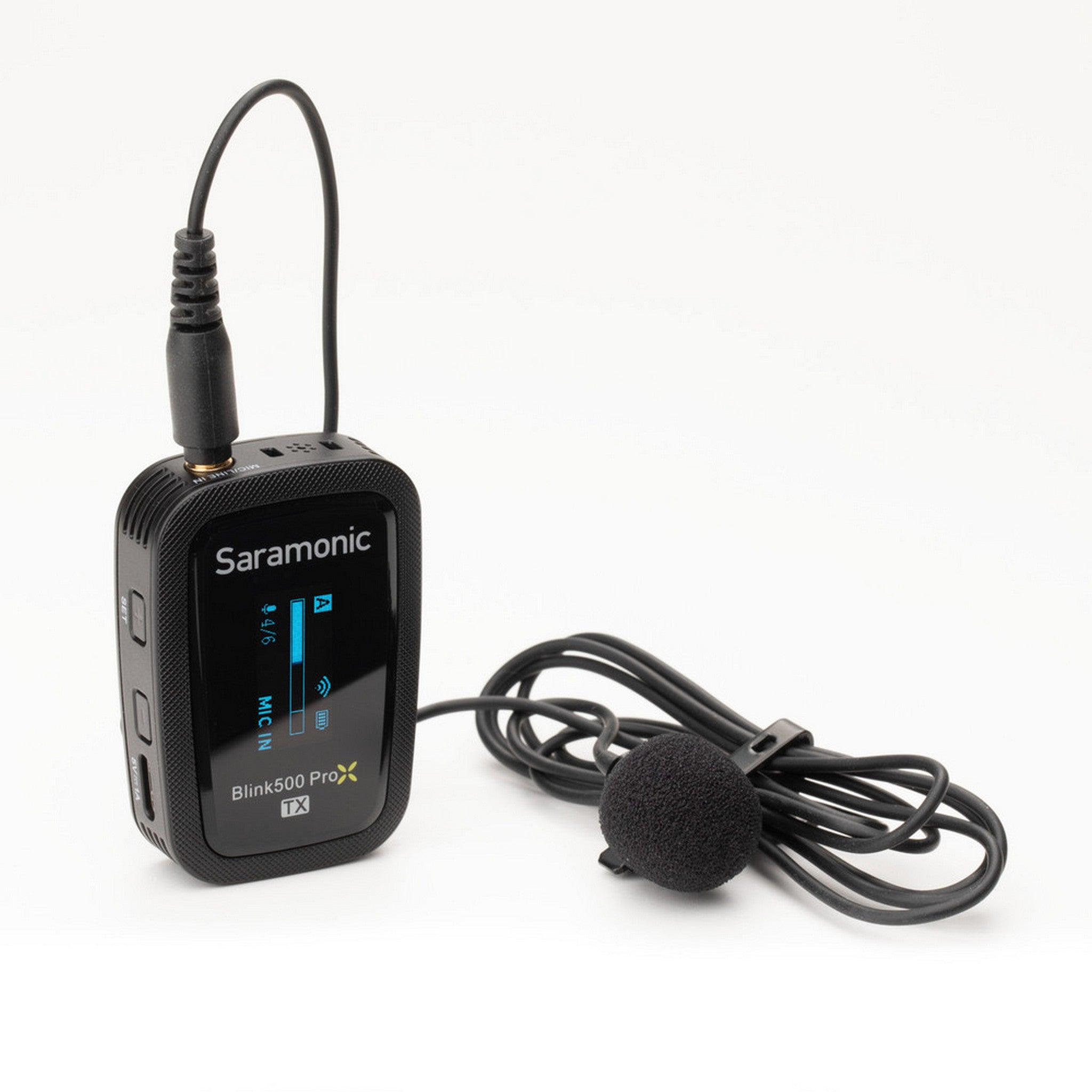

Saramonic Blink 500 ProX TX Clip-On Transmitter & Lavalier for Blink 500 ProX RX, RXDi, and RXUC Receivers

The Saramonic Blink 500 ProX TX Clip-On Transmitter & Lavalier is an essential tool for anyone looking to capture high-quality audio in any environment. Designed to seamlessly pair with the Blink 500 ProX series receivers (RX, RXDi, and RXUC), this versatile wireless transmitter features a compact, user-friendly design that can be clipped onto clothing for hands-free use. Whether you’re recording interviews, podcasts, or presentations, the Blink 500 ProX TX ensures clear, crisp audio with minimal setup and maximum reliability.

This transmitter includes a high-performance lavalier microphone that provides superior sound clarity, even in noisy surroundings. It delivers impressive performance with its ultra-low latency and wide signal range, making it perfect for creators who need reliable wireless audio transmission in dynamic environments. The Blink 500 ProX system operates in the 2.4GHz spectrum, which is widely used for optimal performance across different regions. With easy pairing, a long battery life, and plug-and-play functionality, this system is designed for both beginners and professionals alike.

The compact nature of the Blink 500 ProX TX Clip-On Transmitter means you can take it anywhere, offering mobility without sacrificing sound quality. The lavalier microphone connects directly to the transmitter, ensuring that your voice comes through with clarity and depth, free from the distraction of background noise. The system provides flexibility for various applications, including vlogs, mobile filmmaking, online broadcasting, and more. When paired with the Blink 500 ProX RX receivers, it gives users complete control over their audio setup while maintaining the convenience of wireless transmission.

Key Features:

• Wireless clip-on transmitter with Lavalier microphone for Blink 500 ProX receivers
• Designed for use with Blink 500 ProX RX, RXDi, and RXUC receivers
• Compact, portable, and easy-to-use design
• Operates on the 2.4GHz wireless frequency for clear, interference-free sound
• High-quality lavalier mic included for crystal-clear voice capture
• Plug-and-play setup for quick and hassle-free use
• Long battery life for extended recording sessions
• Ideal for interviews, podcasts, mobile filmmaking, live streaming, and more
• Ultra-low latency and reliable wireless signal

Technical Specifications:

Dimensions
3.5″ x 1.6″ x 0.7″

Weight
1.4 oz

Operating Frequency
2.4GHz

Audio Input
3.5mm TRS microphone input

Transmitter Battery Life
8 hours

Battery Type
Rechargeable Lithium-ion battery

Charging Port
USB-C

Operating Range
98 feet (30 meters)

System Latency
16ms

Frequency Response
20Hz – 20kHz

Signal-to-Noise Ratio
75dB

Microphone Type
Lavalier Condenser Microphone

Microphone Pickup Pattern
Omnidirectional

Compatibility
Compatible with Blink 500 ProX RX, RXDi, and RXUC Receivers

TX Transmitter Specifications:

Transmission Type
2.4GHz Digital Frequency

Modulation
Digital Modulation

Antenna
Built-In FPC Antenna

Operating Range (Without Obstacles)
Up to 328′ (100m)

RF Output Power
<10mW

Frequency Response
20Hz to 20KHz

Reference Audio Input Level
-20~-42dBv (MIC input, 0dB Attenuation)

Input Connector
3.5mm Mic In / Line In (Mic with Plug-in-Power)

Built-in Microphone Polar Pattern
Omnidirectional

Built-in Microphone Maximum SPL
106dB

Built-in Microphone Sensitivity
39±2dB (Tested at 2V 2.2KΩ)

Lavalier Microphone Maximum SPL
120dB

Lavalier Microphone Sensitivity
39+/-2dB (0dB=1V/Pa, 1kHz)

Digital Signal Resolution
16bit / 48kHz

Signal-to-Noise Ratio
≥84dB

Distortion
≤0.1%

High-contrast OLED Screen Resolution
128 x 64 pixels

Other Functions
Tactile Microphone Mute Function

Power Requirements
Built-in Li-ion Battery, USB-C DC 5V or Charging Contact

Battery Life
Approximately 10-hours

Battery Specifications
3.7V / 400mAh

Weight
1.04oz (29.5g)

Dimensions
2.2 x 1.49 x 0.61” (56 × 38 × 15.5mm)

Operating Temperatures
0° to 122°F (0°C to 50°C)

Storage Temperatures
-50° to 122°F (–10°C to +50°C)

SR-M1 Lavalier Microphone Specifications:

Acoustic Principle
Electret Condenser

Polar Pattern
Omnidirectional

Connector
3.5mm

Cable Length
4.1’ (1.25m)

Maximum SPL
110dB

Sensitivity
-39dB+/-2dB(0dB=1V/Pa, 1kHz)

Signal-to-Noise Ratio
≥60dB

THD
<1% (94dB SPL at 1kHz)

Power Requirements
Plug-in-Power (1V～10V)

Standard Operating Voltage
3V

Current Consumption
<500μA

Output Impedance
<2.2KΩ
