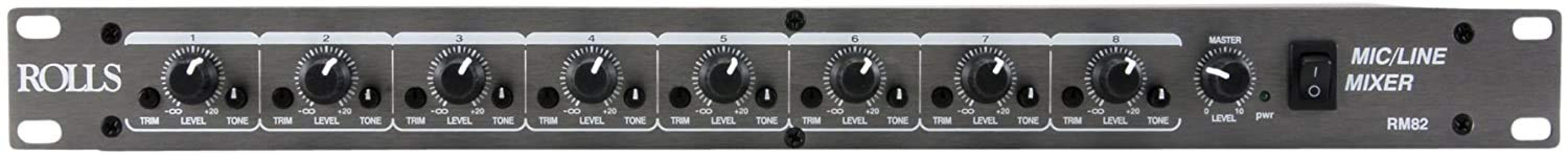

Rolls RM82 8 Channel Mic/Line Mixer

The RM82 is an eight channel mixer in a single rack space intended for a variety of sound reinforcement applications including board rooms, churches, mixing console expansion etc. Virtually any application where up to eight microphones need to be mixed together, and space is limited, is met by the RM82. Each of the eight channels has an XLR microphone input, as well as a 1/4” unbalanced input. The 1/4” jacks may be internally reconfigured to become channel Inserts or Direct Outputs. Inserts provide a way to get each innavidual channel signal in and out of the RM82 mainly for processing purposes. A Direct Output is simply taking the signal from the channel only. Each channel has innavidually switchable +48 VDC phantom power. The RCA Prefade (pre Master Level) Output may be connected to the RCA Aux Buss Input for cascading two RM82 units together. This Output may also be used for recording purposes, and the Aux Buss Input . The Main output for the RM82 is a balanced male XLR jack. This output may be internally jumpered for a Line or Mic level.

Key Features

• Eight XLR microphone inputs
• Trim controls
• Tone controls (treble/bass cut)
• Innavidually switchable +48 VDC phantom power
• Eight 1/4” unbalanced inputs, each may be internally jumpered to become an Insert or a Direct Output
• RCA Prefader (pre Master Vol.) Output for recording, monitoring or cascading
• RCA Aux Buss Input for cascading, or as a ninth unbalanced input
• Mic or Line output level

Technical Specifications

Input Impedance
Mic: 10K Ohms XLR balanced 1/4”: 20K Ohms unbalanced Bus Input: 10K Ohms unbalanced
Max Input Level
Mic: 0 dBV balanced Line: +6 dBV
Input Connectors
8: XLR, 8: 1/4” (Line), 1: RCA (Bus input)
Outputs
XLR bal., RCA unbalanced Prefade out
Max Gain
Mic: 55 dB Line: 26 dB
Tone Control
12 dB Treble/Bass cut
Phantom Power
+48 VDC
Output Level
+22 dBV max
Output Impedance
51 Ohms
Phase Shift
<10 degrees, 20Hz to 20 kHz
Max S/N ratio
106 dB
THD
<.009%
CMRR
>80 dB (Mic)
Size
19” x 1.75” x 6” (48.3 x 4.5 x 15 cm)
Weight
7 lbs. (3 kg)
